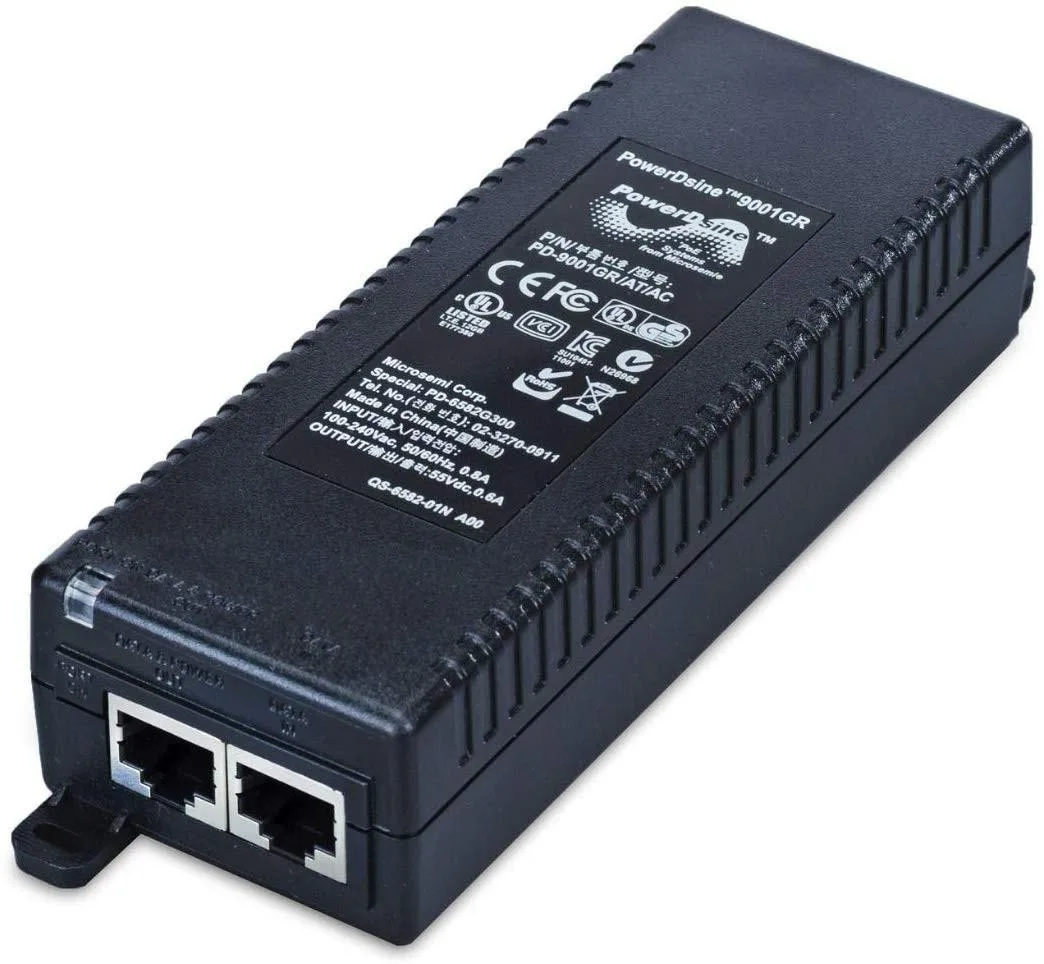

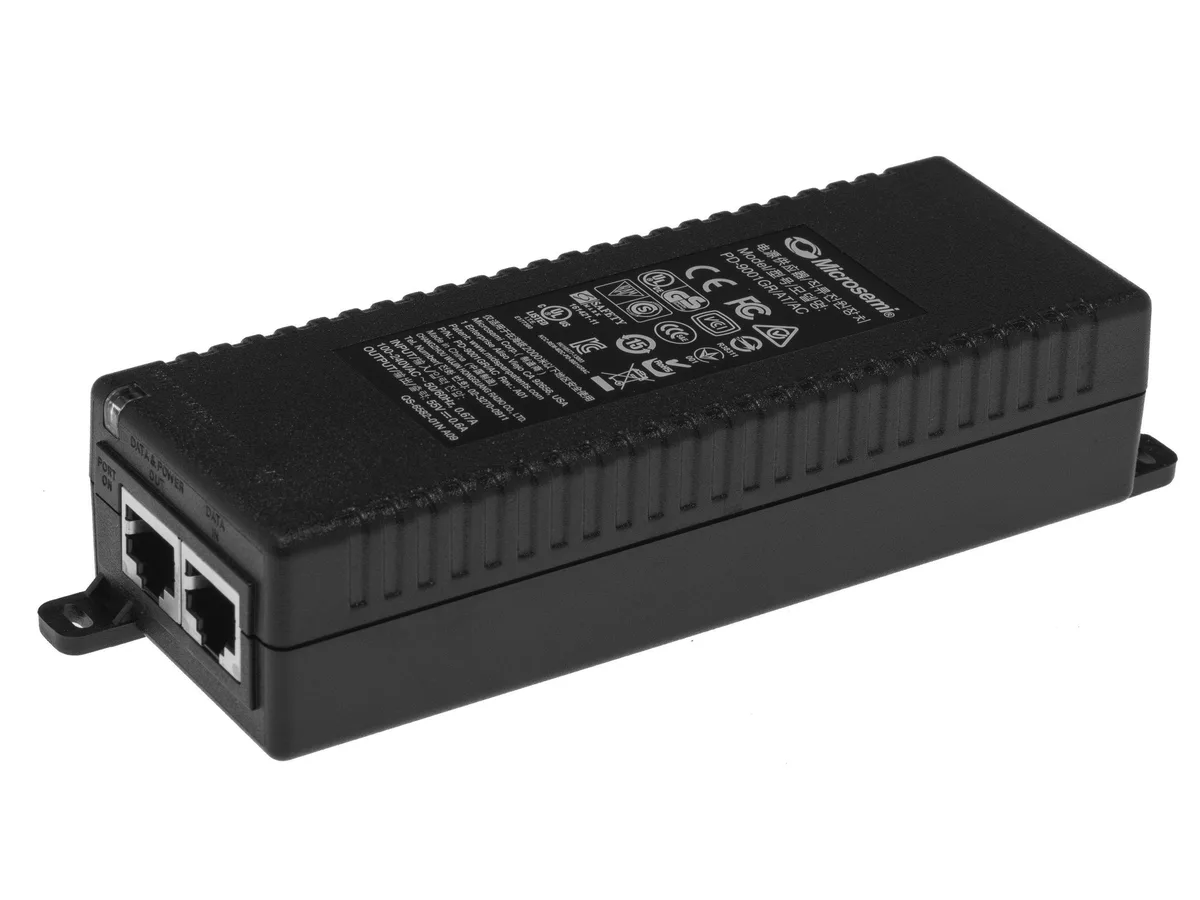

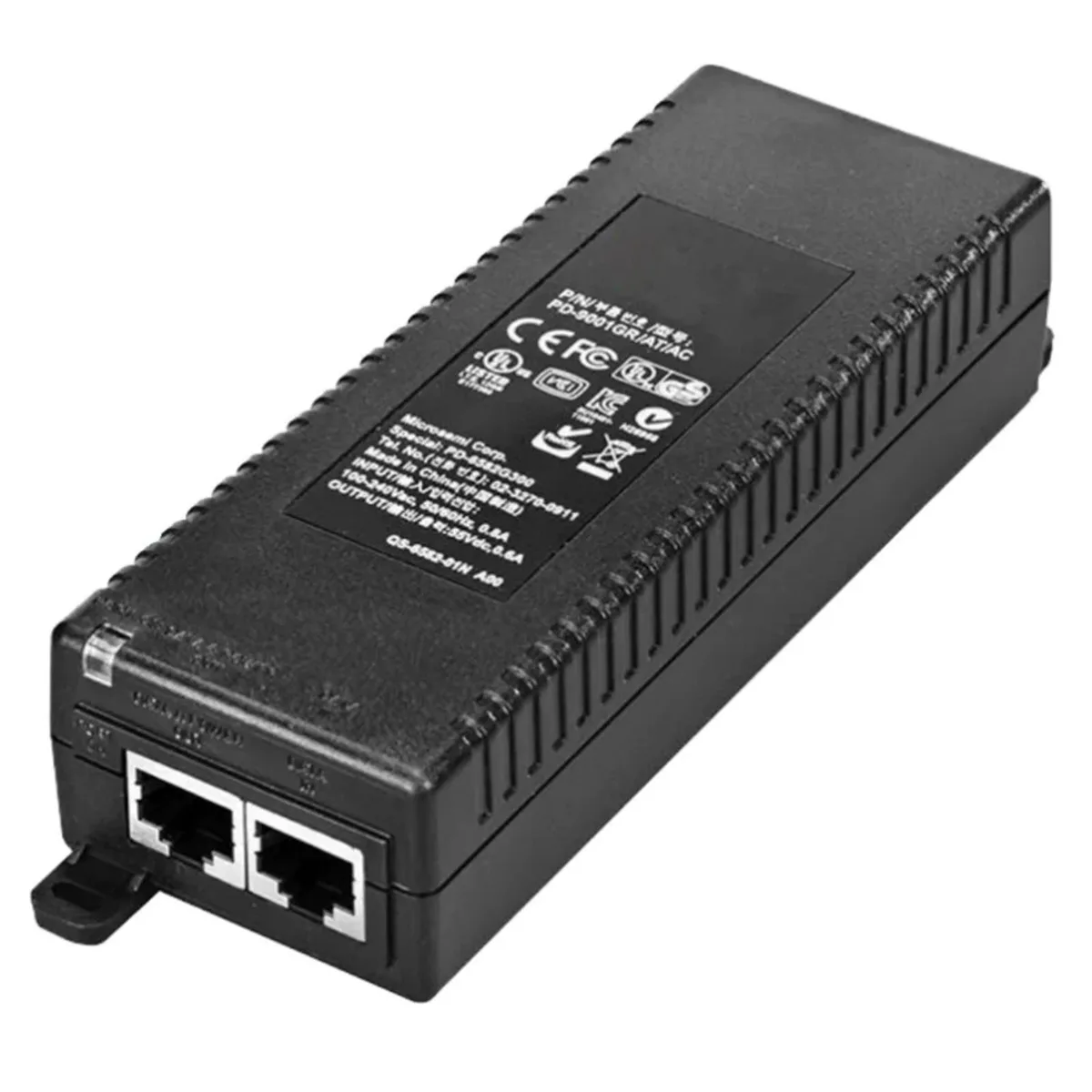

Single-port PoE injector with AC power inlet, compact rectangular shape, matte black finish

Microsemi

Microsemi PD-9001GR/AT/AC 30W PoE injector

SKU CH-GMQ8-F3QWV MPN PD-9001GR/AT/AC

Delivers up to 30 W over Gigabit Ethernet to power access points, PTZ cameras or VoIP phones from a 120 V or 230 V AC supply

  • TypeAccessories
  • Delivers up to 30W for high-power devices
  • IEEE 802.3at compliant with 802.3af backward compatibility
  • Powers 10/100/1000Base-T network equipment
  • Accepts 120 V AC and 230 V AC input
  • Compact single-port design suits AP and camera installs

Single-port 30 W PoE injector

The Microsemi PD-9001GR/AT/AC is a single-port midspan injector that delivers up to 30 W over Ethernet cabling. It targets installers powering 802.11n access points, PTZ cameras or video-phones from a standard AC outlet. The unit accepts 120 V or 230 V input and provides power to one compatible device.

30 W capacity and headroom

The injector guarantees 30 W output for IEEE 802.3at Class 4 devices such as pan-tilt-zoom cameras and wireless access points. It remains backward compatible with 802.3af equipment, supplying only the power those devices request. The 30 W limit means it cannot support higher-power PoE++ or multi-port installations.

Gigabit Ethernet and 802.3at limits

Data passes through at 10, 100 and 1000 Mbps, so Gigabit-capable access points and cameras operate at line rate. The IEEE 802.3at standard caps delivered power at 30 W and uses two-event classification, which prevents non-standard terminals from drawing excess current. Longer cable runs or daisy-chained devices exceed the standard's reach and power budget.

Highlights

  • Delivers up to 30W for high-power devices
  • IEEE 802.3at compliant with 802.3af backward compatibility
  • Powers 10/100/1000Base-T network equipment
  • Accepts 120 V AC and 230 V AC input
  • Compact single-port design suits AP and camera installs

Specifications

BrandMICROSEMI POE SYSTEMS
TypeAccessories
Shipping weight0.49 kg
Package size381 × 254 × 210 mm

Questions about this item

Will this injector work with my existing 10/100Base-T access point?

Yes, it is backward compatible with IEEE 802.3af devices and supports 10/100Base-T network equipment alongside 1000Base-T gear.

How can I confirm the unit is delivering power correctly once installed?

The injector performs automatic detection and 2-event classification so connected devices receive only the power they require, up to the 30W guaranteed output.

Does the package include Ethernet patch cables or must I supply them?

The injector provides a single Gigabit data-and-power port and accepts 120 V or 230 V AC input; network cables are not included.
