Microsemi

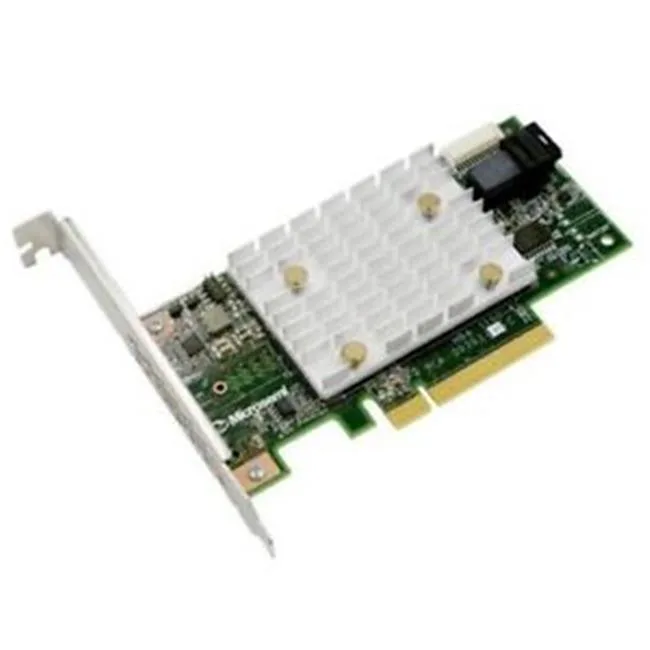

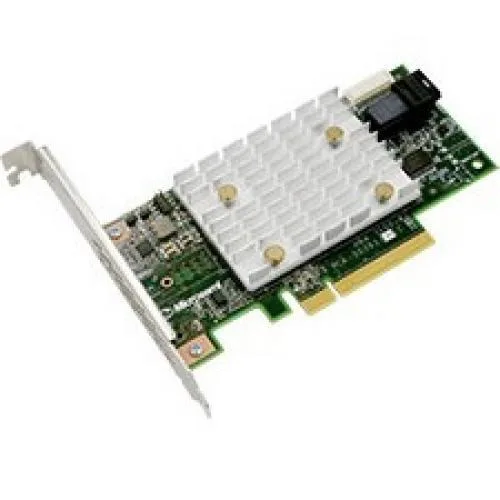

Microsemi 2293400-R 1100-4i 12Gb/s SAS RAID controller
Four-port 12Gb/s SAS RAID controller with one SFF-8643 mini-SAS HD connector supporting SAS and SATA drives on Windows, Linux and VMware ESXi
- Part2293400-R
- Form FactorFull & Low Profile
- TypeConsumer Electronics
- Internal Connectors1 x SFF-8643 mini-SAS HD
- Transfer RateUp to 12Gb/s
- Operating Systems SupportedMicrosoft Windows Red Hat Linux SUSE Linux CentOS Ubuntu Lin
- Connect up to four drives via one SFF-8643 connector
- Transfer data at 12Gb/s over SAS or SATA links
- Fits full-height or low-profile slots with 2.54" x 6.60" dimensions
- PCI Express 3.0 x8 host interface delivers high I/O throughput
- RoHS certified for environmentally responsible deployment
Microsemi 1100-4i 12Gb/s SAS HBA
The Microsemi 2293400-R is a 12Gb/s SAS host bus adapter that connects up to four SAS or SATA drives through a single SFF-8643 mini-SAS HD internal connector. It installs in a PCI Express 3.0 x8 slot and includes both full-height and low-profile brackets for flexible chassis fit. The card operates without embedded hardware RAID, presenting drives directly to the operating system for software-defined storage configurations.
Suits direct-attached storage builders.
This adapter suits administrators who want the operating system or a hypervisor to manage storage redundancy and performance. It supports Microsoft Windows, Red Hat Linux, SUSE Linux, CentOS, Ubuntu Linux and VMware ESXi, making it a fit for heterogeneous server farms. Buyers who require on-board RAID 0, 1, 5 or 10 acceleration should look at a controller with an embedded RAID processor instead.
Verify PCIe 3.0 x8 slot and SFF-8643 cabling
Before ordering, confirm the host system has an available PCI Express 3.0 x8 slot and sufficient physical clearance for a card measuring 2.54 by 6.60 inches. Ensure the backplane or drive cages use SFF-8643 mini-SAS HD connectors, or source compatible breakout cables for the four internal ports. The board is RoHS compliant and rated for standard server operating environments.
Highlights
- Connect up to four drives via one SFF-8643 connector
- Transfer data at 12Gb/s over SAS or SATA links
- Fits full-height or low-profile slots with 2.54" x 6.60" dimensions
- PCI Express 3.0 x8 host interface delivers high I/O throughput
- RoHS certified for environmentally responsible deployment
Specifications
| Brand | Microsemi |
|---|---|
| Series | 1100-4i |
| Model | 1100-4i |
| Part | 2293400-R |
| Form Factor | Full & Low Profile |
| Type | Consumer Electronics |
| Internal Connectors | 1 x SFF-8643 mini-SAS HD |
| Transfer Rate | Up to 12Gb/s |
| Operating Systems Supported | Microsoft Windows Red Hat Linux SUSE Linux CentOS Ubuntu Linux VMware ESXi |
| Dimensions | 2.54" x 6.60" (H x L) |
| Features | Ideal for high performing I/O solutions supporting SAS / SATA HDDs and SSDs requiring maximum connectivity. |
| Package Contents | Microsemi Adaptec HBA 1100-4i adapter Additional low profile vented bracket |
| Internal Ports | 4i |
| Embedded hardware RAID | No |
| Package | Single |
| Shipping weight | 0.34 kg |
| Package size | 368 × 241 × 51 mm |
Questions about this item
What PCI Express slot generation and lane count does the 1100-4i need?
The controller requires a PCI Express 3.0 x8 slot for full 12Gb/s operation.
Can the 1100-4i connect to my existing 6Gb/s SAS drives?
Yes, the 12Gb/s SAS ports are backward compatible with 6Gb/s and 3Gb/s SAS or SATA drives.
How do I confirm the 1100-4i is running at 12Gb/s after installation?
Check the adapter BIOS or OS driver utility; it will report a negotiated link speed of 12Gb/s for each attached drive.
