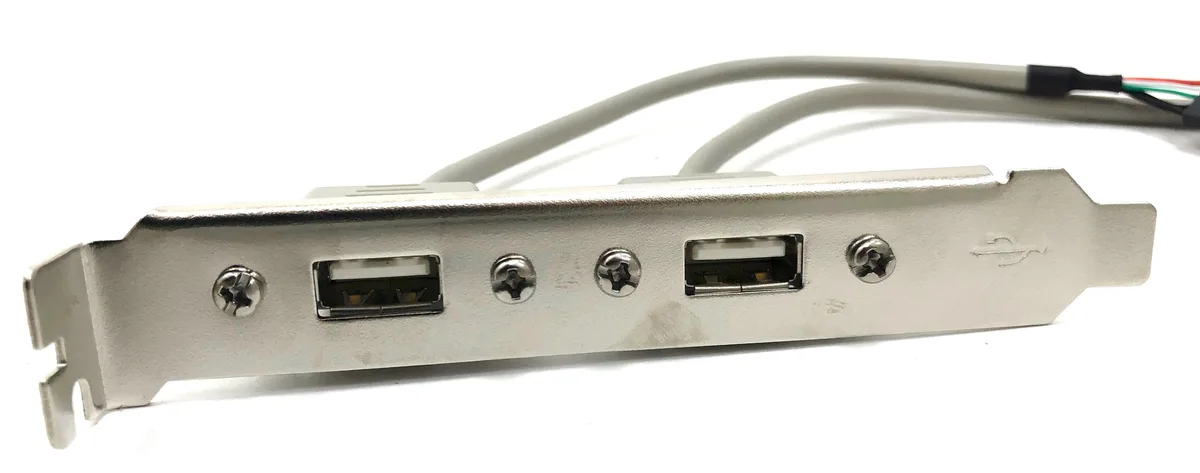

Gray USB 2.0 bracket with two Type-A ports and two 5-pin headers

Micro Connectors

Micro Connectors USB 2.0 2 Ports PC Expansion Slot Bracket Gray

SKU CH-Y8FY-B7TKQ

Adds two USB 2.0 Type-A ports to a PC via an expansion-slot bracket with dual 5-pin motherboard headers

  • Connector Type2xUSB female to 2x5-pin
  • ColorGray
  • Adds two USB 2.0 ports to a desktop PC
  • Connects via two internal 5-pin motherboard headers
  • Fits a standard ATX expansion slot bracket
  • Provides two Type-A female connectors for peripherals
  • Gray finish matches common case interiors

Two-Port USB 2.0 Expansion Bracket

This bracket adds two external USB Type-A ports to a desktop PC by occupying a rear expansion slot. It connects to two internal 5-pin MPC-5 headers on the motherboard, providing a simple way to increase front-access connectivity.

Suited for owners of older ATX cases needing extra

Builders restoring legacy systems or upgrading an older chassis will find this bracket matches the 5-pin header layout common on boards from that era. Systems whose motherboards only offer newer 9- or 10-pin USB headers cannot use this bracket without a separate adapter.

Dual 5-pin MPC-5 header requirement

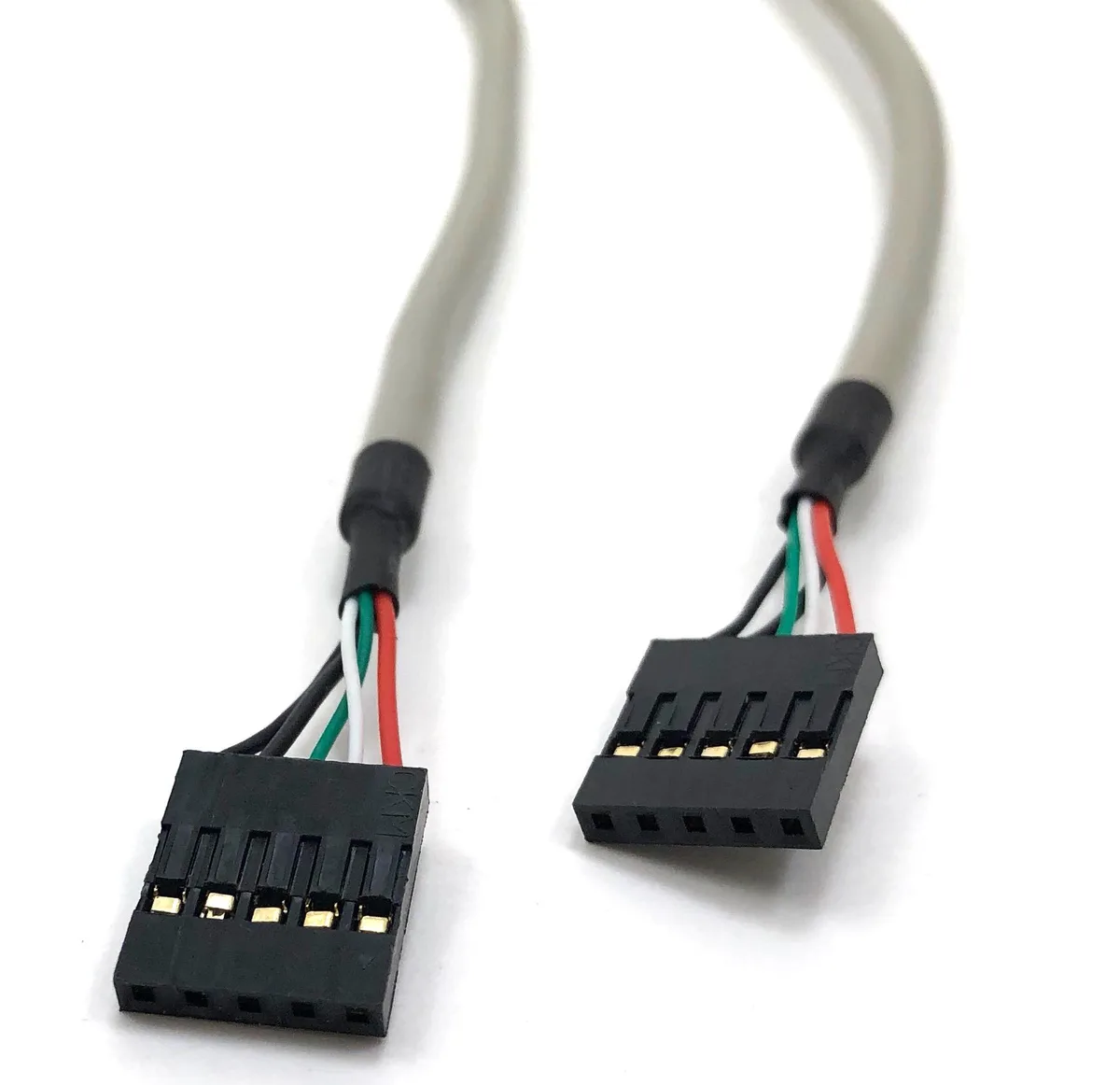

The bracket terminates in two distinct 5-pin connectors labelled MPC-5; both must plug into matching headers on the mainboard. If the board lacks two free 5-pin headers of this specific pin-out, the bracket will not function.

Highlights

  • Adds two USB 2.0 ports to a desktop PC
  • Connects via two internal 5-pin motherboard headers
  • Fits a standard ATX expansion slot bracket
  • Provides two Type-A female connectors for peripherals
  • Gray finish matches common case interiors

Specifications

Connector Type2xUSB female to 2x5-pin
ColorGray

Questions about this item

What motherboard header do I need to connect this bracket?

The bracket uses two MPC-5 5-pin headers on the motherboard to provide the two USB Type-A ports.

Can I use this with a motherboard that only has USB 3.0 internal headers?

This bracket connects to MPC-5 5-pin headers, not standard USB 3.0 internal headers, so it will not work with USB 3.0-only boards.

How do I verify the ports are running at USB 2.0 speed after installation?

Plug a device into either port and check the operating system's device manager or system profiler to confirm the connection is listed as USB 2.0 or High Speed.
