Micro Connectors MSP-MINI9P. 90 degree Mini USB to 9 pin motherboard cable 2 ft black

Internal front-panel connector

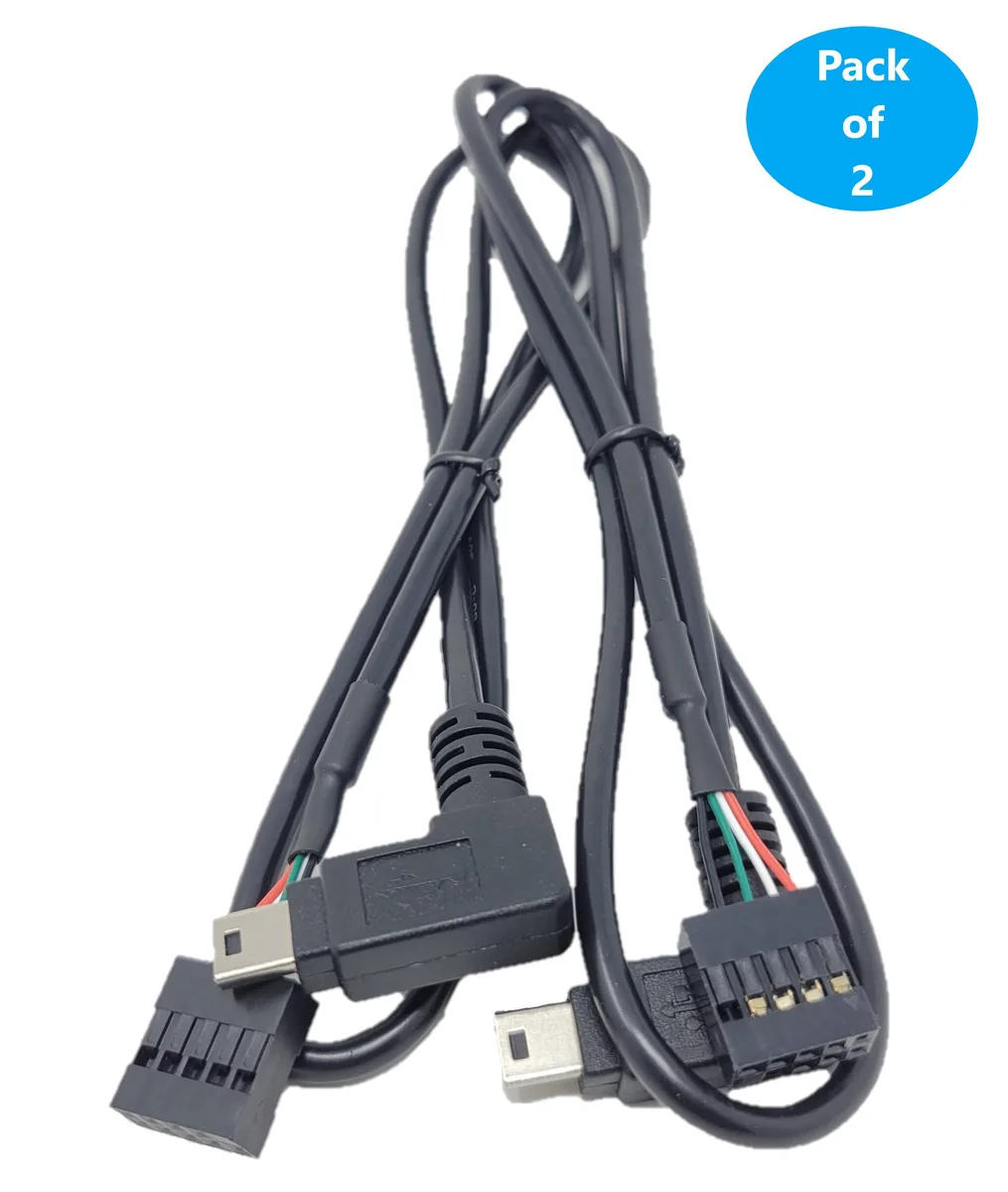

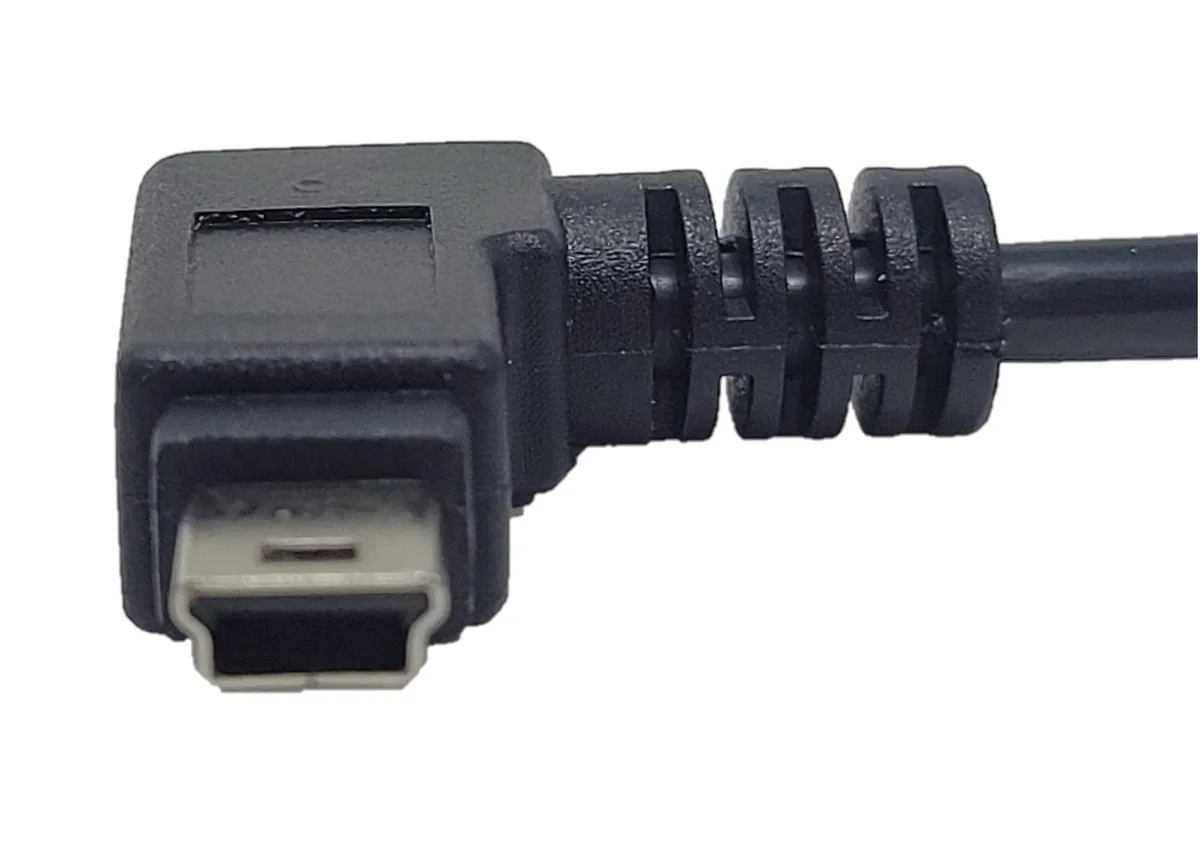

This two-pack supplies a Mini USB 90-degree right-angle male plug on one end and a nine-pin motherboard header socket on the other. The right-angle design keeps the cable close to the board, helping route it behind drive cages or along tight chassis walls. Each cable measures two feet and is finished in black. Builders adding front-panel USB ports or card-reader modules will find the pin-out matches standard nine-pin headers.

Upgrade from straight headers

Replaces a straight Mini USB header cable that blocks adjacent connectors or forces a sharp bend at the socket. The ninety-degree turn clears tall components such as large CPU coolers or graphics-card backplates that sit over the header row. The improvement is worthwhile whenever the straight cable cannot be seated without stress or when cable routing must stay within a narrow channel behind the motherboard tray.

Limits of the nine-pin header

The nine-pin motherboard header carries only the signals and power defined by the USB 2.0 specification, so bandwidth tops out at high-speed rates. Cable length is fixed at two feet; longer runs would require an active repeater or a different header-to-port assembly. The connector cannot deliver the increased current or signalling speeds of later USB revisions, so devices that negotiate higher power or SuperSpeed modes will fall back to basic operation.
