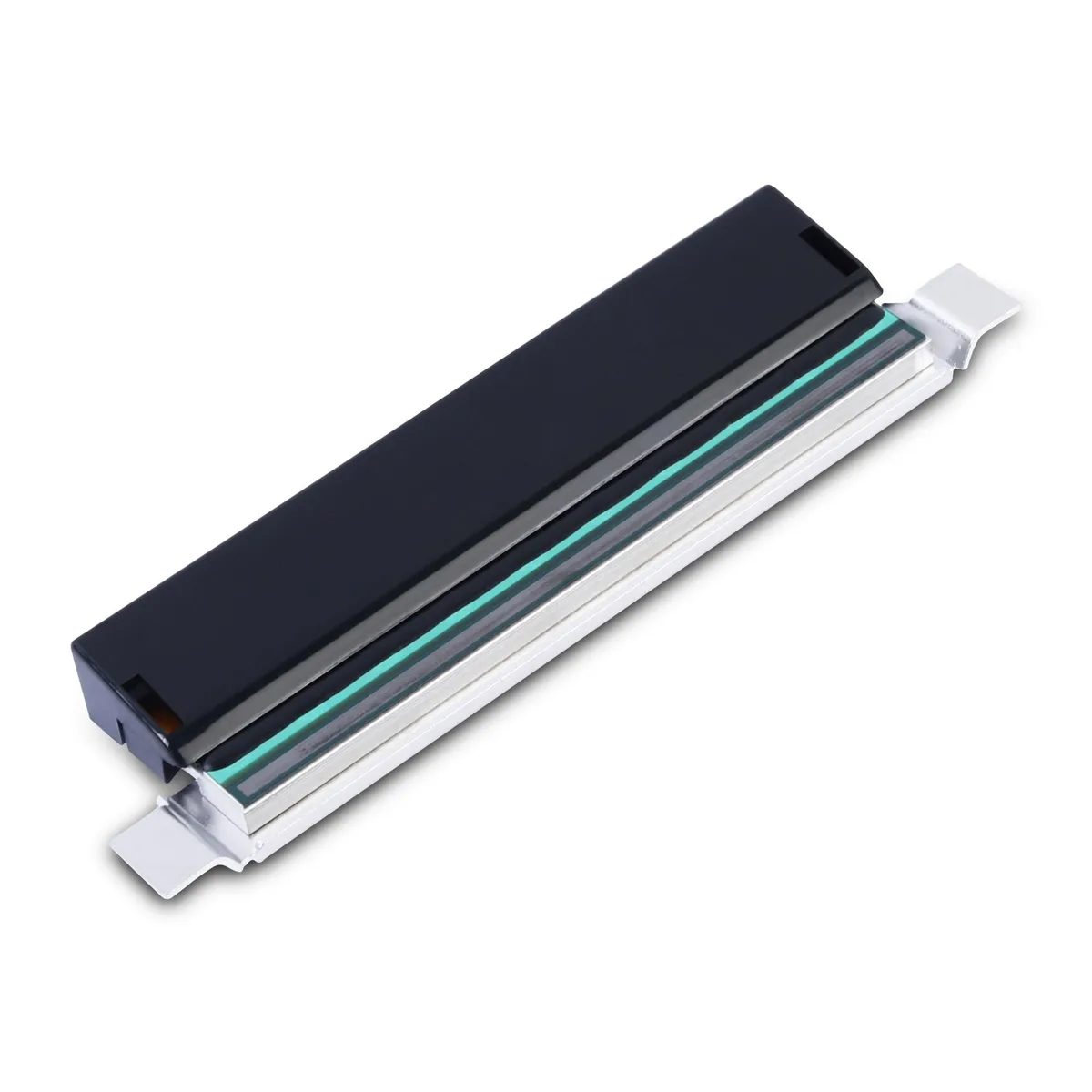

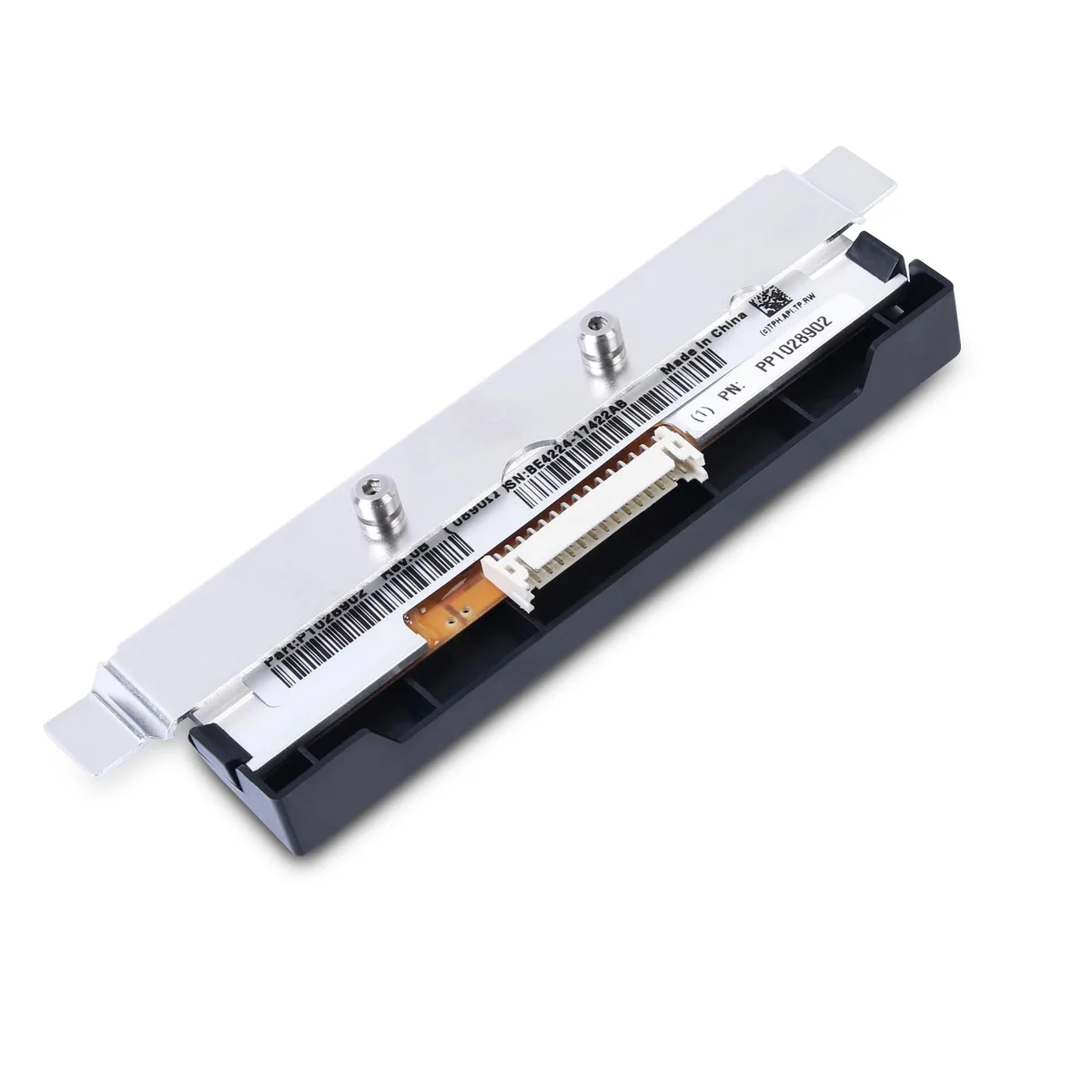

Rectangular thermal print head with silver metal housing and exposed ceramic element, new condition

Merge Games

Merge Games Thermal Print Head 203DPI P1037974-010 Barcode

SKU CH-W8FZ-KMDE9

Replacement 203 DPI thermal printhead compatible with Zebra ZT200, ZT210, ZT220 and ZT230 label printers

  • Compatible with ZT200, ZT210, ZT220, ZT230 203DPI printers
  • 203DPI resolution produces sharp barcode and label output
  • Supports both direct thermal and thermal transfer printing
  • Works with wax, mixed and resin ribbons for flexible media
  • New genuine printhead replaces part number P1037974-010

Compatible Thermal Print Head 203 DPI

This thermal print head replaces part number P1037974-010 in Zebra ZT200, ZT210, ZT220 and ZT230 printers that operate at 203 DPI. It supports both direct thermal and thermal transfer printing on thermal or coated paper using wax mixed or resin ribbon.

Installation Notes

The print head fits printers with parts numbers ending in 21042, 22042 or 23042. Do not install in 300 DPI models carrying parts numbers ending in 21043, 22043 or 23043 as the head will not fit. Ensure the printer is powered off and cooled before swapping the head.

Pre-Order Checklist

Confirm your printer model is a ZT200, ZT210, ZT220 or ZT230 rated at 203 DPI. Verify the printer parts number ends with 42 rather than 43 to avoid ordering an incompatible head. Check that your media and ribbon type match the supported direct thermal, thermal transfer, wax mixed or resin specifications.

Highlights

  • Compatible with ZT200, ZT210, ZT220, ZT230 203DPI printers
  • 203DPI resolution produces sharp barcode and label output
  • Supports both direct thermal and thermal transfer printing
  • Works with wax, mixed and resin ribbons for flexible media
  • New genuine printhead replaces part number P1037974-010

Specifications

No published specifications for this item yet.

Questions about this item

How do I confirm the 203 DPI print head is working correctly after installing it in my ZT210?

Print a test label and check that barcodes and text are sharp at 203 DPI; the printer should feed thermal or coated paper smoothly and accept wax, mixed or resin ribbon without errors.

What comes with the P1037974-010 print head and what must I source separately?

The box contains only the 203 DPI thermal print head; you will need to supply compatible thermal or coated labels and a wax, mixed or resin ribbon for thermal-transfer printing.

My Zebra label printer has a parts number ending in 22043 — which version should I choose?

A parts number ending in 22043 indicates a 300 DPI model; this P1037974-010 head is for 203 DPI printers (parts numbers ending in 21042, 22042 or 23042) and will not fit.
