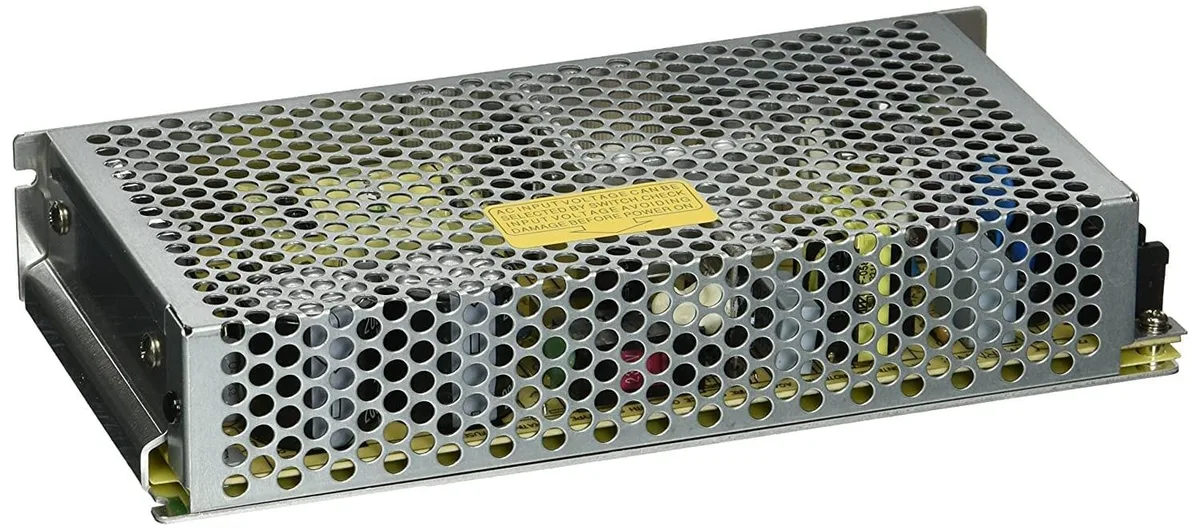

Mean Well RS-150-24 24V 6.5A 156W switching power supply unit

Mean Well

Mean Well RS-150-24 2 in 1 accessory 24V 6.5A 156W

SKU CH-7258-0RPZY

24V 6.5A switching supply delivers 156W with short-circuit, overload and over-voltage protection, free-air convection cooling, power-on LED, 100% burn-in test, 105°C capacitors.

  • Delivers 156 W continuous power at 24 V 6.5 A
  • Built-in short-circuit overload and over-voltage safeguards
  • Free-air convection cooling runs silently without fans
  • 105 °C electrolytic capacitors rated for long service life
  • Withstands 300 VAC surge input for 5 seconds

Power supply for 24 V devices

The Mean Well RS-150-24 is a 156 W switching power supply that delivers 24 V at 6.5 A from a 230 V AC input. It suits integrators and technicians who need a compact DC source for embedded boards, LED strips or industrial modules.

Mounting and connections

The unit weighs 0.7 kg and relies on free air convection, so it requires open space around the chassis rather than forced airflow. Screw terminals accept standard hook-up wire, freeing the builder from proprietary cables or adapter boards.

Thermals and reliability

All capacitors are rated to 105 °C and the supply survives ambient temperatures up to 70 °C at full load. A 300 V AC surge tolerance for five seconds and a 5 G vibration rating protect against line transients and mechanical shock, while the power-on LED confirms operation at a glance.

Highlights

  • Delivers 156 W continuous power at 24 V 6.5 A
  • Built-in short-circuit overload and over-voltage safeguards
  • Free-air convection cooling runs silently without fans
  • 105 °C electrolytic capacitors rated for long service life
  • Withstands 300 VAC surge input for 5 seconds

Specifications

No published specifications for this item yet.

Questions about this item

How much continuous power can the RS-150-24 deliver before its overload protection engages?

The unit is rated for 156 W continuous output at 24 V and 6.5 A, with overload protection built in.

What temperature can the supply reach when it runs all day in a closed cabinet?

It is rated for an operating temperature up to 70 °C and uses free-air convection cooling with no fan.

What AC mains voltage must be present at the installation site for this supply to operate?

The input is specified for 230 V AC, so the site must provide that nominal voltage.
