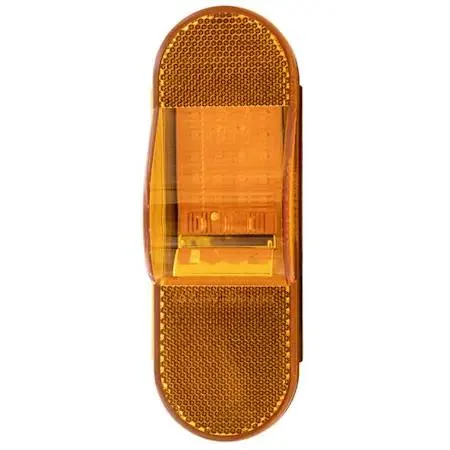

Oval amber LED side turn light with built-in reflector, surface grommet mount, IP67 rated

Maxxima

Maxxima M63121YDF oval amber side turn light with reflector

SKU CH-R2GW-ZNHEB

Oval amber LED side turn light with built-in reflector meets SAE J2039 and J592E standards, rated IP67 for vehicle classes 1 through 8

  • LED marker light with built-in reflector for side visibility
  • Meets SAE J2039 and J592E standards for vehicle classes 1-8
  • IP67 rated against dust and water ingress
  • Operates at 25 mA and 540 mA current draw
  • Surface mount with grommet and dry-fit connector

Oval amber side turn light with reflector

The Maxxima M63121YDF is an LED marker light designed for surface mounting on vehicles in classes one through eight. Its oval amber lens and built-in reflector meet SAE J2039 and SAE J592E standards for side turn signal use. The IP67 rating confirms protection against dust and temporary immersion.

Grommet mount with dry fit and Weather Pack

Installation uses a grommet mount style that fits into a prepared panel opening without external brackets. Two electrical connection options are provided: a dry fit connector and a Weather Pack connector, allowing integration with existing vehicle wiring harnesses. The low current draw of 25 mA and 540 mA reduces load on the electrical system.

Sealed LED construction for harsh environments

The fully sealed housing achieves an IP67 rating, preventing water and dust ingress during normal operation. LED technology produces minimal heat compared to incandescent alternatives, keeping the lens surface cool. No moving parts or filaments are present, so vibration resistance is inherent to the design.

Highlights

  • LED marker light with built-in reflector for side visibility
  • Meets SAE J2039 and J592E standards for vehicle classes 1-8
  • IP67 rated against dust and water ingress
  • Operates at 25 mA and 540 mA current draw
  • Surface mount with grommet and dry-fit connector

Specifications

BrandMAXXIMA

Questions about this item

At what current draw does the LED circuit reach its upper limit during continuous operation?

The lamp operates at 25 mA on the marker circuit and 540 mA on the turn circuit, so the higher 540 mA figure is the limit seen first under sustained use.

How much heat or noise does the sealed LED assembly produce when left on all day?

The solid-state LED design generates minimal heat and no audible noise, while the IP67-rated housing keeps moisture and dust out during extended operation.

Which grommet and connector must already be on the vehicle for this light to install and function?

A standard oval grommet opening and a Weather Pack dry-fit connector are required for the surface-mount housing and electrical connection.
