MAXTECH
MAXTECH LKLE13011-26D Satin Chrome Grade 2 Entry Lever Door Lock
Grade 2 cylindrical lever lockset with 50° lever travel, reversible latchbolt and Schlage-compatible rekeying for commercial entry doors
- FinishSatin Chrome
- TypeLever
- Backset2-3/4"
- GradeGrade 2
- KeyingKeyed Different
- Number of Pins6 Pin Tumbler
- Grade 2 commercial strength for heavy-duty entry doors
- ADA-compliant angled lever with 50° travel for barrier-free access
- Non-handed design fits left- or right-hand doors
- Rekeyable cylinder accepts Schlage, Arrow, Marks and other major keyways
- Standard 161 prep with 2-3/4" backset simplifies installation

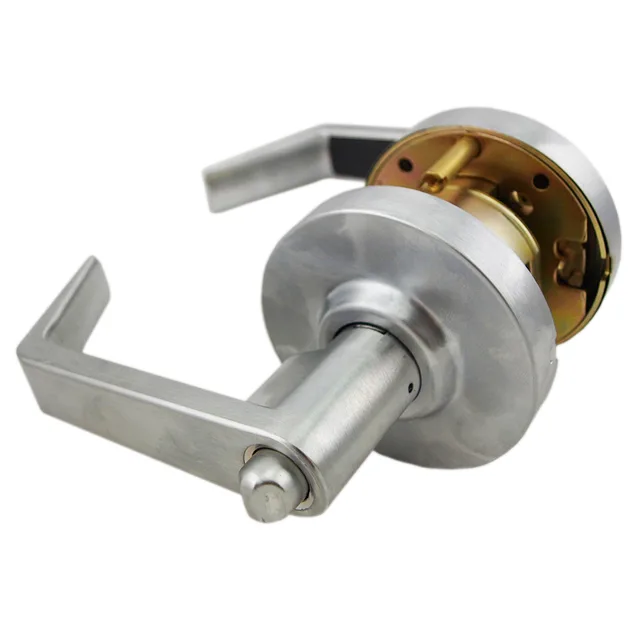

Satin Chrome Grade 2 Entry Lever Lock
The MAXTECH LKLE13011-26D is a commercial-grade cylindrical lockset designed for entrance doors in offices, shops and public buildings. Its ADA-compliant angled lever meets barrier-free requirements while the Grade 2 rating confirms durability for medium-traffic use. The satin chrome US26D finish resists corrosion in interior environments.
Six-pin SC4 keyway with broad cylinder compatibility
The lock ships with a six-pin tumbler cylinder keyed different and two keys per unit. It accepts Schlage, Arrow, Marks, AWI, Lori, Falcon, ASSA and most Medeco cylinders, allowing easy rekeying to existing master-key systems. The 2-3/4" backset fits standard 161 door preparation without modification.
Heavy-gauge corrosion-treated case
A cold-rolled steel case and wrought brass or bronze front and strike plates provide structural strength. Separate spring cartridges for inside and outside levers prevent arm sag and keep levers horizontal after 50° of travel. The non-handed design suits left- or right-hand doors 1-3/8" to 1-3/4" thick, with 2" lever clearance and 3/8" return to the door face.
Highlights
- Grade 2 commercial strength for heavy-duty entry doors
- ADA-compliant angled lever with 50° travel for barrier-free access
- Non-handed design fits left- or right-hand doors
- Rekeyable cylinder accepts Schlage, Arrow, Marks and other major keyways
- Standard 161 prep with 2-3/4" backset simplifies installation
Specifications
| Brand | Maxtech |
|---|---|
| Model | LKLE13011-26D |
| Finish | Satin Chrome |
| Type | Lever |
| Backset | 2-3/4" |
| Grade | Grade 2 |
| Keying | Keyed Different |
| Number of Pins | 6 Pin Tumbler |
| Style | Single Cylinder |
| Function | Entry |
Questions about this item
Will the 2-3/4" backset match the standard 161 door prep already cut in my older doors?
Yes, the lock fits the standard 161 preparation with a 2-3/4" backset and 2-1/8" bore, so it drops into existing cutouts on wood or metal doors 1-3/8" to 1-3/4" thick.
How can I verify the lever action is correct after installation?
Press the inside button to lock the outside lever; the outside lever should then stay rigid while the inside lever operates the latch freely, and the latchbolt should throw a full 1/2" when turned.
Does the box include a cylinder compatible with my existing SC4 keys or must I order one separately?
The lockset ships with a 6-pin SC4 keyway cylinder and two keys; it also accepts Schlage, Arrow, Marks, AWI, Lori, Falcon, ASSA and most Medeco cylinders if you prefer to rekey later.
