Satin chrome mortise cylinder, 2 inch brass body, standard cam, Schlage SC1 keyway

MAXTECH

MAXTECH B2SC1-26D 2" mortise cylinder door lock, satin chrome, SC1 keyway

SKU CH-AN21-TF1RA MPN B2SC1-26D

Solid brass mortise cylinder with Schlage SC1 keyway, 2 inch length and 1.150 x 32 UNS threads

  • FinishSatin Chrome
  • Selling UnitBox
  • KeyingKeyed Different
  • Solid brass construction resists corrosion and wear
  • Satin chrome finish matches modern hardware aesthetics
  • 2 inch length suits standard door thicknesses
  • SC1 Schlage keyway works with existing Schlage keys
  • Standard cam and 1.150 x 32 UNS thread fit common mortise locks

2" Mortise Cylinder for Schlage SC1 Keyway

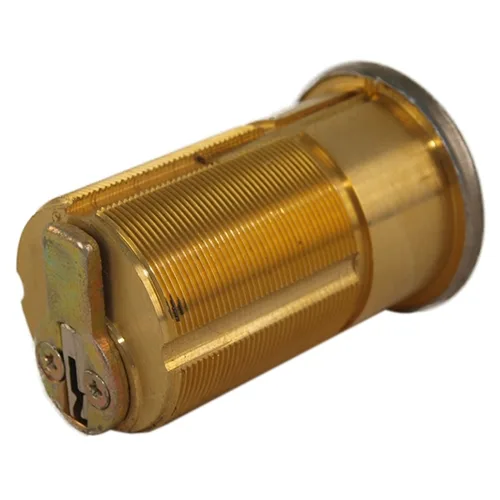

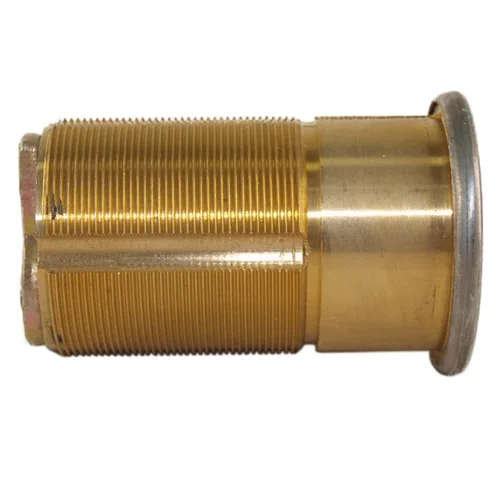

This solid brass mortise cylinder measures two inches in length and uses the Schlage SC1 keyway. It is finished in US26D satin chrome and comes keyed different in a single box. The unit suits residential and commercial doors that accept a standard 1.150 x 32 UNS thread.

Simple threaded installation with standard cam

The cylinder threads directly into the mortise lock body using the 1.150 x 32 UNS specification and includes a Standard Cam #1. Installation requires only a cylinder wrench or adjustable spanner. The most common issue is a mismatched thread pitch or an incorrect cylinder length for the door thickness.

Verify thread, face diameter

Confirm the existing lock uses a 1.150 x 32 UNS thread and a 1.360 inch (34.5 mm) cylinder face diameter. Measure the current cylinder length to ensure the two inch size matches the door thickness. This cylinder will not fit locks with a different thread specification or face diameter.

Highlights

  • Solid brass construction resists corrosion and wear
  • Satin chrome finish matches modern hardware aesthetics
  • 2 inch length suits standard door thicknesses
  • SC1 Schlage keyway works with existing Schlage keys
  • Standard cam and 1.150 x 32 UNS thread fit common mortise locks

Specifications

BrandMaxtech
ModelB2SC1-26D
FinishSatin Chrome
Selling UnitBox
KeyingKeyed Different

Questions about this item

How can I verify the 2" mortise cylinder is seated correctly after installation?

The cylinder face should sit flush at 1.360" (34.5mm) diameter against the door and the Standard Cam #1 must engage the lock mechanism smoothly when the SC1 key is turned.

What comes in the box and do I need to buy keys or a cam separately?

The box contains one solid brass cylinder with Standard Cam #1 installed and two SC1 keys; no additional cam or keys are required for a standard installation.

Which cylinder length should I choose for my door thickness?

This model is the 2" length; select a different size from the available range if your door thickness calls for a shorter or longer cylinder.
