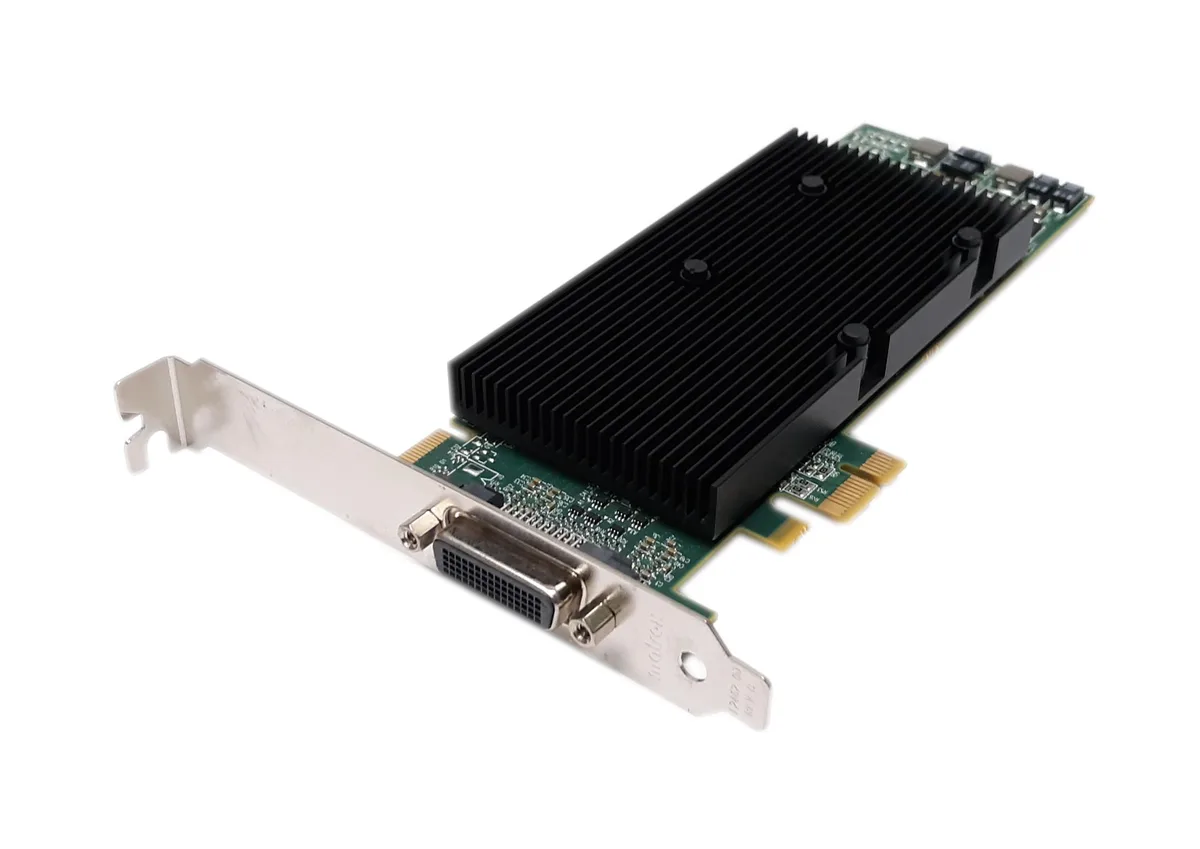

Matrox M9120 low-profile PCIe graphics card with fanless heatsink and LFH-60 output

matrox

Matrox M9120 512MB DDR2 PCIe x1 Low-Profile workstation graphics card

SKU CH-T1WB-BEDJS

Low-profile PCIe x1 workstation card with 512 MB DDR2 memory and dual-display output

  • Memory TypeDDR
  • Drives two displays from a single PCIe x1 slot
  • Fanless cooling keeps workstations quiet
  • Low-profile half-length design fits compact cases
  • 512 MB DDR2 memory handles 2048 x 1536 analog output
  • OpenGL 2.0 support across Windows 7 to Server 2016

Matrox M9120 PCIe x1 workstation card

The Matrox M9120 is a 512 MB DDR2 graphics card built for a PCI Express x1 slot. Its low-profile half-length board fits compact workstations and the fanless cooler keeps operation silent. Windows 7 through Windows Server 2016 are supported with a unified driver package and OpenGL 2.0. This card targets multi-display business desktops rather than 3D rendering or gaming workloads.

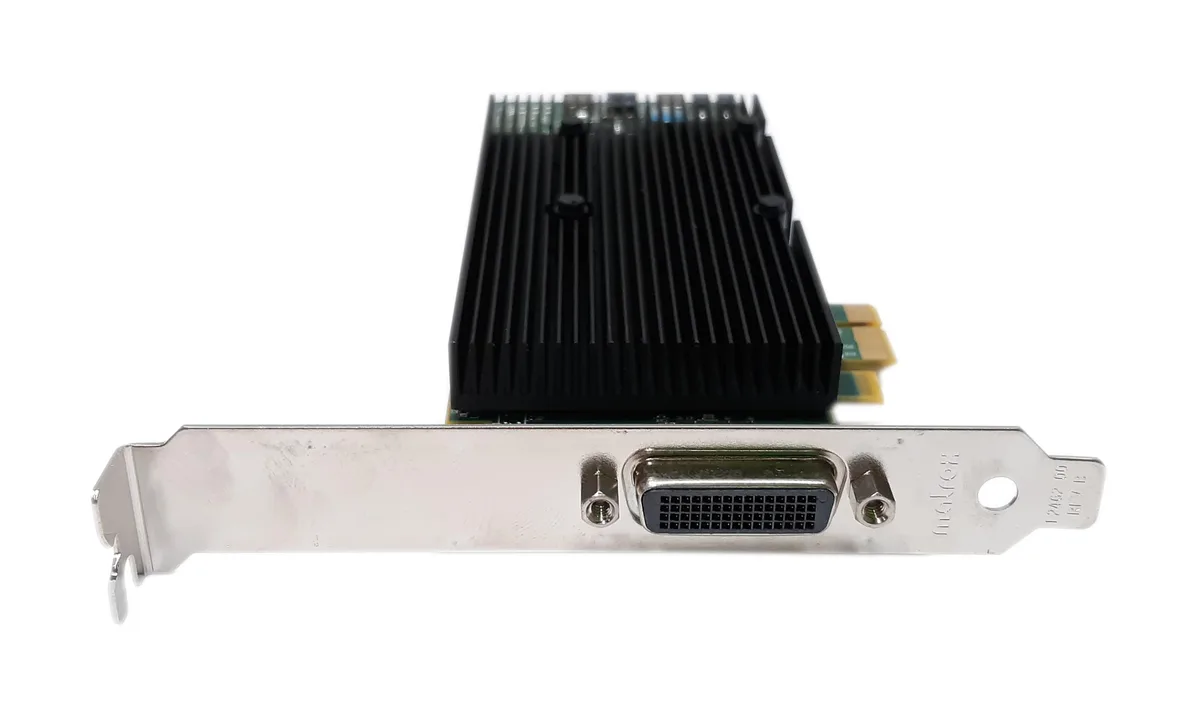

LFH-60 dual-output connectivity

Two display channels leave the card through a single LFH-60 connector. An optional quad-analog upgrade cable splits the port into four VGA outputs, while the native interface drives two DVI or analog monitors. A high-profile bracket is included for standard chassis mounting. Bezel-management tools help align content across screens but are available only under Windows. The fanless design means no moving parts to service in dusty environments.

PCIe x1 bandwidth and resolution limits

The x1 bus caps total throughput, so driving two 1920 x 1200 digital displays or a single 2048 x 1536 analog panel is the practical ceiling. Custom resolutions are possible but require vendor confirmation. Only two cards may be installed in one system, restricting very large video walls. Legacy operating systems such as Windows Server 2003 are still supported, yet modern APIs beyond OpenGL 2.0 are not accelerated.

Highlights

  • Drives two displays from a single PCIe x1 slot
  • Fanless cooling keeps workstations quiet
  • Low-profile half-length design fits compact cases
  • 512 MB DDR2 memory handles 2048 x 1536 analog output
  • OpenGL 2.0 support across Windows 7 to Server 2016

Specifications

Memory TypeDDR

Questions about this item

What resolution does the PCIe x1 interface cap each DVI output at?

Each DVI output is limited to 1920x1200, which is the maximum digital resolution the card supports per channel.

Will the 16.67 cm long low-profile card fit in my half-length chassis with a high-profile bracket?

The board measures 16.67 cm long and 6.86 cm high, so it fits half-length slots, but the supplied high-profile bracket requires a full-height rear opening.

How do I install the LFH-60 cable for dual monitors, and what step is often missed?

Plug the LFH-60 cable into the card, attach the two DVI or VGA tails, then install the unified driver package; the step often missed is enabling bezel management in the driver control panel under Windows.
