Rectangular grey electrical tester with digital display and front-panel controls

Matrix

Matrix MPM-1010 Electrical System Tool 15-650Hz 0.3-3000W

SKU CH-2200-R8GKA MPN MPM-1010

Measures AC/DC voltage, current, power and power factor from 15 to 650 Hz with 0.3 W to 3000 W range and RS-232 output

  • Height12.5 L x 17 W x 8.3 H inches
  • Width12.5 L x 17 W x 8.3 H inches
  • Length12.5 L x 17 W x 8.3 H inches
  • Weight7.5 pounds
  • Measures voltage, current, power and power factor simultaneously
  • Frequency response from 15 Hz to 650 Hz for wide-range analysis
  • Direct plug operation removes traditional wiring for safer testing
  • RS-232 interface enables automated production-line integration
  • Detects power as low as .001 W and current down to .2 mA

Digital power meter

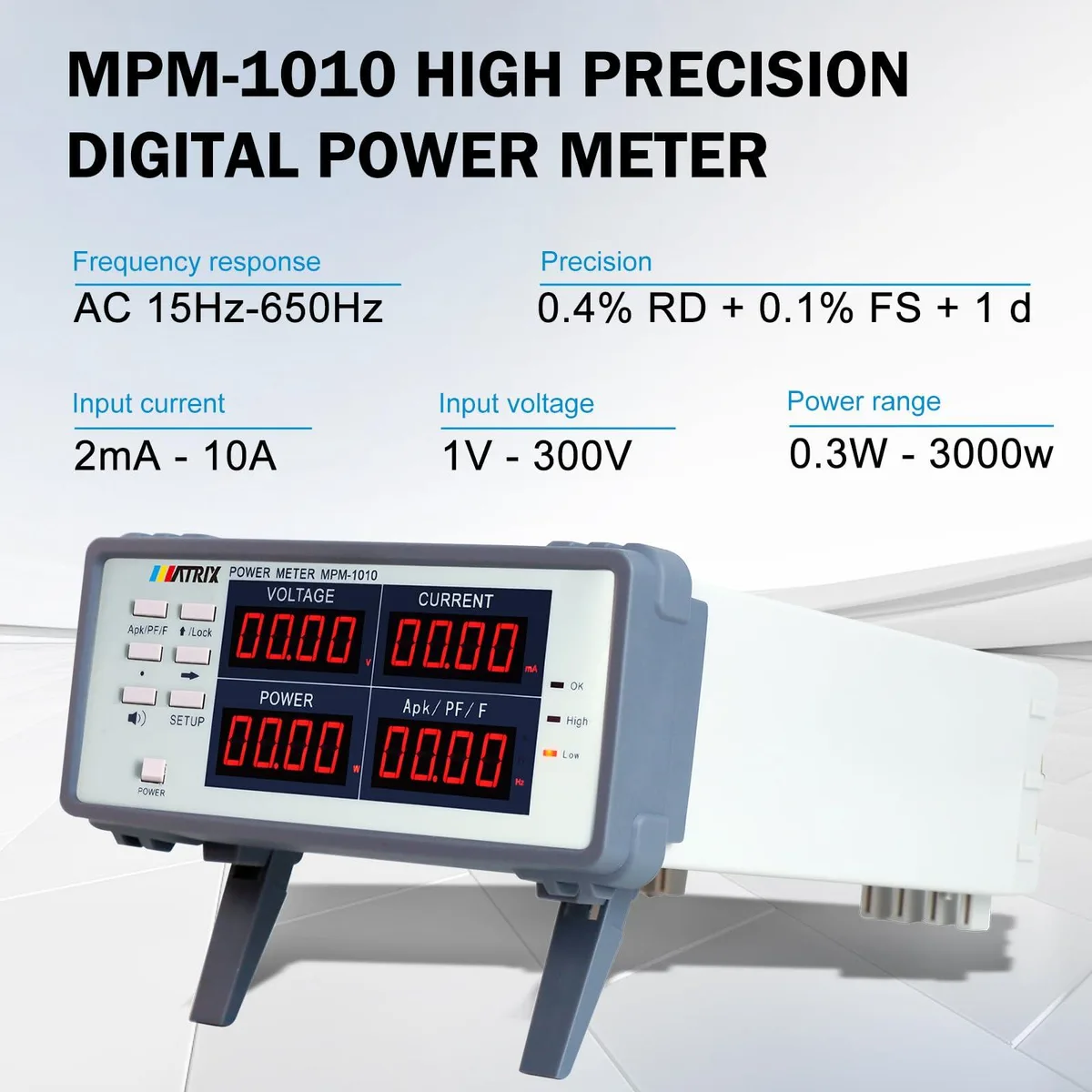

The Matrix MPM-1010 measures AC and DC voltage, current, power and power factor in a single bench-top instrument. Its frequency response covers 15 Hz to 650 Hz and it can detect power as low as 0.001 W with a minimum current of 0.2 mA. Upper and lower limits for each parameter trigger audible and visual alarms for pass/fail decisions.

Production-line and lab use

Engineers who need fast, repeatable electrical-parameter checks on lighting, appliances or prototype hardware will benefit from the direct-plug input and RS-232 link for automated logging. Buyers looking for a handheld multimeter or a device that logs harmonics beyond the stated frequency band should consider other instrument types.

15 Hz to 650 Hz bandwidth

The analyser’s usable frequency range is 15 Hz to 650 Hz, which determines whether it can characterise the fundamental and low-order harmonics of the equipment under test. If the application requires measurement above 650 Hz, this model will not capture those components.

Highlights

  • Measures voltage, current, power and power factor simultaneously
  • Frequency response from 15 Hz to 650 Hz for wide-range analysis
  • Direct plug operation removes traditional wiring for safer testing
  • RS-232 interface enables automated production-line integration
  • Detects power as low as .001 W and current down to .2 mA

Specifications

BrandMATRIX
Height12.5 L x 17 W x 8.3 H inches
Width12.5 L x 17 W x 8.3 H inches
Length12.5 L x 17 W x 8.3 H inches
Weight7.5 pounds

Questions about this item

How do I choose between the available versions of the MPM-1010?

The MPM-1010 is offered as a single model with a fixed measurement range of 0.3 W to 3000 W and a frequency response of 15 Hz to 650 Hz; there are no alternative versions or capacities to select from.

What does the 3000 W upper power limit mean when I am testing a real load?

It means the meter can measure active power up to 3000 W on AC circuits operating between 15 Hz and 650 Hz, with a minimum readable power of 0.001 W and a minimum current of 0.2 mA for no-load loss checks.

What does the RS-232 interface let me do in practice?

The standard RS-232 port enables direct connection to a PC or PLC for automated data logging and remote control, supporting integration into production-line test systems without additional wiring adapters.
