Black GPS active antenna with magnetic base and GT5 connector

Maswell Communication Tech.

Maswell Communication Tech. GPS Active Antenna Magnet Mount GT5 Connector Black

SKU CH-HGHC-9F3M0

A magnet-mount GPS antenna with a 1575.42 MHz centre frequency, 2 dBi peak gain and a 3 m RG174 cable ending in a GT5 connector

  • ColorBlack
  • Magnet mount enables quick roof or dash placement
  • GT5 connector fits many major vehicle brands
  • 28 dB LNA gain boosts weak satellite signals
  • IP66 rating withstands water jets and dust
  • Operating range −40 °C to +85 °C for year-round use

Vehicle GPS Antenna with GT5 Connector

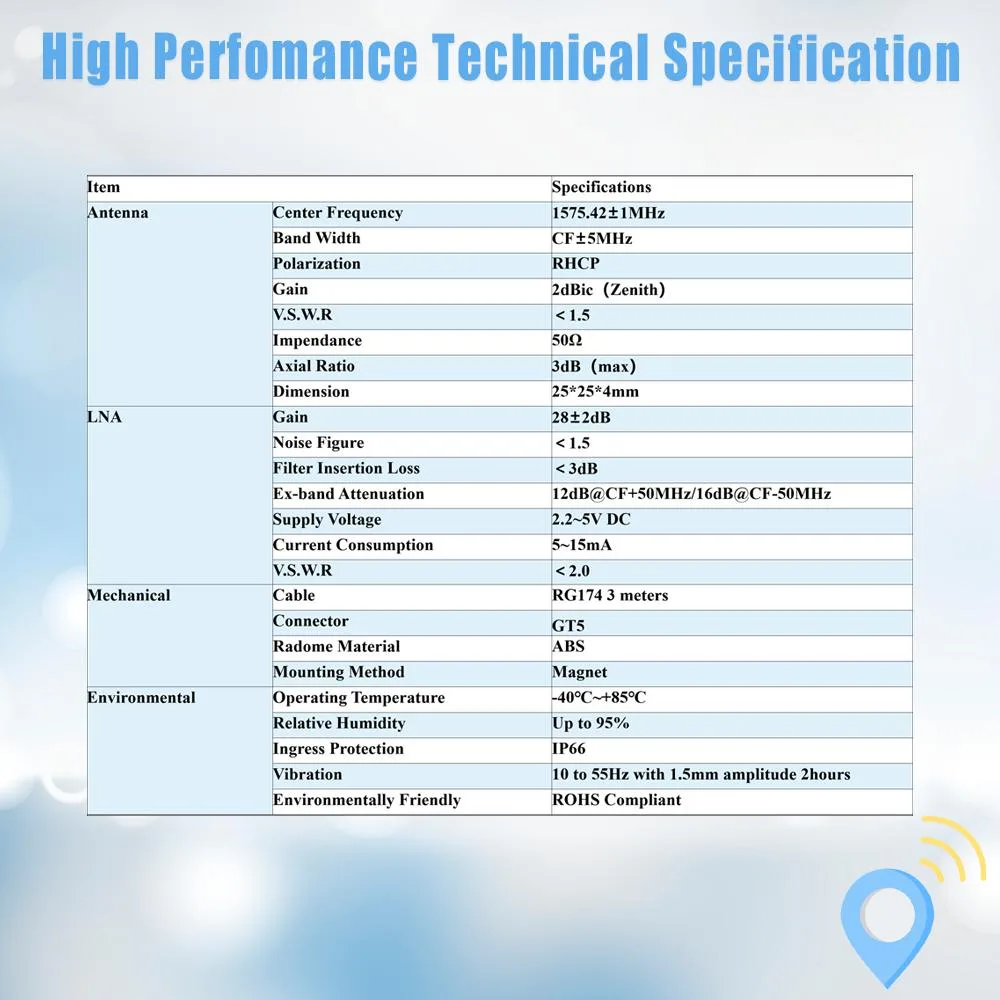

This Maswell Communication Tech. GPS active antenna uses a magnet mount and a GT5 connector for vehicular navigation systems. It operates at a centre frequency of 1575.42±1 MHz with a peak gain of 2 dBi and right-hand circular polarisation. The integrated low-noise amplifier provides 28±2 dB gain with a noise figure of 1.5 dB and draws 5–15 mA from a 2.2–5 V DC supply.

Upgrade from Damaged or Missing Factory Antenna

The unit replaces a broken or lost original GPS antenna on cars and trucks that accept a GT5 interface. Its 3-metre RG174 cable allows flexible routing to the head unit while the IP66-rated ABS radome withstands continuous exposure to weather and vibration. The built-in filter delivers 12 dB attenuation at CF+50 MHz and 16 dB at CF-50 MHz for improved out-of-band rejection.

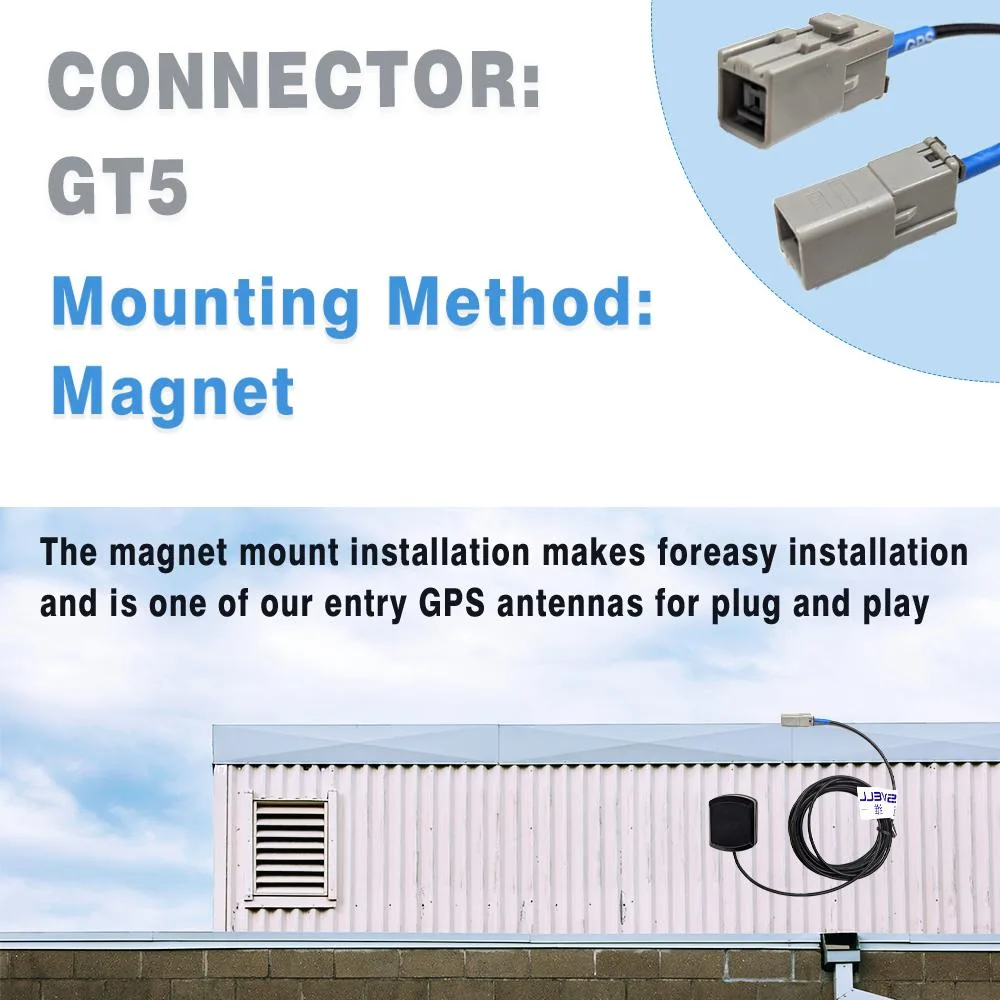

Magnet Mount for Dashboard or Roof Installation

The magnetic base secures the 25×25×4 mm housing to metal surfaces under the dash or on the roof without drilling. Power is supplied through the connected navigation device via the GT5 plug, so no separate wiring harness is required. Operating temperature spans -40 °C to +85 °C at up to 95 % relative humidity, and the assembly meets RoHS environmental standards.

Highlights

  • Magnet mount enables quick roof or dash placement
  • GT5 connector fits many major vehicle brands
  • 28 dB LNA gain boosts weak satellite signals
  • IP66 rating withstands water jets and dust
  • Operating range −40 °C to +85 °C for year-round use

Specifications

ColorBlack

Questions about this item

How much flat metal surface does the 25 mm square magnetic base need to hold securely?

The magnet mounts on any clean ferrous panel large enough to cover the 25 by 25 mm footprint; wipe the surface first so the IP66 seal stays intact.

What is the correct way to route the 3 m RG174 cable and seat the GT5 connector without damaging the centre pin?

Run the cable clear of moving trim, avoid sharp bends, and push the GT5 plug straight in until it clicks — angling the plug bends the centre pin.

When should the ABS radome or the LNA be replaced after continuous vehicular use?

Replace the unit if the radome cracks, water enters despite the IP66 rating, or the LNA current draw falls outside the 5 to 15 mA range at 2.2 to 5 V DC.
