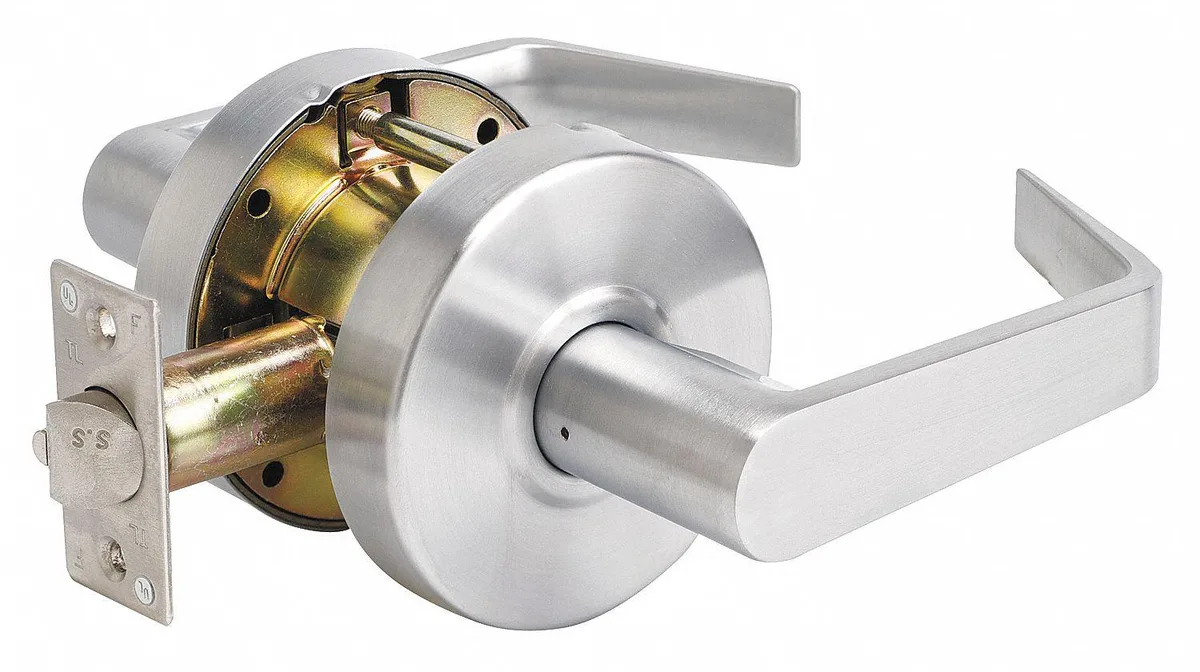

Satin chrome angled lever lockset on rectangular rose

Master Lock

Master Lock SLCHPG26D Lever Lockset SLC Angled

SKU CH-T157-9429J

Heavy-duty passage lever lockset in satin chrome with a 3-hour fire rating and Grade 2 durability for commercial doors

  • TypeDoor Hardware & Components
  • StyleSLC Angled
  • Fire-rated for three hours meets ANSI/BHMA A 156.5
  • Grade 2 durability suits commercial passage doors
  • Satin chrome zinc and steel resists daily wear
  • Schlage keyway fits existing commercial cylinders
  • Adjustable backset covers 1-3/8 to 1-3/4 inch doors

Heavy-duty lever lockset

This Master Lock SLCHPG26D is a Grade 2 commercial passage lockset built for high-traffic doors. It carries a three-hour fire rating and meets ANSI/BHMA A156.5 standards for durability. The satin chrome finish resists wear in demanding environments.

Suited for commercial passage doors

Ideal for offices, corridors and public buildings where a key-free lever handle is required. Not suitable for doors needing privacy, entry or classroom locking functions. Buyers needing a deadbolt or keyed cylinder should select a different function type.

2-3/4 inch backset requirement

The lockset fits doors prepared with a 2-3/4 inch backset and a thickness between 1-3/8 and 1-3/4 inches. Verify this measurement on your door before ordering, as other backset sizes will not align with the latch mechanism.

Highlights

  • Fire-rated for three hours meets ANSI/BHMA A 156.5
  • Grade 2 durability suits commercial passage doors
  • Satin chrome zinc and steel resists daily wear
  • Schlage keyway fits existing commercial cylinders
  • Adjustable backset covers 1-3/8 to 1-3/4 inch doors

Specifications

BrandMASTER LOCK
TypeDoor Hardware & Components
StyleSLC Angled

Questions about this item

How much power does the Master Lock SLCHPG26D lever lockset draw when the door is used continuously throughout the day?

The Master Lock SLCHPG26D is a fully mechanical passage lockset with no electronic components, so it draws no power at all during constant daily operation.

Which door preparation and tools must already be in place before installing the Master Lock SLCHPG26D lever lockset?

You need a door 1-3/8 in. to 1-3/4 in. thick with a 2-3/4 in. backset bore, a 1-7/8 in. x 4-7/8 in. strike mortise, and standard woodworking tools to fit the zinc and steel hardware.

Will the Master Lock SLCHPG26D lever lockset work with an existing Schlage keyway cylinder already fitted to the door?

Yes, the lockset is designed for a Schlage keyway, so it will accept the same cylinder you already have without re-keying or replacing the core.
