Handheld digital multimeter with 2.4 inch LCD display, yellow and grey plastic case

MASTECH

MASTECH MS8269 Digital Multimeter 2.4 inch LCD 2000 counts

SKU CH-V6QV-M1WX0 MPN MS8269

Digital multimeter with 2.4 inch LCD and 2000-count display measures AC/DC voltage, current, resistance, capacitance, frequency and temperature

  • Analog/DigitalDigital
  • TypeDigital Multimeters
  • FeaturesTest Resistance, Capacitance and Frequency, AC/DC Voltage &
  • Battery Type9V 6F22 Battery*1 (NOT including)
  • 4 inch LCD with 2000 counts for clear readings
  • Measures AC voltage to 750 V and DC voltage to 1000 V
  • Tests resistance up to 200 MΩ with 0.5 % basic accuracy
  • Capacitance and frequency ranges plus Type‑K temperature measurement
  • Data hold, back light and resetable fuse for convenient use

Digital Multimeter for Electrical Testing

The MASTECH MS8269 is a digital multimeter with a 2.4 inch LCD showing 2000 counts. It measures AC and DC voltage up to 750V and 1000V, current up to 10A, resistance, capacitance, frequency and temperature. The tool suits professionals and DIY users in office, industrial, education and home settings.

Handheld Operation with Battery Power

The meter fits in one hand at 19.5 x 9.2 x 5.5 cm and runs on a single 9V 6F22 battery not included in the package. Data hold and back light free the user to read measurements in dim areas without a second light source. A reset table fuse protects the instrument during fault finding.

Accuracy Across Extended Sessions

DC voltage accuracy is ±0.5% on ranges up to 200V and ±0.8% at 1000V. AC voltage holds ±0.8% to 200V and ±1.2% at 750V. DC current reads ±0.8% at 20mA and ±2.0% at 10A while AC current reaches ±3.0% at 10A. Resistance spans 200Ω to 200MΩ with ±0.8% to ±5.0% tolerance. Capacitance covers 20nF to 20µF at ±4.0% and frequency measures to 20kHz at ±1.5%.

Highlights

  • 4 inch LCD with 2000 counts for clear readings
  • Measures AC voltage to 750 V and DC voltage to 1000 V
  • Tests resistance up to 200 MΩ with 0.5 % basic accuracy
  • Capacitance and frequency ranges plus Type‑K temperature measurement
  • Data hold, back light and resetable fuse for convenient use

Specifications

BrandMastech
ModelMS8269
Analog/DigitalDigital
TypeDigital Multimeters
FeaturesTest Resistance, Capacitance and Frequency, AC/DC Voltage & Current, etc
Battery Type9V 6F22 Battery*1 (NOT including)

Questions about this item

What is the maximum DC voltage this 2000-count multimeter can measure?

The MS8269 measures DC voltage up to 1000V with ±0.8% accuracy on the highest range.

How much current does the meter draw during extended bench use?

It runs on a single 9V 6F22 battery (not included); typical current draw is low enough for long daily sessions.

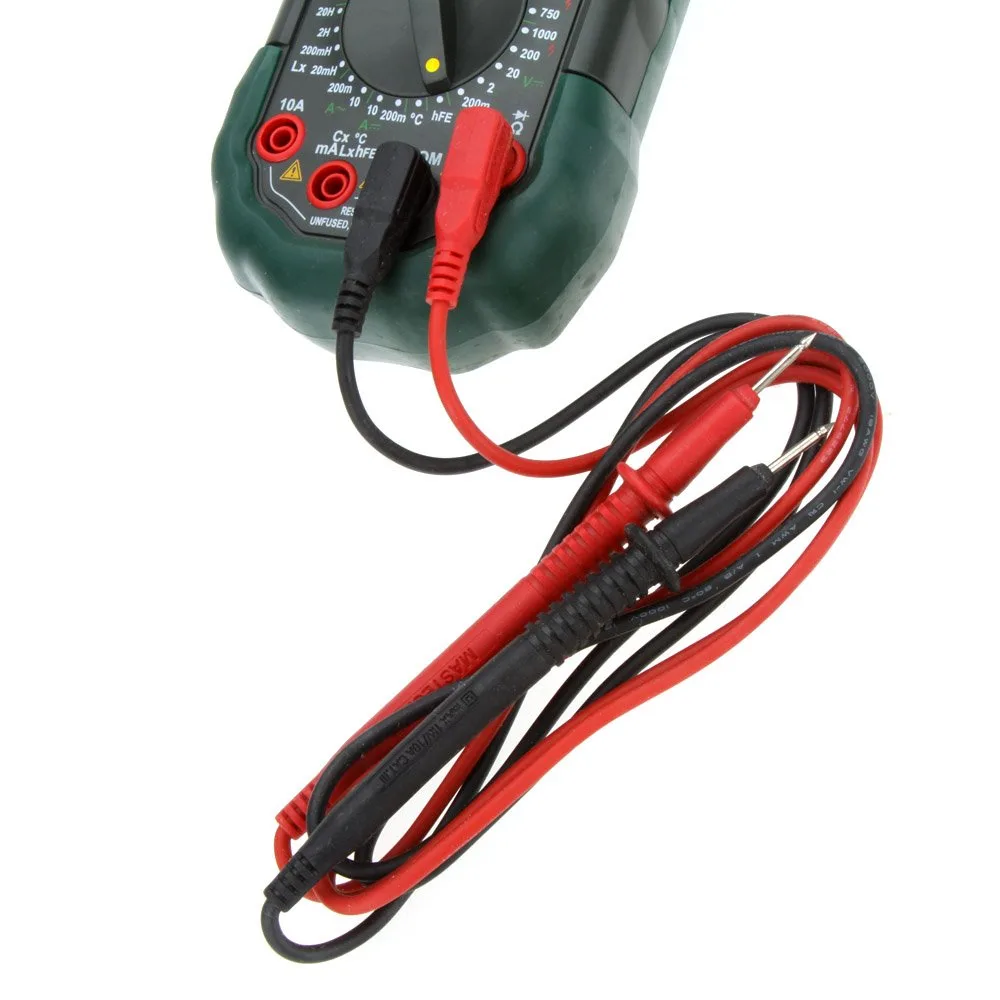

Which test leads and temperature probe are required to start measuring?

Standard banana-plug test leads and a Type-K thermocouple are needed; both are sold separately.
