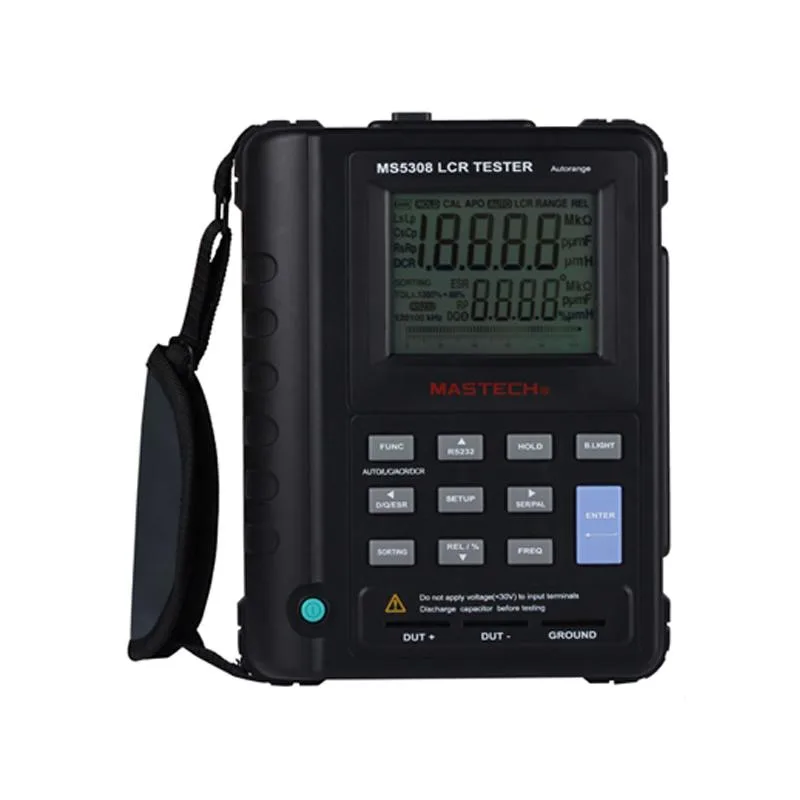

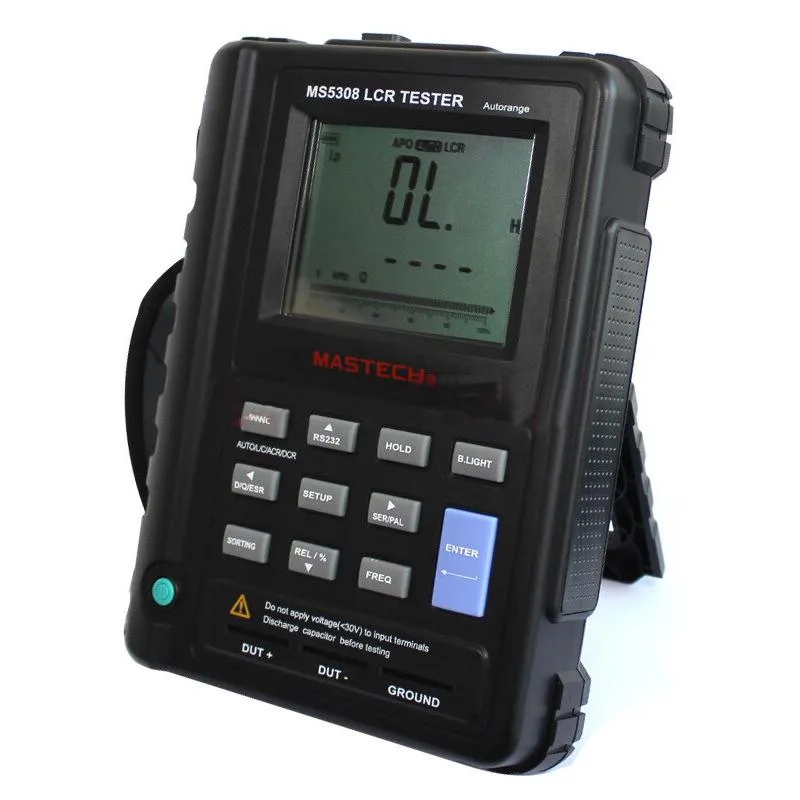

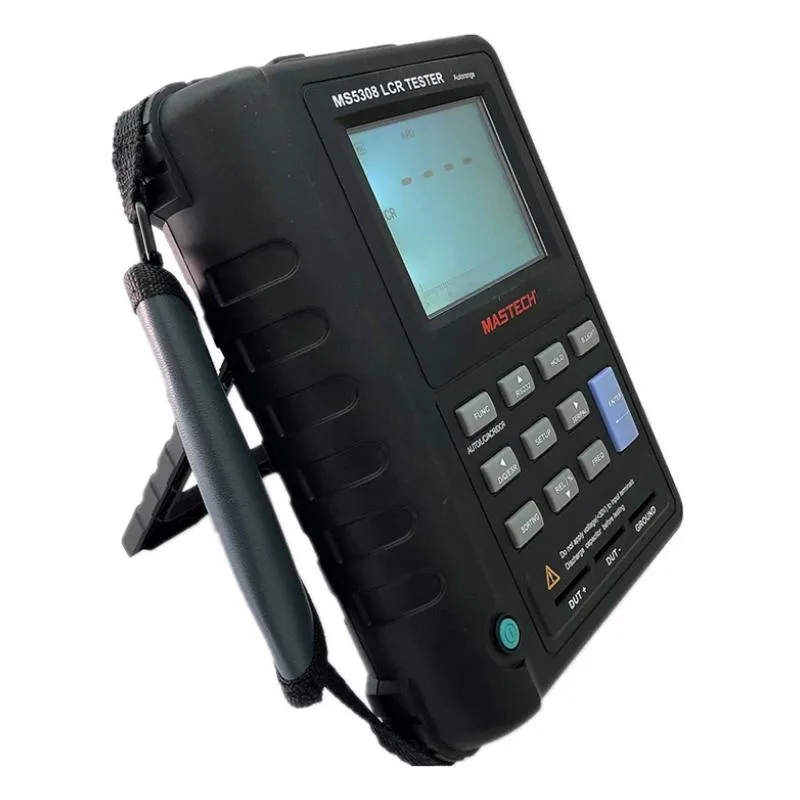

Handheld LCR meter with dual LCD display, grey plastic case, test leads attached

MASTECH

MASTECH MS5308 LCR Meter 100kHz measurement tool

SKU CH-J78M-EKGVE

Measures inductance, capacitance and resistance at up to 100 kHz with dual LCD, auto-ranging and selectable series or parallel modes

  • TypeDigital Multimeters
  • Measures inductance, capacitance and resistance up to 100 kHz
  • Dual 19,999/1,999 count LCD shows main and secondary parameters
  • Auto range with smart component identification speeds up testing
  • Selectable series or parallel modes plus DCR measurement
  • Five test frequencies from 100 Hz to 100 kHz for accurate AC analysis

MASTECH MS5308 Handheld LCR Meter

The MASTECH MS5308 is a portable handheld LCR meter designed for measuring inductance, capacitance and resistance. It operates at test frequencies up to 100kHz and provides both AC and DC measurement modes. The instrument features a dual LCD display with 19,999 main and 1,999 secondary counts. Automatic component identification and range selection simplify the measurement process.

Suits technicians needing multi-frequency AC testing

This meter suits engineers and technicians who require series or parallel measurement modes with D, Q and ESR parameters displayed simultaneously. It supports five selectable test frequencies including 100Hz, 120Hz, 1kHz, 10kHz and 100kHz. Buyers who only need basic DC resistance checks or who require measurement capabilities beyond the specified 100kHz upper frequency limit should consider other instruments.

100kHz maximum test frequency decides fit

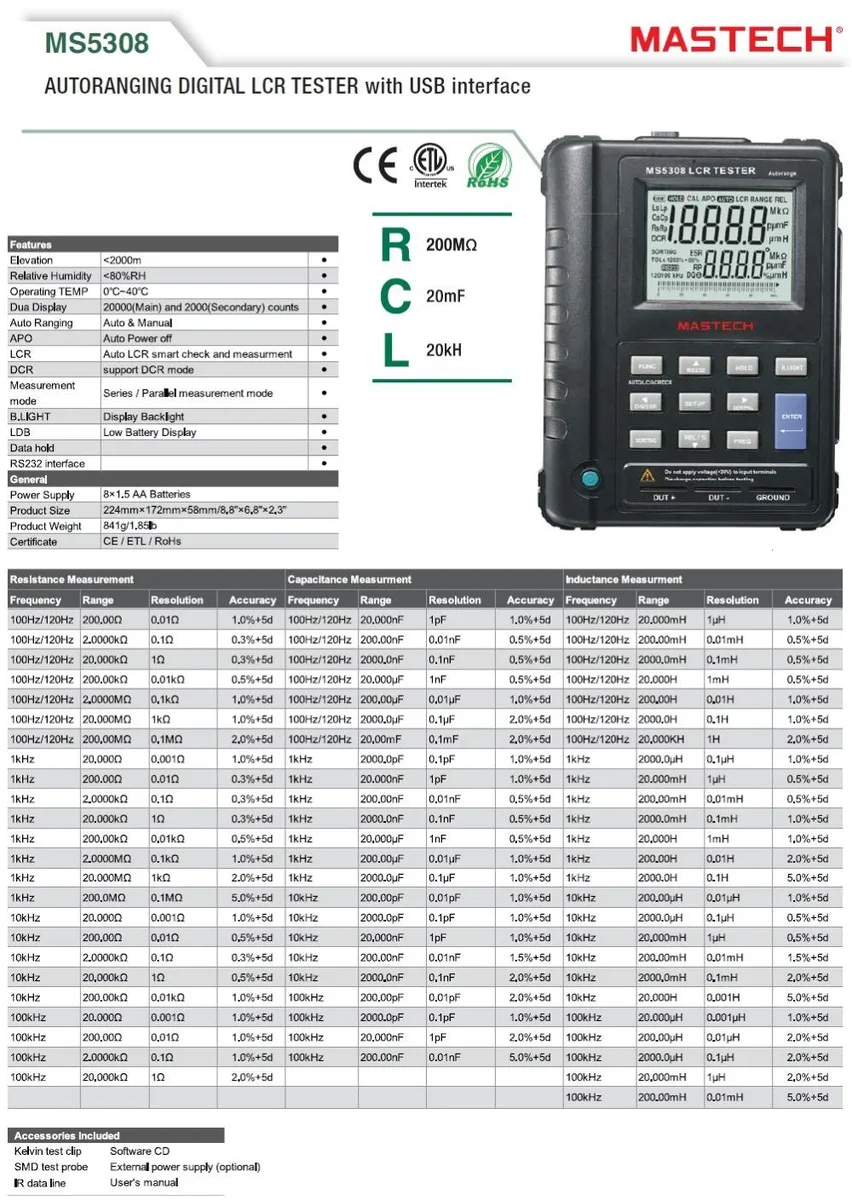

The single specification that determines suitability is the maximum test frequency of 100kHz across five available steps. Measurement ranges at 1kHz cover inductance from 200uH to 2000H, capacitance from 2000pF to 2.0mF and resistance from 20.000 to 200.0M. Highest accuracy for inductance and capacitance is rated at 0.5% plus 5 words while resistance reaches 0.3% plus 5 words.

Highlights

  • Measures inductance, capacitance and resistance up to 100 kHz
  • Dual 19,999/1,999 count LCD shows main and secondary parameters
  • Auto range with smart component identification speeds up testing
  • Selectable series or parallel modes plus DCR measurement
  • Five test frequencies from 100 Hz to 100 kHz for accurate AC analysis

Specifications

TypeDigital Multimeters

Questions about this item

Which test frequency should I select for my component measurements?

Five frequencies are available: 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz. Choose the frequency that matches the component's typical operating range for the most accurate reading.

What does the 100 kHz maximum frequency mean when the meter is in use?

At 100 kHz the meter can measure inductance, capacitance and resistance with AC excitation, providing accuracy of 0.5 % for impedances between 0.1 Ω and 1 Ω and 0.3 % for 10 Ω to 100 kΩ.

What interface does the MS5308 use to transfer data and what does it limit?

An RS-232 port is fitted for data output; it limits transfer speed to standard serial rates and requires a compatible cable or adapter to connect to a PC.
