MASTECH
MASTECH MAS830L Digital Multimeter 3½ Digit LCD Backlight

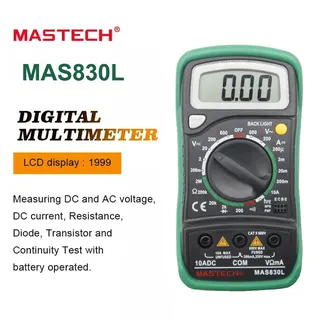

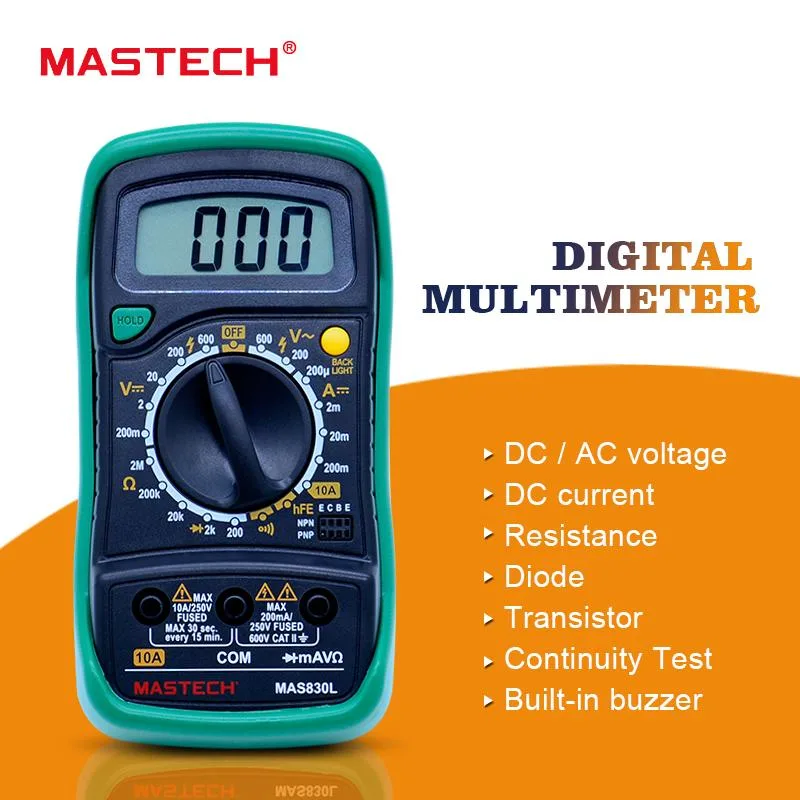

A pocket digital multimeter with a 1.8" LCD backlight that measures DC and AC voltage, DC current, resistance, diodes, transistors and continuity
- TypeDigital Multimeters
- 3½-digit 1.8" LCD with backlight for dark-place reading
- Measures DC voltage to 600 V ±0.8 % and AC voltage to 600 V ±1.5 %
- DC current ranges to 10 A ±3.0 % plus resistance to 2 MΩ ±1.0 %
- Built-in diode, continuity and transistor hFE 1~1000 tests
- Data-hold function freezes readings for easy recording
Pocket Multimeter for Electrical Testing

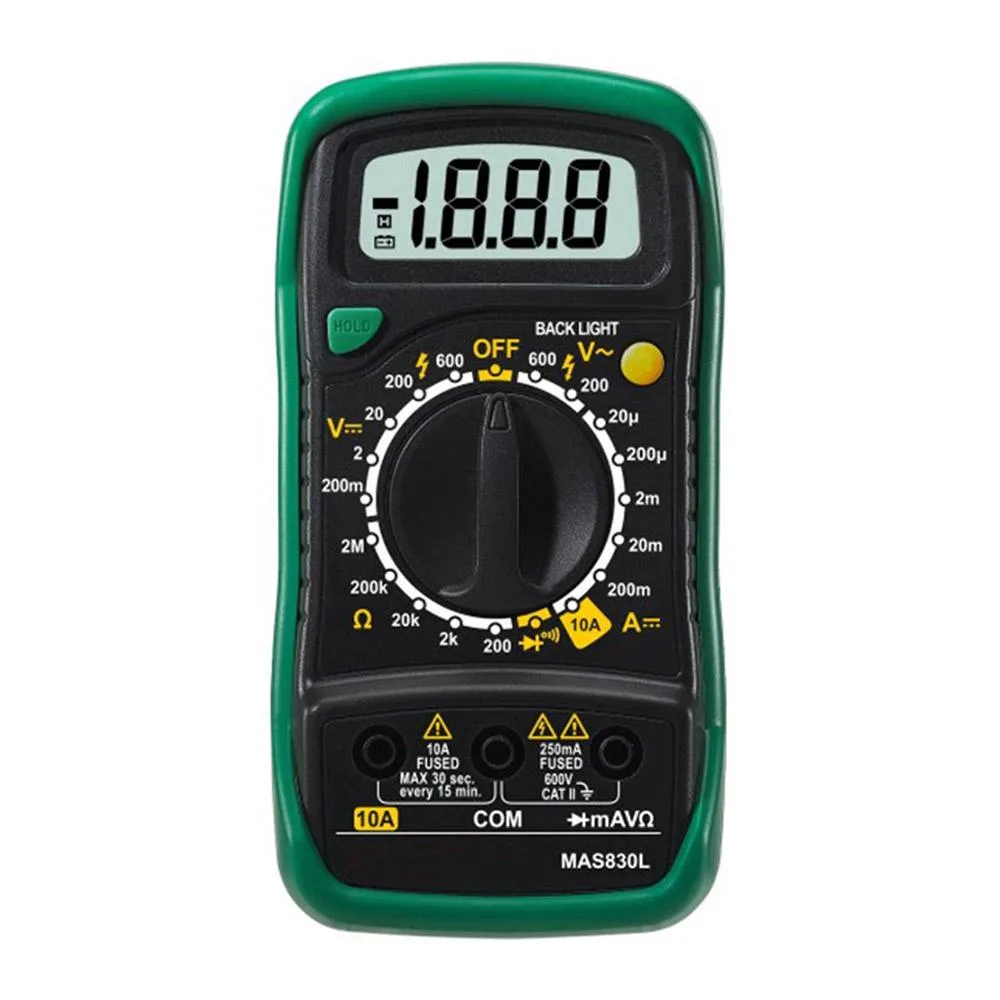

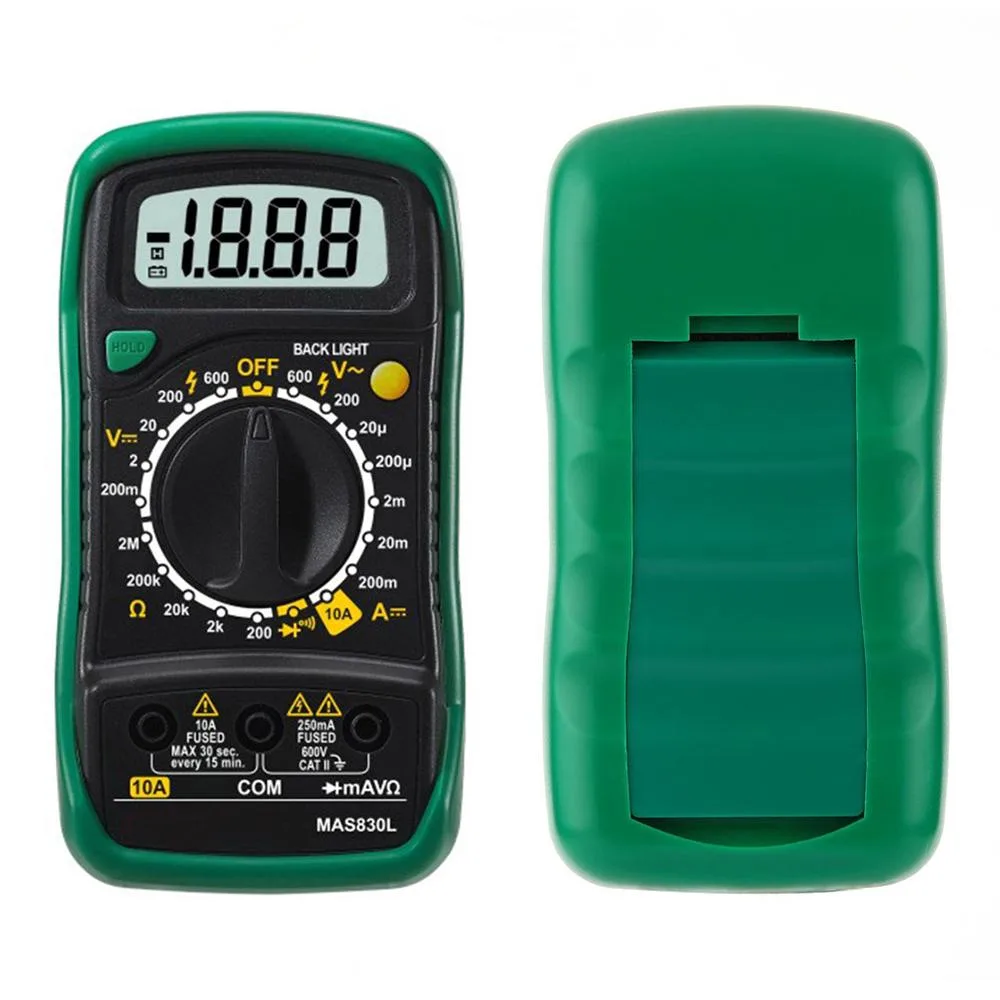

The MASTECH MAS830L is a handheld 3½ digit digital multimeter with an LCD display and backlight. It measures DC and AC voltage, DC current, resistance, diodes, transistors and circuit continuity. The 1.8 inch screen shows a maximum reading of 2000 counts. It is suited for technicians, hobbyists and automotive owners who need a portable troubleshooting tool.
Upgrade from Basic Test Lights
This meter replaces simple voltage testers or analogue multimeters that lack numeric readouts or backlighting. The jump is worth it when you need accurate DC voltage readings within 0.5 percent on lower ranges and 0.8 percent on higher ranges up to 600V. It also adds DC current measurement up to 10A with stated accuracies of 1.0 to 3.0 percent, plus resistance ranges up to 2M ohm and a transistor hFE test up to 1000.
Check Battery and Lead Compatibility

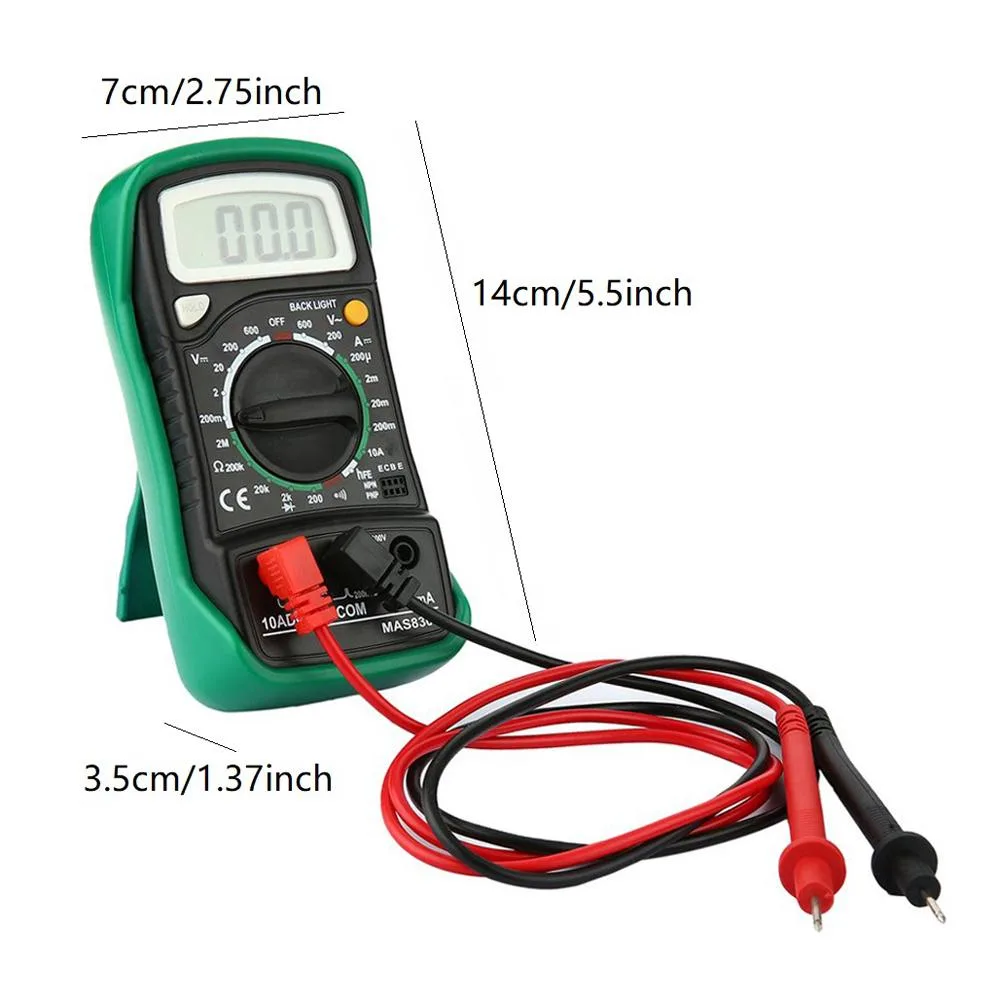

Verify you have a 9V NEDA 1604 6F22 battery available as it is not included with the unit. Confirm the supplied test leads suit your typical probe points and that the 2000 count resolution meets your precision requirements. The package includes the multimeter, two test leads and an English manual.
Highlights
- 3½-digit 1.8" LCD with backlight for dark-place reading
- Measures DC voltage to 600 V ±0.8 % and AC voltage to 600 V ±1.5 %
- DC current ranges to 10 A ±3.0 % plus resistance to 2 MΩ ±1.0 %
- Built-in diode, continuity and transistor hFE 1~1000 tests
- Data-hold function freezes readings for easy recording
Specifications
| Type | Digital Multimeters |
|---|
Questions about this item
What size 9 V battery powers the MAS830L?
It takes a single NEDA 1604 6F22 9 V cell, which is the standard rectangular 9 V format.
How do I install the battery in the MAS830L?
Open the rear battery compartment, insert the 9 V cell observing the polarity markings, then close the cover before use.
When should I replace the test leads supplied with the MAS830L?
Replace them if the insulation is cracked, the probes are loose, or the leads show high resistance on a continuity check.
