MANHATTAN

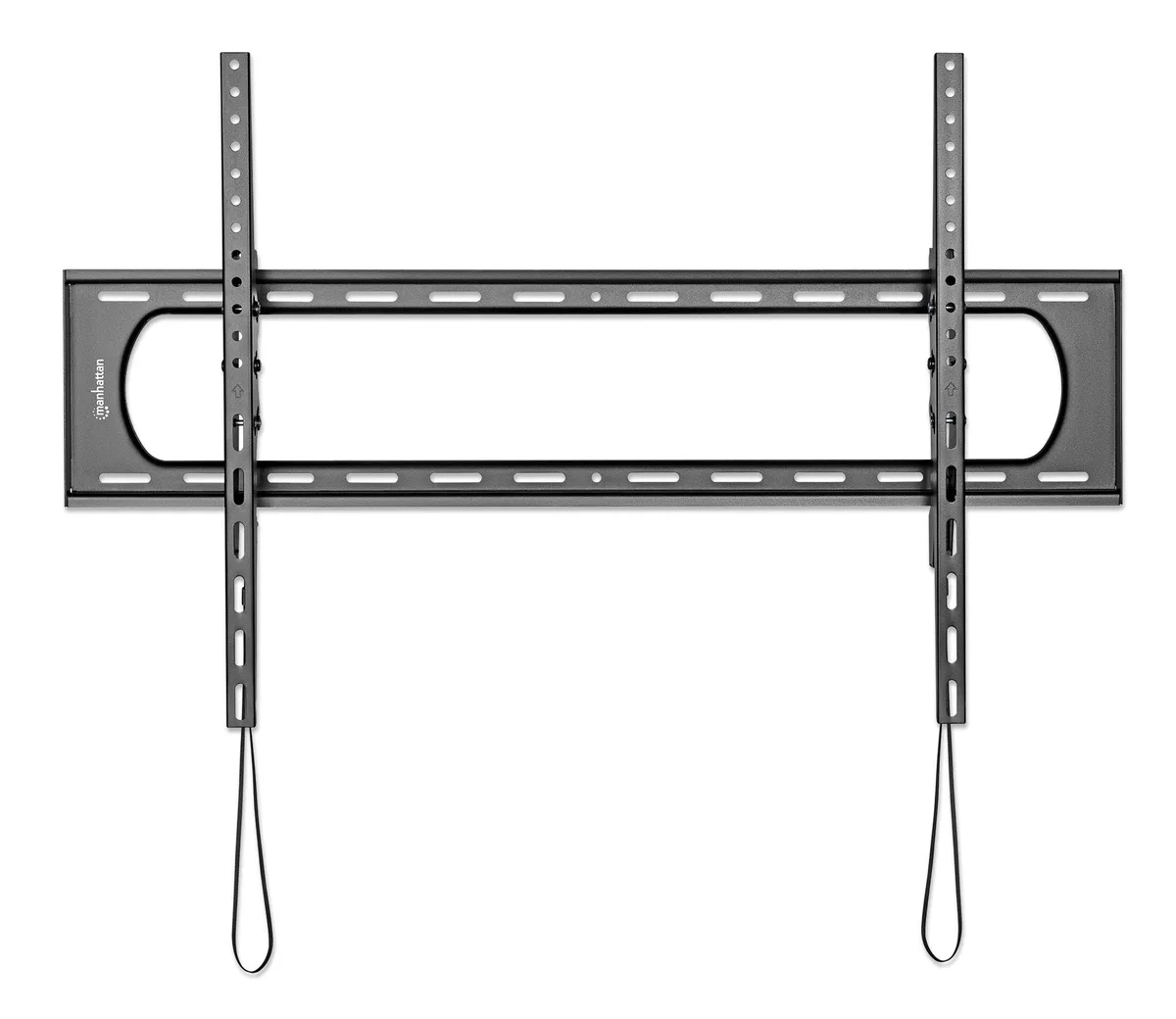

MANHATTAN 461931 60-120" 264 lbs tilt tv mount
Heavy-duty steel tilt mount holds one 60 to 120 inch flat or curved TV up to 264 lbs with plus or minus 10 degree tool-free tilt adjustment
- NameHeavy-Duty Large-Screen Tilting TV Wall Mount
- Install LocationWall
- Mount StyleTilt
- MaterialSteel
- ColorBlack
- FixedYes
- Supports 60 to 120 inch screens up to 264 lbs
- +/-10 degree tilt reduces glare for better viewing
- Reinforced 2 mm steel with powder coat resists wear
- Bubble level and snap-in spring locks simplify installation
- VESA 50x50 to 900x600 fits most flat or curved TVs
Heavy-Duty Tilt Mount for 60-120" Screens

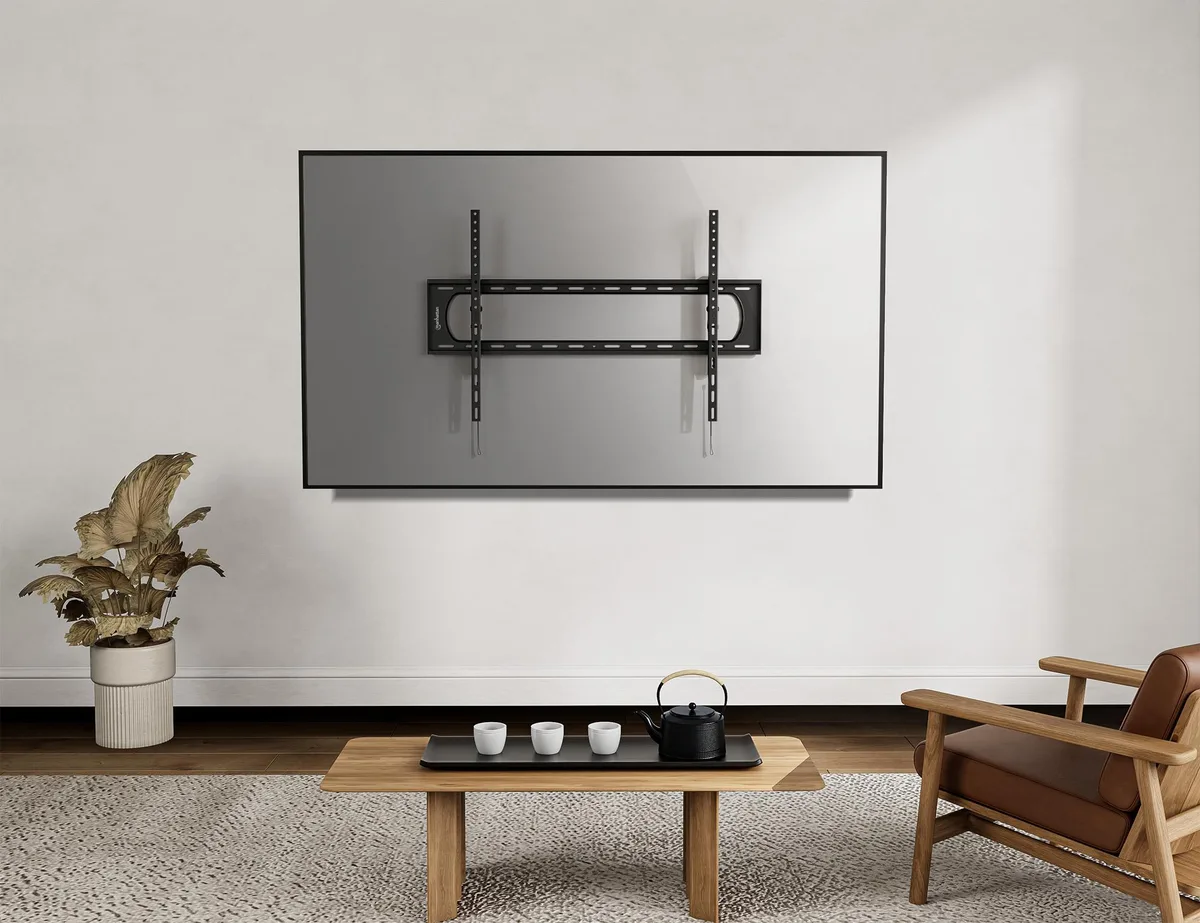

The Manhattan 461931 is a steel wall bracket built to hold one flat or curved television from 60 to 120 inches. It supports a maximum load of 264 lbs and mounts the screen 3.15 inches from the wall. The black powder-coated finish resists wear in residential, office, hospitality or digital-signage installations.
VESA 50x50 to 900x600 Compatibility
This mount meets VESA standards ranging from 50x50 up to 900x600, covering patterns such as 200x200, 400x400 and 600x400. The wide hole-pattern range is the single specification that determines whether your television can attach securely. Verify your TV's VESA pattern before purchase.

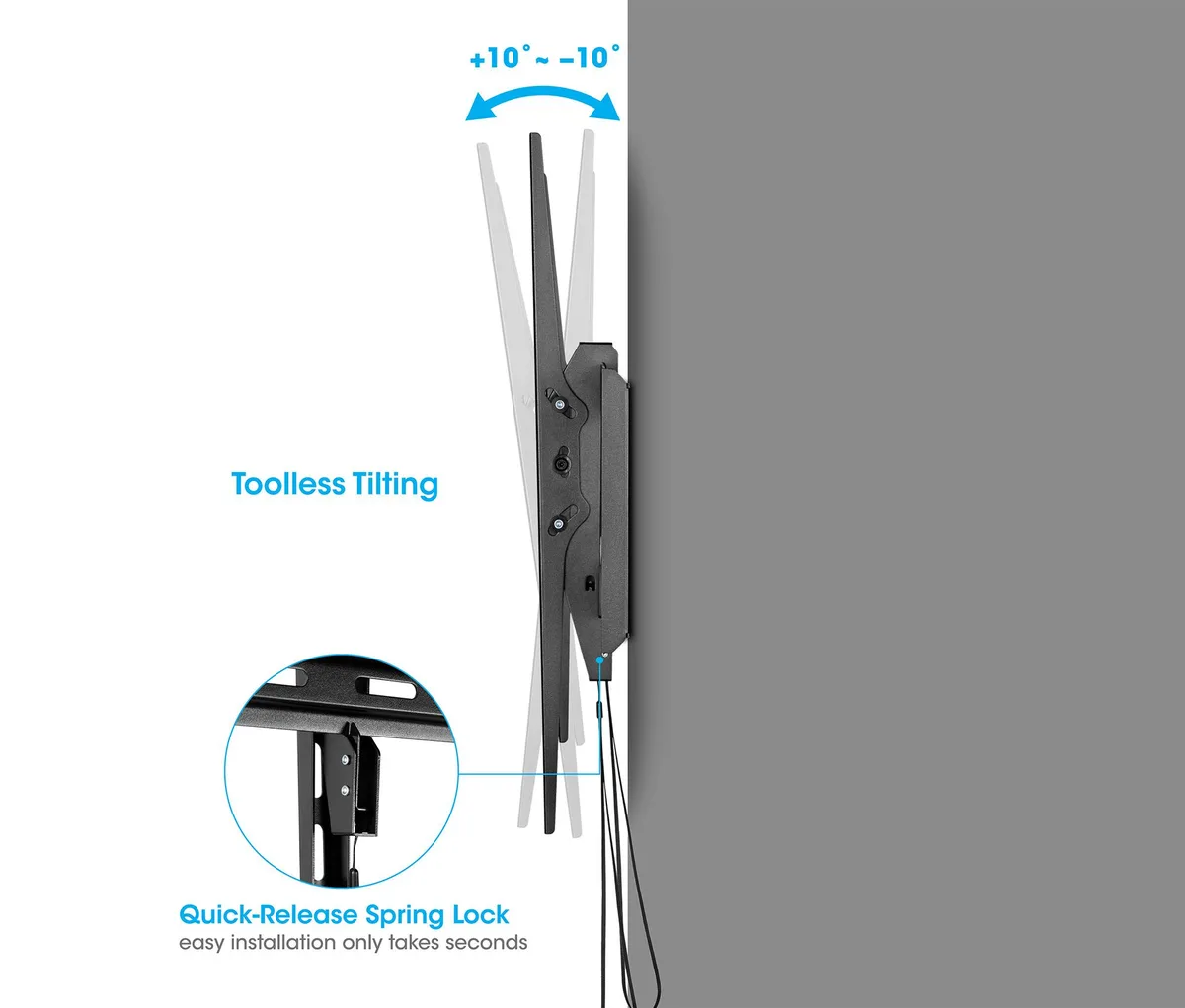

Tool-Free Tilt for Glare Reduction
The +10/-10 degree tilt adjusts without tools, letting installers optimise viewing angles for seated audiences or bright rooms. It suits buyers who need a fixed-distance mount with simple angle tuning. Buyers who require full-motion articulation, swivel movement or a closer-to-wall profile should look at something else.
Highlights
- Supports 60 to 120 inch screens up to 264 lbs
- +/-10 degree tilt reduces glare for better viewing
- Reinforced 2 mm steel with powder coat resists wear
- Bubble level and snap-in spring locks simplify installation
- VESA 50x50 to 900x600 fits most flat or curved TVs
Specifications
| Brand | Manhattan |
|---|---|
| Series | Tilting TV Wall Mount |
| Model | 461931 |
| Part Number | 461931 |
| Name | Heavy-Duty Large-Screen Tilting TV Wall Mount |
| Install Location | Wall |
| Mount Style | Tilt |
| Material | Steel |
| Color | Black |
| Fixed | Yes |
| TV Size Capacity | Supports one flat or curved 60" to 120" TV |
| TV Weight Capacity | 264 lbs. |
| VESA Compatible | Meets VESA standards 50x50 to 900x600 e.g. 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600 |
| Distance from Wall | Holds TV 80 mm (3.15 in.) from wall |
| Tilt Range | +10/-10° |
| Feature | Ultra Heavy-Duty XXL Tilting TV Wall Bracket |
| Height | 3.15" |
| Width | 39.57" |
| Depth | 23.7" |
| Weight | Net weight: 4.29 kg (9.46 lbs.) Gross weight: 4.86 kg (10.71 lbs.) |
| Package Content | Heavy-Duty Large-Screen Tilting TV Wall Mount Attachable bubble level Installation hardware with instructions |
| Shipping weight | 4.74 kg |
| Package size | 1041 × 241 × 64 mm |
Questions about this item
How far will the TV sit from the wall once the MANHATTAN 461931 is installed?
The bracket holds the screen 80 mm (3.15 in.) from the wall surface, so the TV will project that distance once mounted.
What VESA patterns does the MANHATTAN 461931 support, and what is the largest hole spacing it can accommodate?
It meets VESA standards from 50x50 up to 900x600 mm, covering the full range of patterns listed for this mount.
What are the physical dimensions of the MANHATTAN 461931 bracket, and how much wall space does it need?
The mount measures 39.57 in. wide, 23.7 in. deep and 3.15 in. high, requiring that much clear wall area for installation.
