Black aluminum four-bay SATA docking station with eSATA and USB 3.0 ports, vertical open design

MAIWO

MAIWO 4-Bay SATA Docking Station eSATA 72TB

SKU CH-X55J-AAHN1

A four-bay SATA dock with eSATA and 1394 interfaces that holds four 2.5 or 3.5 inch drives up to 72 TB total and clones offline at 5 Gbps

  • ColorBlack
  • TypeDock
  • MaterialAluminum
  • External Interface1394 & eSATA
  • HDD Count Supported4 HDD
  • Number of Bay4 Bay
  • Clones drives offline without a computer
  • Supports up to 72 TB across four bays
  • Transfers data at 5 Gbps via USB 3.0
  • Vertical aluminium design dissipates heat effectively

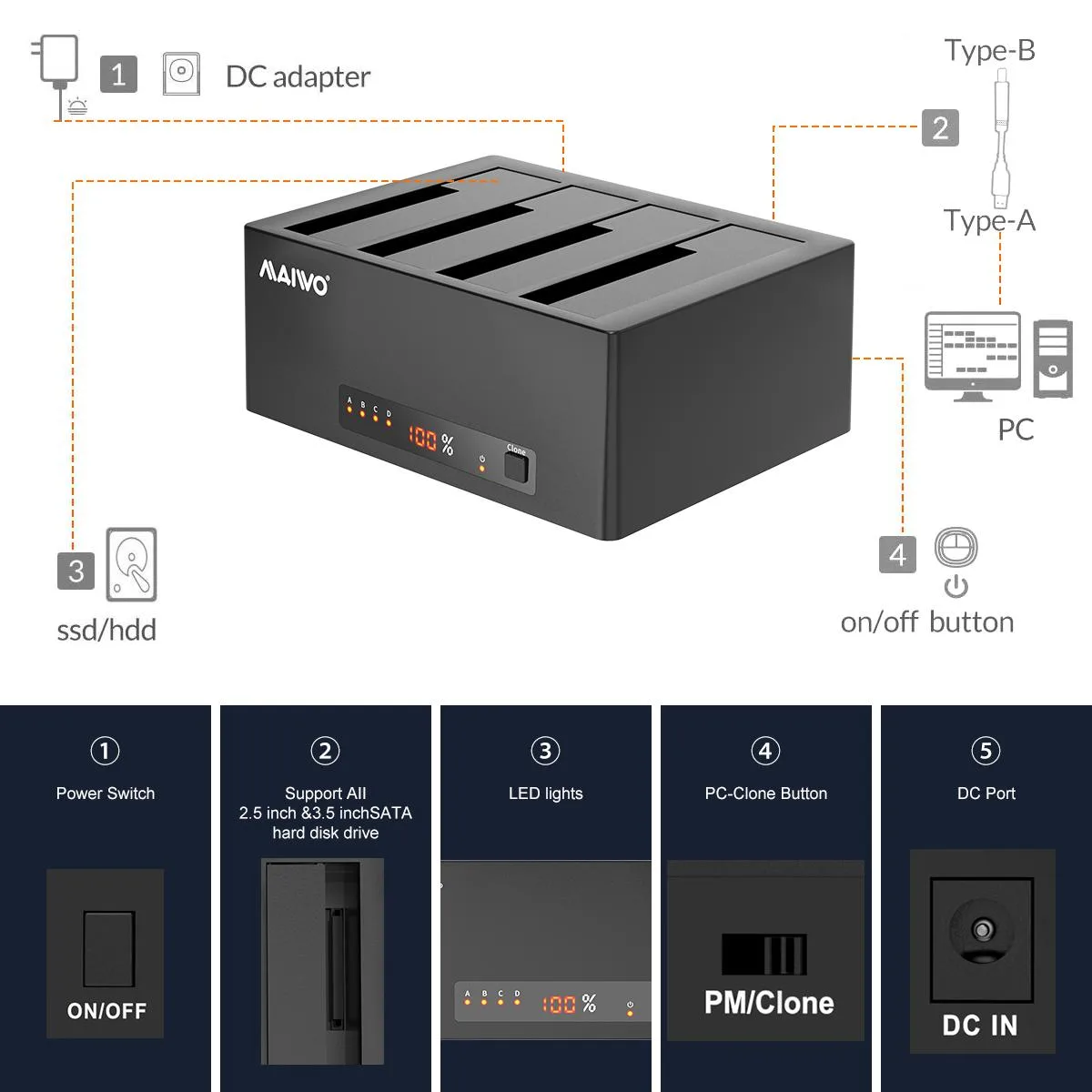

  • Powers four drives with 12 V 7 A supply

Four-bay SATA dock for 2.5 and 3.5 inch drives

This MAIWO docking station accepts up to four SATA hard drives or SSDs in 2.5 inch or 3.5 inch form factors. It connects to a host via USB 3.0 or eSATA and supports a total storage capacity of 72 TB using four 18 TB drives. The vertical aluminium chassis provides passive cooling, and a 12 V 7 A power adapter supplies each bay independently. Hot-swap operation allows drives to be inserted or removed without powering down.

Suited for multi-drive backup and offline cloning

The unit is aimed at users who need simultaneous access to several SATA drives for backup, data recovery, batch processing or disk duplication. An offline clone function copies a source drive to up to three target drives without a computer connection, with LED indicators showing progress from 1 % to 100 %. It is not intended for users who require only a single drive bay, hardware RAID modes, or interfaces other than USB 3.0 and eSATA.

72 TB maximum capacity across four bays

The decisive specification is the 72 TB aggregate limit, realised by populating all four bays with 18 TB SATA drives. Each bay supports drives up to 18 TB, and the dock handles four drives concurrently at USB 3.0 5 Gbps speeds. Compatibility spans Windows 7 through 10, macOS and Linux with no driver installation required.

Highlights

  • Clones drives offline without a computer
  • Supports up to 72 TB across four bays
  • Transfers data at 5 Gbps via USB 3.0
  • Vertical aluminium design dissipates heat effectively
  • Powers four drives with 12 V 7 A supply

Specifications

ColorBlack
TypeDock
MaterialAluminum
External Interface1394 & eSATA
HDD Count Supported4 HDD
Number of Bay4 Bay

Questions about this item

What drives must I already have to use the four bays?

You need up to four 2.5 or 3.5 inch SATA hard drives or SSDs; each bay takes one drive.

Will my existing 1394 or eSATA ports work with this dock?

Yes, the dock provides both 1394 and eSATA external interfaces for connection to legacy ports.

How do I know the offline clone finished correctly?

The LED indicator shows cloning progress from 1 % to 100 %; when it reaches 100 % the clone is complete.
