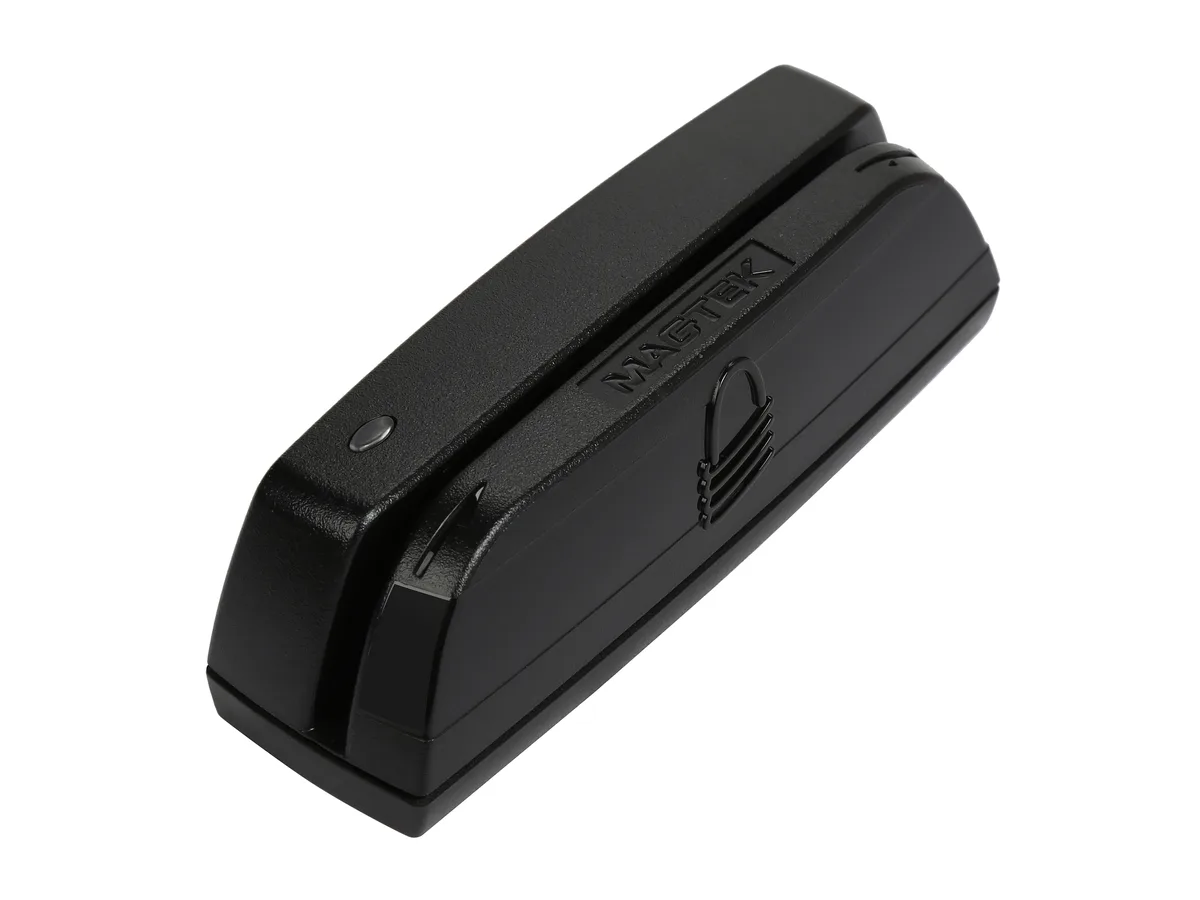

Black rectangular USB magstripe reader with LED indicator and swipe slot

MagTek, Inc

MagTek, Inc 21073145 Dynamag USB credit card reader

SKU CH-6F2X-XSJP7 MPN 21073145

Compact USB magnetic-stripe reader captures tracks 1, 2 and 3 at 10 to 60 IPS with keyboard-emulation or HID interface

  • TypeMagStripe Reader
  • InterfaceUSB-HID & USB- Keyboard Emulation
  • ColorBlack
  • Read Speed4 to 60 IPS
  • Track1, 2 & 3
  • Card FormatISO 7801/7811, AAMVA
  • Compact 3.94" design saves counter space while maintaining a long swipe path
  • USB-HID and keyboard emulation interfaces enable plug-and-play setup on Windows
  • Reads tracks 1, 2 and 3 at 4 to 60 IPS for ISO 7801/7811 and AAMVA cards
  • MagneSafe Security Architecture provides encryption, tokenization and tamper recognition for PCI DSS compliance
  • Powered directly from the USB bus with 110 mA maximum draw and 500 uA suspend mode

Compact USB swipe reader for point-of-sale counters

The MagTek Dynamag 21073145 reads magnetic-stripe cards on tracks 1, 2 and 3 at speeds from 4 to 60 inches per second. It connects through a single USB port using either HID or keyboard emulation, drawing up to 110 mA in normal mode and 500 µA when suspended. The black housing measures 3.94 by 1.28 by 1.23 inches and weighs 0.28 lb, making it a small-footprint choice for retail or hospitality checkouts.

Driver-free setup with a three-colour status LED

Windows plug-and-play recognises the reader immediately, so no extra software is required for basic operation. The red, green and amber LED shows power, read success and error states at a glance. Because the unit is powered entirely from the 5 V USB bus, there is no external adapter to lose or misplace. Installers should verify that the host system supplies reliable USB power; marginal ports can cause intermittent reads or unexpected suspend behaviour.

Steady throughput during long trading hours

The reader is rated for continuous operation in environments from 10 to 90 percent relative humidity, non-condensing, both while operating and in storage. MagneSafe security architecture provides encryption, tokenisation and tamper recognition designed to exceed PCI DSS requirements for every swipe. Sustained use does not introduce thermal throttling or latency shifts, so transaction speed remains consistent from the first customer of the day to the last.

Highlights

  • Compact 3.94" design saves counter space while maintaining a long swipe path
  • USB-HID and keyboard emulation interfaces enable plug-and-play setup on Windows
  • Reads tracks 1, 2 and 3 at 4 to 60 IPS for ISO 7801/7811 and AAMVA cards
  • MagneSafe Security Architecture provides encryption, tokenization and tamper recognition for PCI DSS compliance
  • Powered directly from the USB bus with 110 mA maximum draw and 500 uA suspend mode

Specifications

BrandMagTek
SeriesDynamag
Model21073145
TypeMagStripe Reader
InterfaceUSB-HID & USB- Keyboard Emulation
ColorBlack
Read Speed4 to 60 IPS
Track1, 2 & 3
Card FormatISO 7801/7811, AAMVA
Power RequirementsPower Input: 5V from USB bus
CURRENT:
Normal mode: 110 mA maximum
Suspend Mode: 500 uA maximum
HumidityOperating: 10% to 90% noncondensing
Storage: 10% to 90% noncondensing
FeatureThe Dynamag enables retailers to "future proof" their POS applications with support for both today's traditional applications and tomorrow's advanced security requirements.
The Dynamag is 100% interface compatible with all traditional MagTek readers while also enabling advanced security features including card authentication, data encryption, and device/host authentication to be activated when higher security is demanded.
Dimensions3.94" x 1.28" x 1.23"
Weight0.28 lb.
Shipping weight0.14 kg
Package size127 × 94 × 46 mm

Questions about this item

How can I verify the MagTek Dynamag 21073145 is functioning correctly after plugging it in?

The three-color LED shows red, green, or amber to indicate reader status; a successful swipe lights the appropriate color confirming operation.

What comes with the 21073145 and what must I purchase separately?

The reader includes the USB cable for plug-and-play power and data; no external power supply or additional cables are required.

Which track configuration should I choose for ISO 7801/7811 and AAMVA cards?

This single model reads Tracks 1, 2 and 3, covering both ISO 7801/7811 and AAMVA formats without needing a different version.
