MagTek, Inc

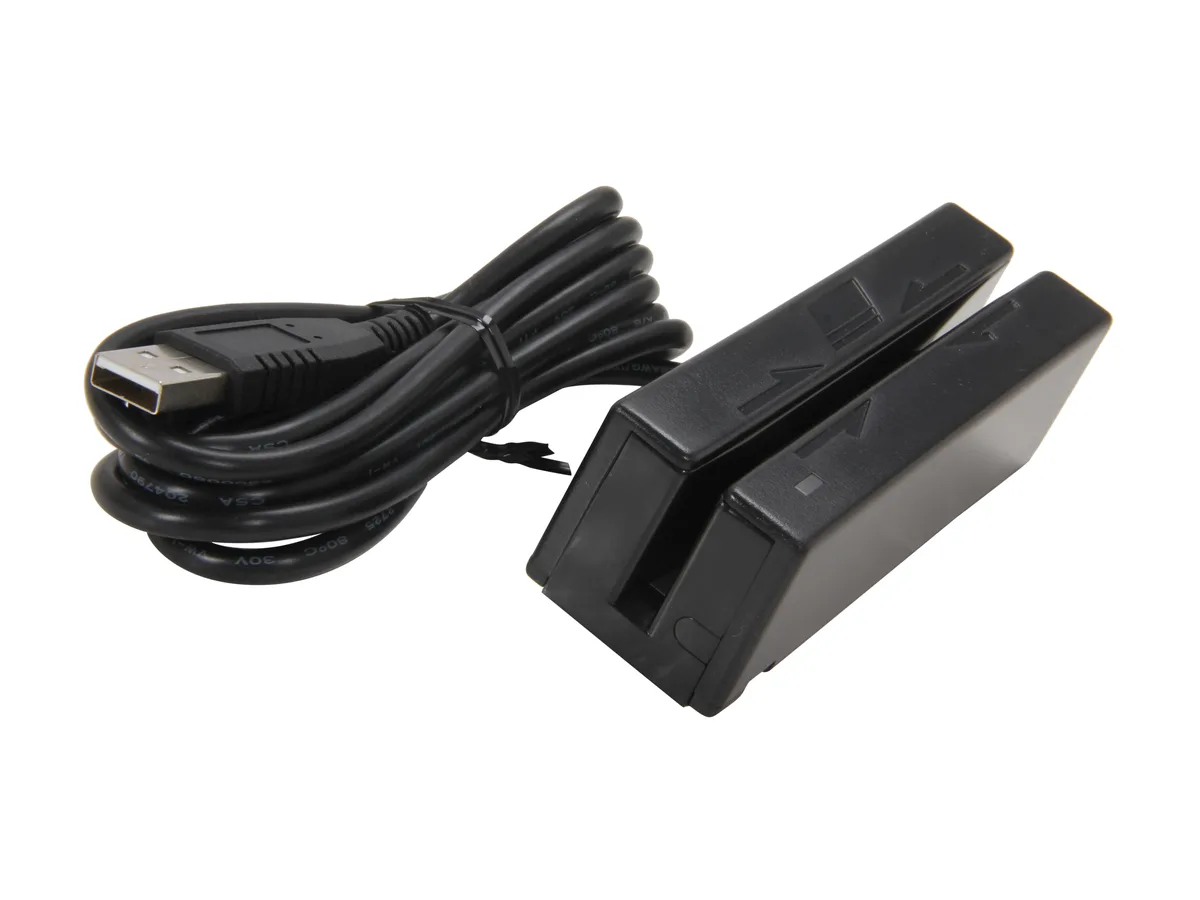

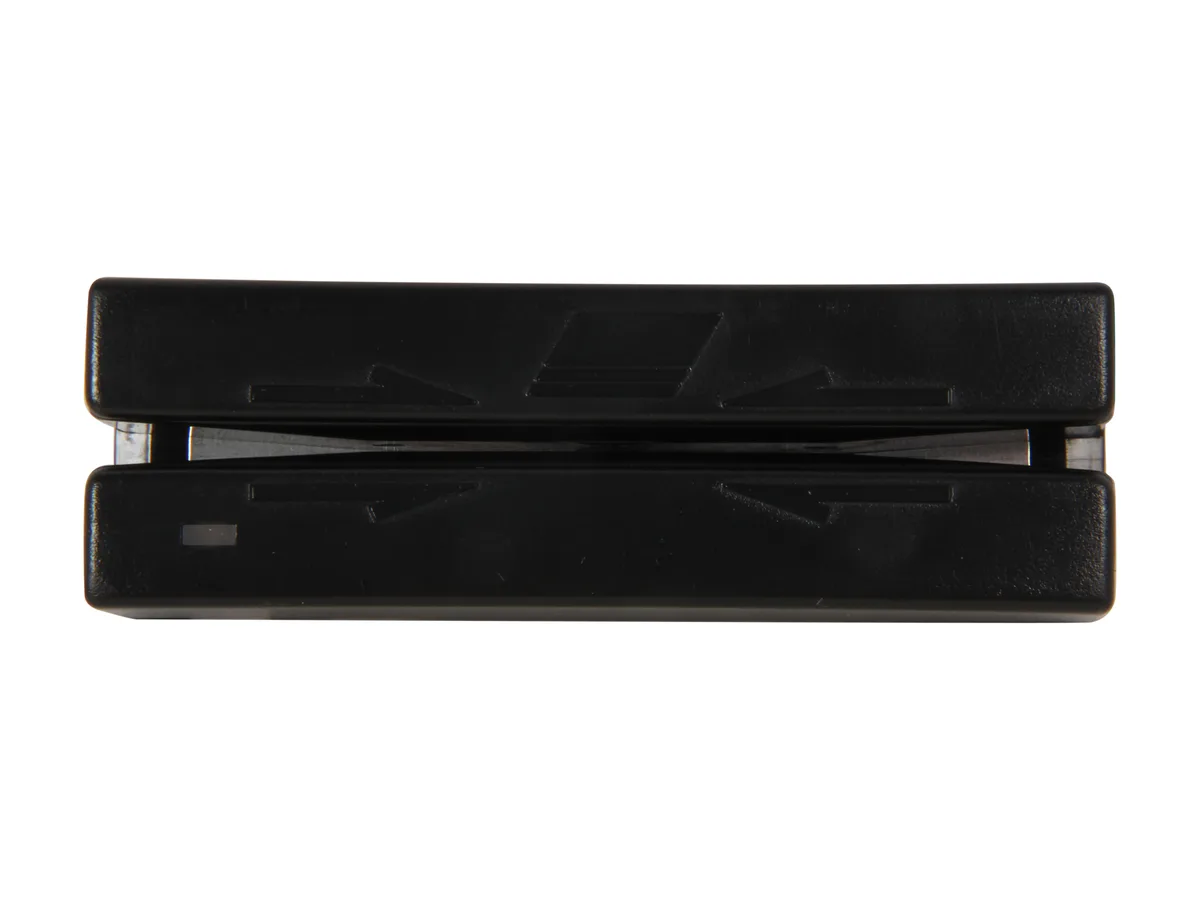

MagTek, Inc 21040110 USB credit card reader
USB magnetic-stripe reader captures track 1 and 2 data at up to 60 IPS with keyboard emulation
- TypeMagStripe Reader
- InterfaceUSB-Keyboard Emulation
- ColorBlack
- Read Speed3 to 60 IPS
- Track1 & 2
- Card FormatISO/AAMVA /JIS
- Reads cards in either direction with bidirectional swipe
- Connects instantly via USB keyboard emulation no drivers needed
- Powered directly from the USB bus no external supply
- Compact 3.94" x 1.28" x 1.23" design fits any counter
- Durable head rated for 1,000,000 passes with ISO cards
USB credit-card reader for point-of-sale
The MagTek 21040110 is a magnetic-stripe reader that connects through a USB port and presents itself as a keyboard-emulation device. It reads track 1 and track 2 data from cards conforming to ISO, ANSI, CDL and AAMVA standards at speeds from 3 to 60 inches per second. The unit draws power from the USB bus so no external supply is needed.
Thermals noise and power in daily use
Because the reader is powered entirely by the USB connection its power draw is minimal and it generates no audible noise or noticeable heat during operation. The electronics are rated for 125,000 hours MTBF while the head is rated for one million passes with ISO-conforming cards. Operating temperature range is 0 °C to 55 °C and storage range is –30 °C to 70 °C.
Bundled cable and emulation modes

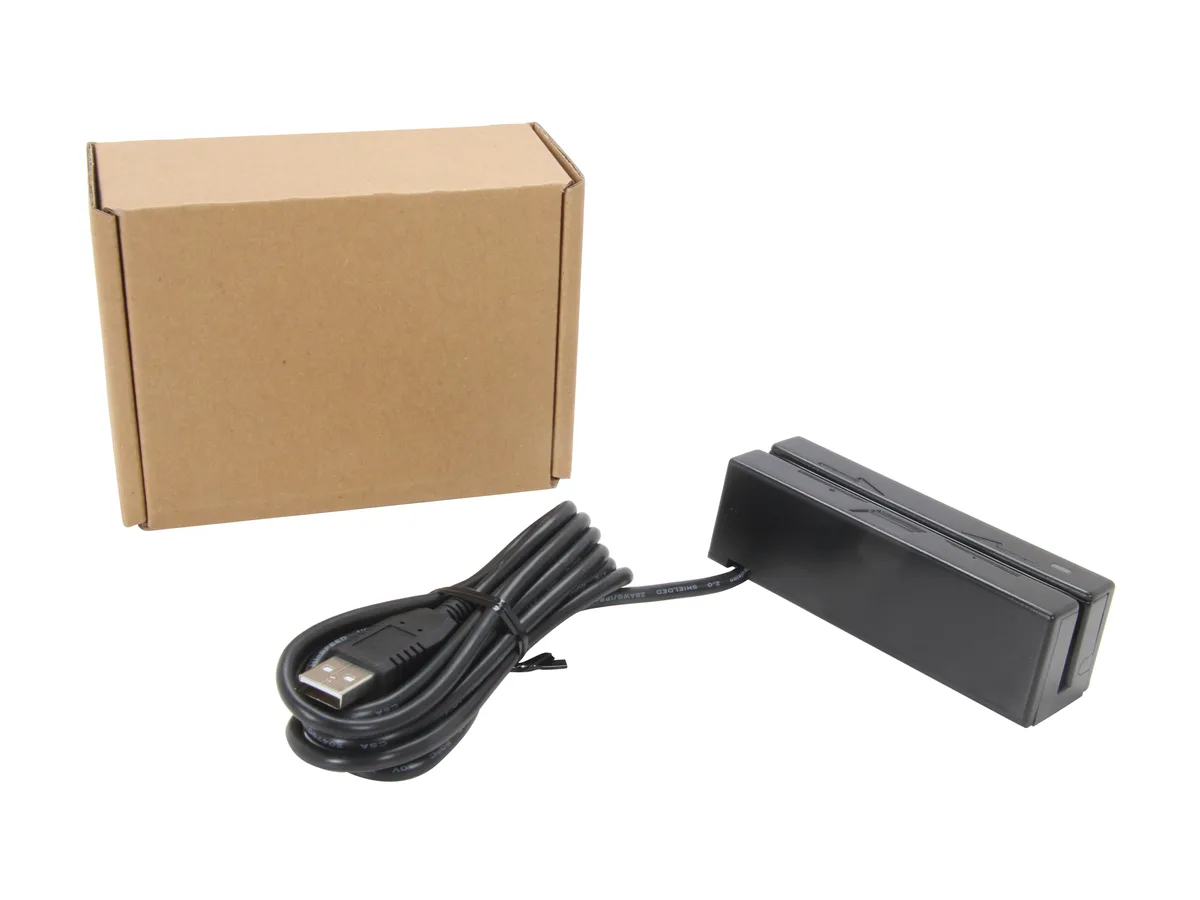

The package includes a USB interface cable that enables immediate connection to any computer or terminal with a USB 1.1 port. The device supports both USB HID class vendor-defined MSR emulation and keyboard emulation, allowing software to receive card data either as raw track information or as simulated keystrokes without extra drivers.
Highlights
- Reads cards in either direction with bidirectional swipe
- Connects instantly via USB keyboard emulation no drivers needed
- Powered directly from the USB bus no external supply
- Compact 3.94" x 1.28" x 1.23" design fits any counter
- Durable head rated for 1,000,000 passes with ISO cards
Specifications
| Brand | MagTek |
|---|---|
| Model | 21040110 |
| Type | MagStripe Reader |
| Interface | USB-Keyboard Emulation |
| Color | Black |
| Read Speed | 3 to 60 IPS |
| Track | 1 & 2 |
| Card Format | ISO/AAMVA /JIS |
| Feature | Hardware Compatible with PC or any computer or terminal with a USB interface Bidirectional card reading LED for status Compatible with USB specification Revision 1.1 Compatible with HID specification Version 1.1 Can use standard Windows drivers for communications. No third part device driver is required. Many programmable configuration options Non-volatile memory for configuration storage Built-in 6 foot USB cable |
| Dimensions | 3.94" x 1.28" x 1.23"(L x W x H) |
| Weight | 4.5 oz. (127.57 g) |
| Shipping weight | 0.17 kg |
| Package size | 127 × 91 × 48 mm |
Questions about this item
How do I install the MagTek 21040110 reader and what step is often missed?
Plug the included USB cable into any USB port; the device draws power from the bus so no external supply is needed. The step people miss is confirming the OS has loaded the HID keyboard-emulation driver before the first swipe.
What maintenance or replacement will the MagTek 21040110 need later?
The magnetic head is rated for 1,000,000 passes with ISO-conforming cards; after that the head should be replaced to maintain reliable reads.
What limit appears first during sustained heavy use of the MagTek 21040110?
The head life of 1,000,000 passes is reached well before the electronics MTBF of 125,000 hours, so head wear is the first limit under continuous swiping.
