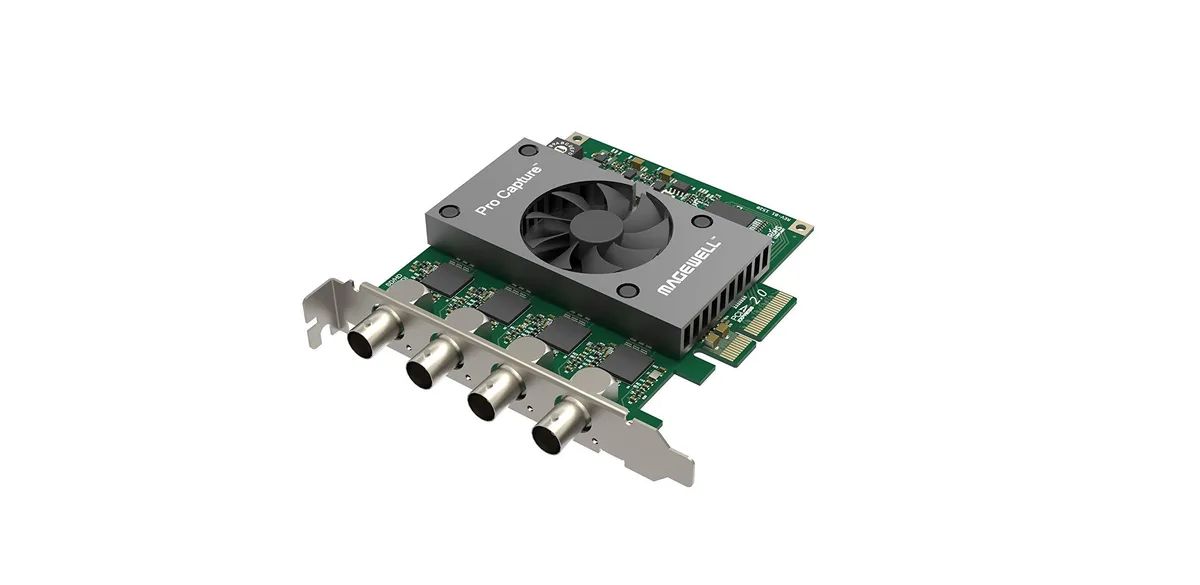

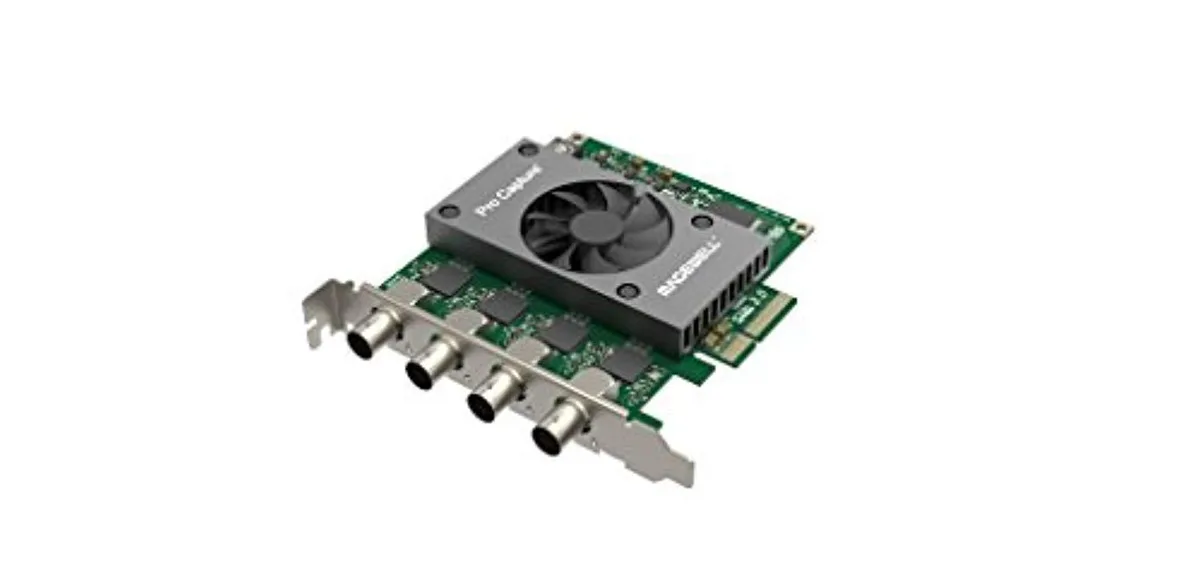

Green PCB capture card with four BNC ports and PCIe x4 edge connector

Magewell

Magewell 11090 Pro Capture Quad SDI 4-Channel HD Capture Card

SKU CH-C08H-X8AP0

Four-channel PCIe Gen2 x4 card captures four independent SD/HD/3G-SDI feeds up to 2048×2160 at 144 fps with on-board scaling and de-interlacing

  • TypeVideo Capture & Editing
  • SpecificationsSupported APIs: Windows - DirectShow - DirectKS - Wave API/D
  • InterfacePCIe Gen2 x4
  • Video SystemVideo Processing Features: Two video processing pipelines wi
  • Video FormatVideo Capture Formats: Support for capture image resolutions
  • Ports In4x BNC: SD/HD/3G SDI
  • Capture four SD/HD/3G-SDI sources simultaneously via four BNC inputs
  • Process each stream at up to 144 frames per second with 10-bit colour depth
  • Scale, crop and de-interlace video on-board using dual 180 Mpixels/s pipelines
  • Works with Windows, Linux and macOS through DirectShow, V4L2 and ALSA APIs
  • Fits a PCIe Gen2 x4 slot and runs continuously 24/7 with SG-DMA transfer

Four-Channel SDI Capture

The Magewell 11090 Pro Capture Quad SDI captures four independent SD, HD or 3G-SDI streams through BNC connectors on a single PCIe Gen2 x4 card. It suits broadcast engineers, live-event producers and multi-camera streaming setups that need simultaneous ingest on Windows, Linux or macOS systems.

Check PCIe Slot and OS Support

Verify your motherboard has a free PCIe Gen2 x4 or larger slot and that your operating system is Windows 7 through 10, Linux with V4L2 or macOS 10.9 through 10.12. The card draws power from the slot and requires no external supply, but available bus bandwidth may limit maximum frame rates at higher resolutions.

For Multi-Source SDI Workflows

This card fits installations that must capture four SDI sources at once for switching, recording or streaming. It is not for users who only need a single capture input, who rely on HDMI or analogue sources, or who require onboard encoding to formats the driver does not expose.

Highlights

  • Capture four SD/HD/3G-SDI sources simultaneously via four BNC inputs
  • Process each stream at up to 144 frames per second with 10-bit colour depth
  • Scale, crop and de-interlace video on-board using dual 180 Mpixels/s pipelines
  • Works with Windows, Linux and macOS through DirectShow, V4L2 and ALSA APIs
  • Fits a PCIe Gen2 x4 slot and runs continuously 24/7 with SG-DMA transfer

Specifications

BrandMagewell
Model11090
TypeVideo Capture & Editing
SpecificationsSupported APIs:
Windows
- DirectShow
- DirectKS
- Wave API/DirectSound/WASAPI
Linux
- V4L2
- ALSA
Supported Software:
VLC
VirtualDub
OBS
xSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software
Input Features: Support for input video resolutions up to 2048x1080 pixels
SDI Specific Features:
Integrated cable equalizer supporting cable lengths up to 230M for HD signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
Support for 2K (2048x1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampl
InterfacePCIe Gen2 x4
Video SystemVideo Processing Features:
Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
- Weave
- Blend top & bottom field
- Top field only
- Bottom field only
Video aspect ratio conversion
- Auto or manual selection of input aspect ratio
- Auto or manual selection of capture aspect ratio
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
- Auto or manual selection of input color format & quantization
Video FormatVideo Capture Formats:
Support for capture image resolutions up to 2048x2160 pixels
Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = ~80fps. )
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
Ports In4x BNC: SD/HD/3G SDI
Mac CompatibleYes
Operating Systems SupportedWindows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
OS X 10.9-10.11
macOS 10.12

Questions about this item

Does the card include the SDI cables or must they be purchased separately?

The card provides four BNC input ports for SD/HD/3G-SDI signals; cables are not included and must be sourced separately.

Is there a choice of capacities or versions for the 11090 model?

The Pro Capture Quad SDI 11090 is a single four-channel configuration; no alternative capacity or version options are offered.

What does the 2048×2160 capture resolution mean when the card is installed in a system?

It supports input resolutions up to 2048×2160 at frame rates up to 144 fps, with actual throughput limited by the PCIe Gen2 x4 bandwidth available in the host.
