Transparent octal plug-in relay housing with eight pins and DIP switches

Macromatic

Macromatic TD-88162 Multifunction Time Delay Relay, Octal, 16 Functions

SKU CH-XCZE-SB1MA

A multi-function time-delay relay with 16 selectable functions, octal base, and SPDT contacts rated 10 A at 240 V AC or 30 V DC

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • 16 delay functions selectable via DIP switch
  • 10 A contact rating at 240 V AC and 30 V DC
  • 05 s minimum to 230 hr maximum timing range
  • Octal 8-pin plug-in base for quick socket mounting
  • IP20 enclosed housing protects internal components

Industrial Control Relay

The Macromatic TD-88162 is a plug-in multifunction time delay relay built for industrial electrical controls and automation. It operates on 120V AC/DC input voltage and provides 16 selectable delay functions via DIP switch adjustment. The octal base with eight pins fits standard sockets for straightforward panel installation.

Replaces Single-Function Timers

This unit consolidates up to sixteen separate timing relays into one enclosure, reducing inventory and wiring complexity. The upgrade is worth it when a machine sequence requires multiple distinct delay modes such as on-delay, off-delay, interval or recycle timing. Adjustable range spans from 0.05 seconds to 10,230 hours for broad application coverage.

Fits Standard Octal Sockets

The relay mounts directly into an octal socket with flat-pin connection, freeing DIN rail space and simplifying maintenance swaps. Its SPDT contacts switch 10 A at 240V AC or 10 A at 30V DC for direct load control. The enclosed IP20 housing suits indoor panels without additional sealing.

Highlights

  • 16 delay functions selectable via DIP switch
  • 10 A contact rating at 240 V AC and 30 V DC
  • 05 s minimum to 230 hr maximum timing range
  • Octal 8-pin plug-in base for quick socket mounting
  • IP20 enclosed housing protects internal components

Specifications

BrandMACROMATIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What socket or base does the TD-88162 plug into?

The relay uses an octal plug-in base with eight pins and fits a standard octal socket for panel or DIN-rail mounting.

How do I set one of the 16 delay functions on the TD-88162?

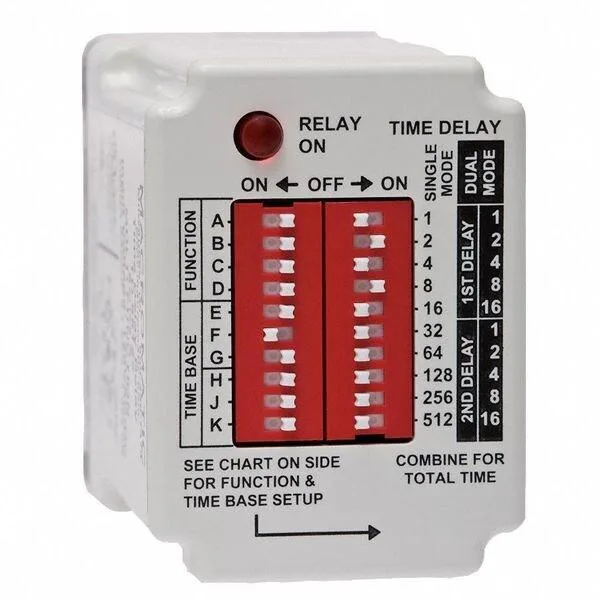

Select the desired function and time range using the DIP-switch adjustment on the front of the unit before applying power.

When should the TD-88162 be replaced?

Replace the relay if the SPDT contacts no longer switch the rated 10 A at 240 V AC or 30 V DC, or if the enclosure shows heat damage.
