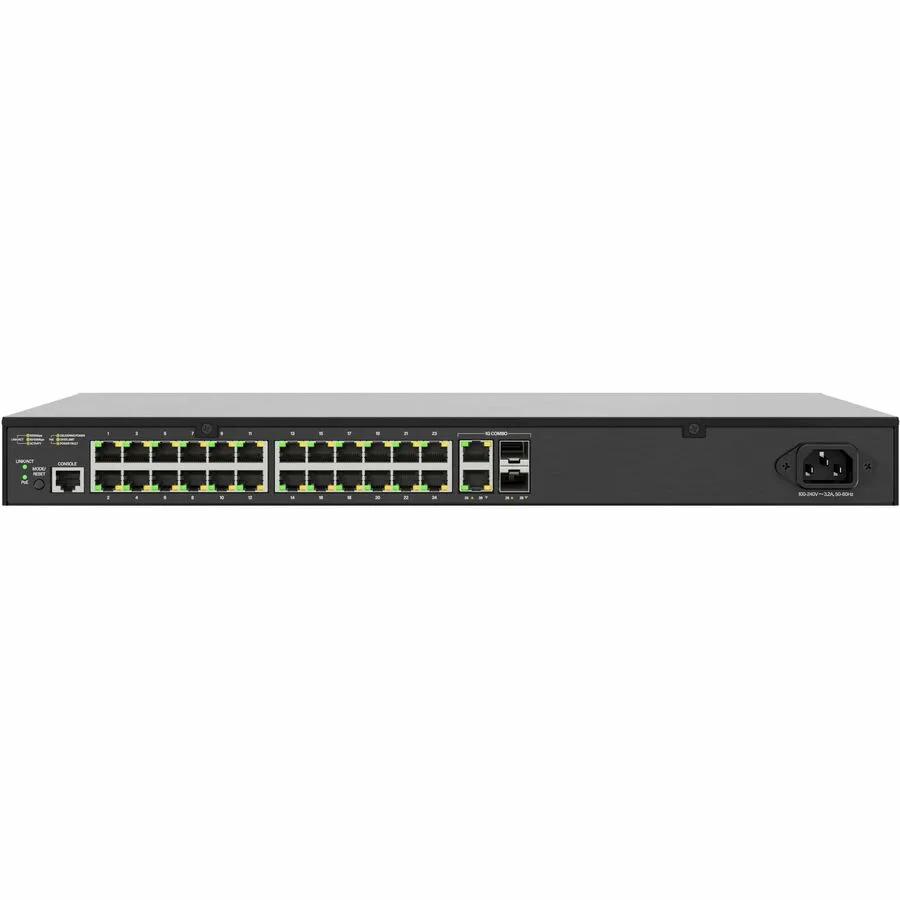

Black rackmount network switch with 24 front RJ-45 ports and two rear combo SFP RJ-45 uplinks

Luxul

Luxul SW-505-24P-R 24-port PoE+ managed network switch

SKU CH-NQYY-Q0XZX MPN SW-505-24P-R

A rack-mount managed switch with 24 PoE+ Gigabit ports and two 1 Gbps combo uplinks for fiber or copper

  • Switch TypeManaged
  • FormatRackmount
  • StandardsIEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3az, 802.3x, 802.3a
  • Network MediaTwisted Pair; Optical Fiber
  • Network Management TypeManaged
  • Uplink Ports2
  • 24 PoE+ ports power cameras and access points directly
  • 2 combo SFP/RJ45 uplinks add fibre or copper flexibility
  • L2/L3 management via web GUI CLI SNMP Telnet
  • 16K MAC table and 4.1 Mb buffer handle heavy traffic
  • 66 Mpps forwarding rate keeps data moving at line speed

24-port PoE+ managed switch

The Luxul SW-505-24P-R is a rackmount managed switch with 24 Gigabit Ethernet PoE+ ports and two combo SFP/RJ45 uplinks. It supports Layer 2 and Layer 3 management through web GUI, CLI, SNMP and Telnet. The unit provides a 16K MAC address table and 4.1 Mb buffer memory for store-and-forward switching.

Suited for networks powering PoE devices

This switch fits installations that need to power wireless access points, IP cameras or VoIP phones over the 24 PoE+ ports while managing traffic via VLANs, QoS and 802.1X security. It is not for buyers who require 10 Gbps uplinks, stacking capability or a higher PoE power budget than the standard PoE+ allocation provides.

Rackmount install with standard management

The 1U rackmount form factor fits standard cabinets and the rear-facing ports keep cabling tidy. Configuration uses familiar web, CLI or SNMP tools, though the feature set is broad and may require study. Common issues include underestimating the total PoE budget when loading all 24 ports and overlooking the need for compatible SFP modules on the uplinks.

Highlights

  • 24 PoE+ ports power cameras and access points directly
  • 2 combo SFP/RJ45 uplinks add fibre or copper flexibility
  • L2/L3 management via web GUI CLI SNMP Telnet
  • 16K MAC table and 4.1 Mb buffer handle heavy traffic
  • 66 Mpps forwarding rate keeps data moving at line speed

Specifications

BrandLuxul
SeriesSW-505
ModelSW-505-24P-R
Part NumberSW-505-24P-R
Switch TypeManaged
FormatRackmount
StandardsIEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3az, 802.3x, 802.3ad, 802.1Q, 802.1p, 802.1D, 802.1w, 802.1s, 802.1X, 802.3af, 802.3at
Network MediaTwisted Pair; Optical Fiber
Network Management TypeManaged
Uplink Ports2
Uplink InterfaceSFP, RJ45 Combo
Uplink Speed1 Gbps
Uplink Speed/Type1 Gbps Combo SFP/RJ45
Primary Port Count24
Primary Ports24 x Gigabit Ethernet PoE+
Primary Port Speed10/100/1000 Mbps
Primary Port TypeRJ-45
Management InterfaceWeb GUI, CLI, SNMP, Telnet
Management FeatureL2/L3 Managed
MAC Address Table16K
Switching MethodStore and Forward
VLAN SupportYes
Jumbo FramesYes
Packet Forwarding Rate41.66 Mpps
Buffer Memory4.1 Mb
IPv4 FeaturesYes
ProtocolsTCP/IP, UDP, ARP, ICMP, BOOTP, DHCP
Security802.1X, ACL, Port Security
PoEYes (PoE+)
StackableNo
Layer3
PoE PortsYes (PoE+)
PoE Power BudgetYes (PoE+)
FeaturesYes
Shipping weight3.86 kg
Package size528 × 297 × 94 mm

Questions about this item

What cabling and SFP modules do I need to use the 24 PoE+ RJ-45 ports and the two 1 Gbps combo uplink ports?

The 24 primary ports accept Cat5e or better twisted-pair cable for 10/100/1000 Mbps PoE+ connections. The two uplink ports are combo RJ-45/SFP; use a copper patch cord in the RJ-45 slot or insert a 1 Gbps SFP transceiver for optical fiber links.

Will my existing 10/100 Mbps cameras and access points work on the 24 PoE+ ports without reconfiguration?

Yes. Each primary port auto-negotiates 10, 100 or 1000 Mbps and supplies PoE+ power per IEEE 802.3af/at, so legacy 10/100 devices power up and pass traffic immediately.

How can I verify the switch is forwarding at line rate after installation?

Check the Web GUI, CLI or SNMP counters for a packet forwarding rate approaching 41.66 Mpps and confirm the 16K MAC address table is populating without frame drops in the 4.1 Mb buffer.
