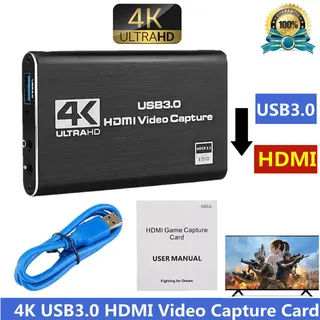

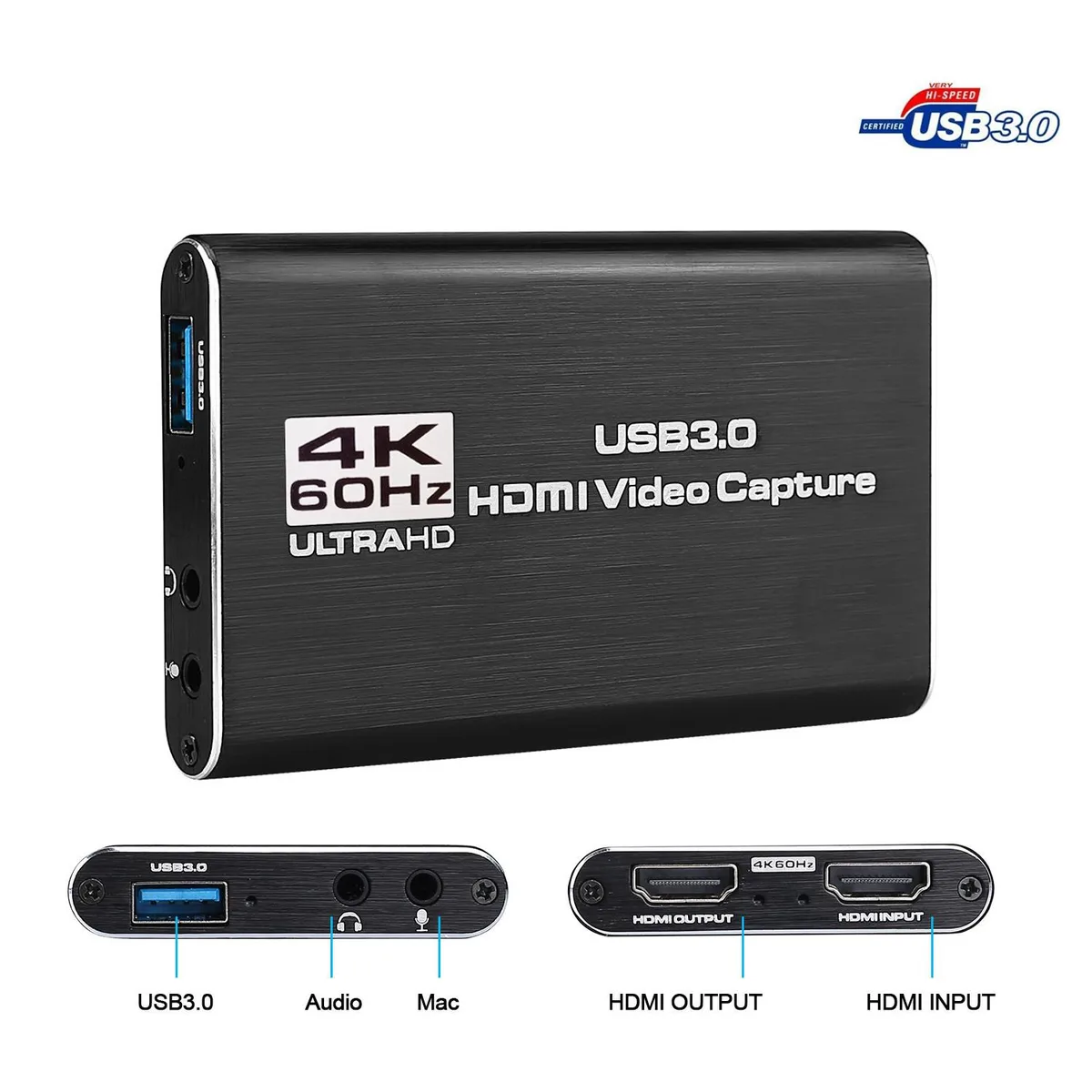

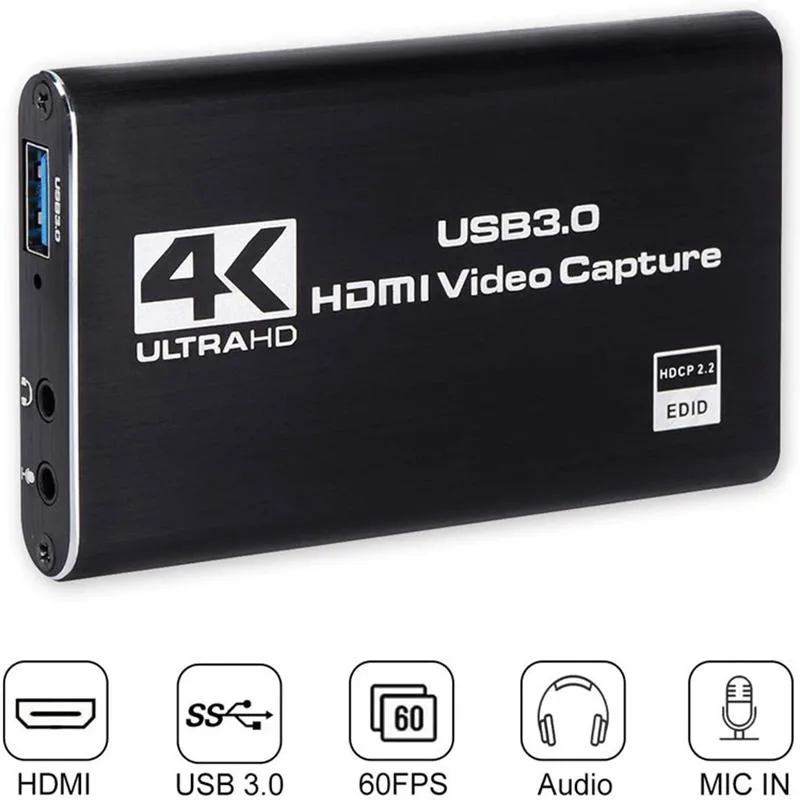

Small black rectangular capture box with HDMI ports and USB 3.0 cable

LUOM

LUOM YCY-2353 Video Capturing Device 1080P 60fps 4K HDMI USB 3.0

SKU CH-F9F9-0WTPQ

Captures 1080p 60fps video from HDMI sources with 4K pass-through, USB 3.0 plug-and-play, 3.5 mm audio I/O and multi-OS support

  • InterfaceUSB 3.0
  • 3D SupportYes
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 4K Video
  • Video Sampling4:2:2 and 4:4:4
  • 1080p 60 fps capture for smooth recordings
  • 4K 30 Hz HDMI pass-through to a display
  • USB 3.0 plug-and-play with no driver needed
  • 5 mm audio in and out for live monitoring
  • Works with Windows, macOS, Linux and Android

What this capture device does

The LUOM YCY-2353 captures one HDMI video channel at up to 1080p 60fps while the HDMI input accepts 4K 30Hz signals. It connects through a USB 3.0 port and requires no driver installation on Windows, macOS, Linux or Android. The unit also provides an HDMI loop-through output, 3.5 mm stereo audio monitoring and a 3.5 mm microphone input.

How it fits into a streaming setup

Plug the source into the HDMI input and the loop-through into a display for simultaneous play and capture. The single USB 3.0 link carries video and audio to the host without an external power adapter. Built-in automatic format detection sets the output size and frame rate, and the hardware encoding avoids CPU load during recording or live streaming.

Who this suits and who should look elsewhere

Creators recording gameplay from PS4, Xbox One, Switch or cameras at 1080p 60fps will find the plug-and-play workflow convenient. Buyers needing 4K 60fps capture, multi-channel input or internal PCIe installation cannot use this device. Users without a USB 3.0 port or who require SDI workflows should consider other options.

Highlights

  • 1080p 60 fps capture for smooth recordings
  • 4K 30 Hz HDMI pass-through to a display
  • USB 3.0 plug-and-play with no driver needed
  • 5 mm audio in and out for live monitoring
  • Works with Windows, macOS, Linux and Android

Specifications

BrandLUOM
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
3D SupportYes
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 4K Video
Video Sampling4:2:2 and 4:4:4
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
SDI2 Out
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

What is the highest frame rate the LUOM YCY-2353 can sustain at 1080p?

The device captures at 1080p 60fps via USB 3.0. HDMI input accepts 4K at 30Hz but output remains 1080p 60fps.

Does the capture card need a fan or external power when streaming for hours?

No external power supply is required. It draws power from the USB 3.0 port and has no moving parts, so it runs silently.

Which cables and ports must my source and display already have to use this capture device?

Source needs an HDMI output. Display needs an HDMI input. A USB 3.0 port on the host computer is also required.
