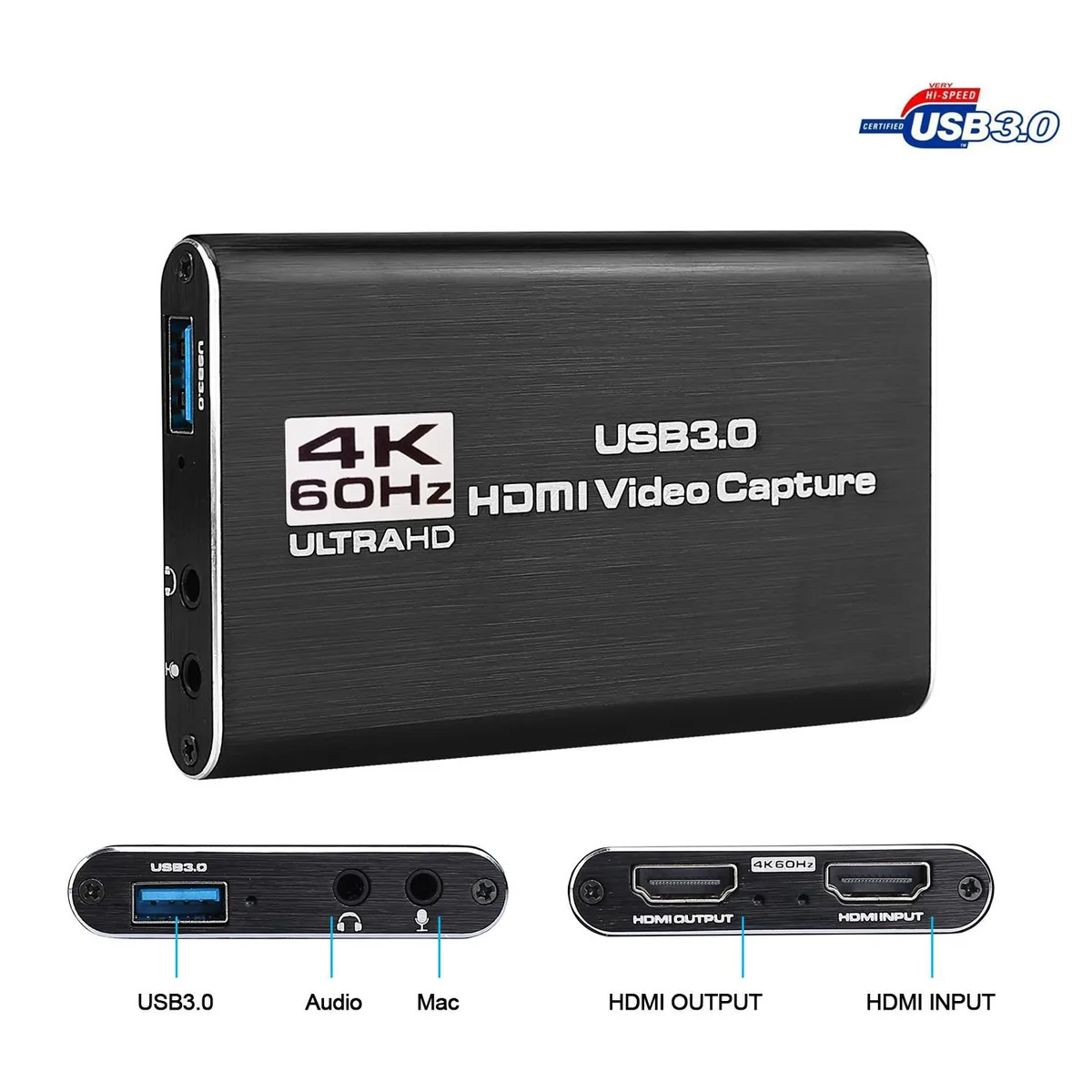

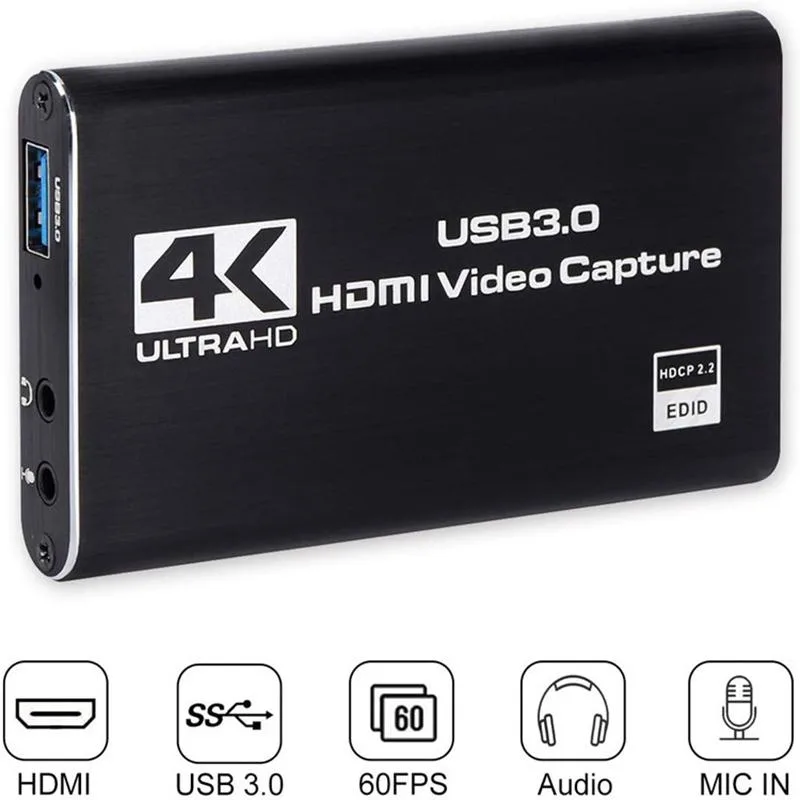

Black rectangular dongle with HDMI ports and 3.5 mm jacks

LUOM

LUOM YCY-2353 USB 3.0 HDMI Video Capturing Device 1080P 60fps

SKU CH-9JCT-0V3RH

Captures 1080p 60fps HDMI video via USB 3.0 with 4K passthrough, 3.5 mm mic input and headphone monitoring

  • InterfaceUSB 3.0
  • 3D SupportYes
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 4K Video
  • Video Sampling4:2:2 and 4:4:4
  • Capture 1080p video at 60fps for smooth recordings
  • USB 3.0 interface enables driver-free plug-and-play setup
  • HDMI input and output allow simultaneous monitoring while capturing
  • 5 mm microphone and stereo audio ports for live commentary
  • Compatible with Windows, MacOS, Linux and Android systems

What this capture device does

The LUOM YCY-2353 captures a single HDMI channel at 1080P 60fps and passes the signal through its HDMI output for simultaneous local viewing. It connects via USB 3.0 and is recognised instantly as a webcam on Windows, macOS, Linux and Android without driver installation.

Practical limits of the USB 3.0 interface

USB 3.0 bandwidth caps recorded footage at 1080P 60fps even though the HDMI input accepts 4K 30Hz signals. The device encodes to common formats such as MP4 and MOV using 4:2:2 or 4:4:4 chroma sampling and 48 KHz PCM audio.

Deciding spec: HDMI pass-through with audio I/O

A built-in HDMI output mirrors the source to a display while 3.5 mm stereo jacks handle headphone monitoring and microphone input. This makes the unit suitable for streaming setups that need local preview and live commentary, but it cannot capture multiple sources or record at 4K resolution.

Highlights

  • Capture 1080p video at 60fps for smooth recordings
  • USB 3.0 interface enables driver-free plug-and-play setup
  • HDMI input and output allow simultaneous monitoring while capturing
  • 5 mm microphone and stereo audio ports for live commentary
  • Compatible with Windows, MacOS, Linux and Android systems

Specifications

BrandLUOM
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
3D SupportYes
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 4K Video
Video Sampling4:2:2 and 4:4:4
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
SDI2 Out
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

Should I choose the 1080p 60fps capture mode or the 4K 30Hz HDMI input for my stream?

Capture records at 1080p 60fps; the HDMI input accepts 4K at 30Hz for pass-through to the loop-out port.

Will the 1080p 60fps recording look smooth on my viewers' screens?

Yes, the device encodes 1080p at 60 frames per second with 4:2:2 or 4:4:4 colour sampling for fluid motion.

Does the USB 3.0 connection limit the 1080p 60fps capture in any way?

USB 3.0 bandwidth handles 1080p 60fps uncompressed; no driver is needed on Windows, macOS, Android or Linux.
