LUOM

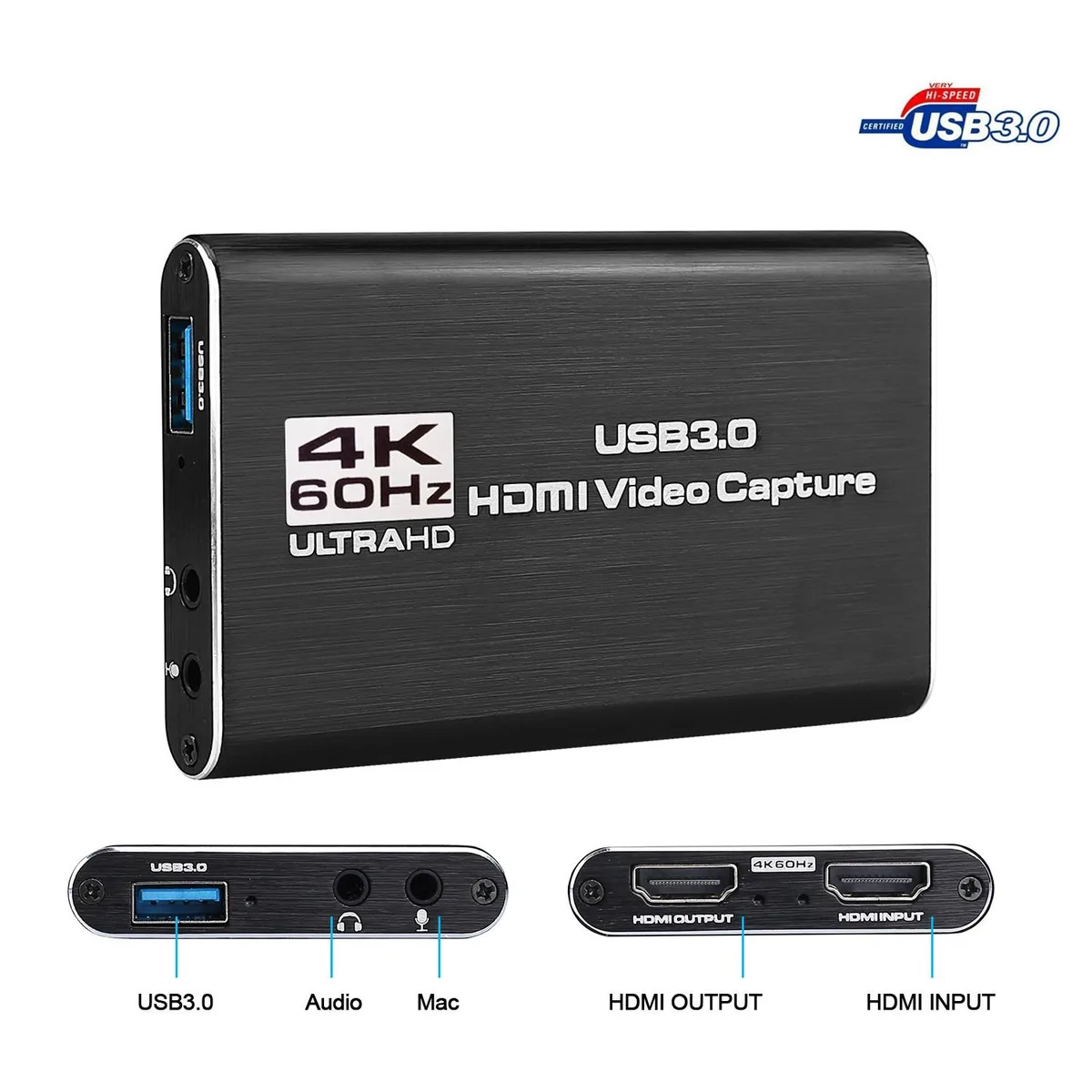

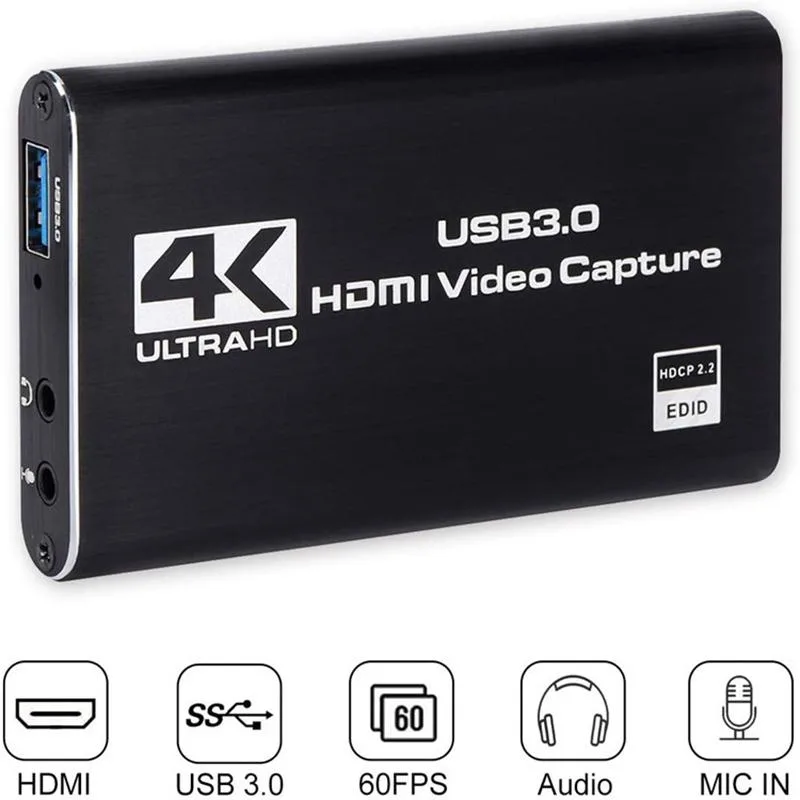

LUOM YCY-2353 USB 3.0 1080P 60FPS 4K Input Video Capturing Device
Captures 1080p 60fps video from HDMI sources with 4K pass-through and 3.5 mm audio monitoring
- InterfaceUSB 3.0
- 3D SupportYes
- FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
- Resolution Support1080P
- Camera ResolutionUp to 4K Video
- Video Sampling4:2:2 and 4:4:4
- Capture 1080p at 60fps for smooth gameplay recording
- Pass-through 4K at 30Hz input to a monitor while streaming
- USB 3.0 plug-and-play with no driver installation needed
- Record 48 KHz PCM audio and monitor via 3.5mm jack
- Works with Windows, macOS, Linux and Android for OBS streaming
What this capture device does
The LUOM YCY-2353 captures one HDMI video channel at up to 1080p 60Hz while accepting 4K 30Hz input. It connects via USB 3.0 and provides an HDMI loop-out for a local display, plus 3.5 mm stereo headphone and microphone jacks for audio monitoring. The unit is powered entirely from the USB port and is recognised as a webcam by Windows, macOS, Linux and Android without installing drivers.
What to verify before ordering
Your source must deliver video over HDMI and your recording or streaming computer needs a free USB 3.0 Type-A port. The device records at 1080p 60fps maximum; 4K signals are accepted but downscaled. It supports 4:2:2 and 4:4:4 chroma sampling and 48 kHz PCM audio. No external power supply is required, but the host port must supply sufficient bus power.
Who this suits and who should look elsewhere
Streamers, educators and conference users who need a portable, driver-free HDMI-to-USB capture solution with pass-through monitoring will find it convenient. Buyers who require 4K 60fps recording, multi-channel input, SDI connectivity or internal PCIe installation cannot meet those needs with this device.
Highlights
- Capture 1080p at 60fps for smooth gameplay recording
- Pass-through 4K at 30Hz input to a monitor while streaming
- USB 3.0 plug-and-play with no driver installation needed
- Record 48 KHz PCM audio and monitor via 3.5mm jack
- Works with Windows, macOS, Linux and Android for OBS streaming
Specifications
| Brand | LUOM |
|---|---|
| Series | YCY-2353 |
| Model | YCY-2353 |
| Interface | USB 3.0 |
| 3D Support | Yes |
| Format | Output Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more |
| Resolution Support | 1080P |
| Camera Resolution | Up to 4K Video |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color | Black |
| Video | The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz; |
| Audio | support 48 KHz PCM audio sampling rate |
| HDMI | 1 Input/1 Output |
| SDI | 2 Out |
| USB Port | 1 |
| S-Video | 1 Input/1 Output |
| LED Indicator | Yes |
| Display | HDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically. |
| Compatibility | The HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok. |
| System Requirements | Windows / Android / MacOS/ Linux ect. |
| Power Consumption | <= 2.5W |
| Power Supply | NO need external power supply |
| Specification | 1. Input interface: 1 HDMI interface; 2. Output interface: USB3.0, 300 ~ 350MB / s throughput; 3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480 4. HDMI sound input: LPCM sound signal; 5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color; 6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 / 1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10 |
| Feature | 1. It can capture single HD HDMI video signal; 2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz; 3. Support MJPEG and YUY2; 4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate; 5. Some win7 need to install the driver; 6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems; 7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth); 8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate; 9. Can automatically detect the i |
| Dimensions | 4.88 x 4.65 x 2.52 inches |
| Weight | 0.035 ounces |
| Package Content | 1 x4K USB3.0 HDMI Audio Video Capture Card; 1 x HDMI Cable; 1xUSB 3.0 Cable; 1 x User Manual; |
| Option | Advanced |
Questions about this item
Does the YCY-2353 come with any cables or do I need to buy an HDMI cable separately?
The capture card has one HDMI input and one HDMI output port. You will need to supply your own HDMI cables to connect a source and a display.
What is the difference between the 4K input and the 1080P 60FPS capture on this model?
The HDMI input accepts a 4K signal at 30Hz, but the recorded video signal is captured at 1080p and 60Hz.
Will the 48 KHz PCM audio be captured in sync with the 1080p 60FPS video over USB 3.0?
Yes, the device supports 48 KHz PCM audio sampling and captures it alongside the 1080p 60Hz video stream via USB 3.0.
