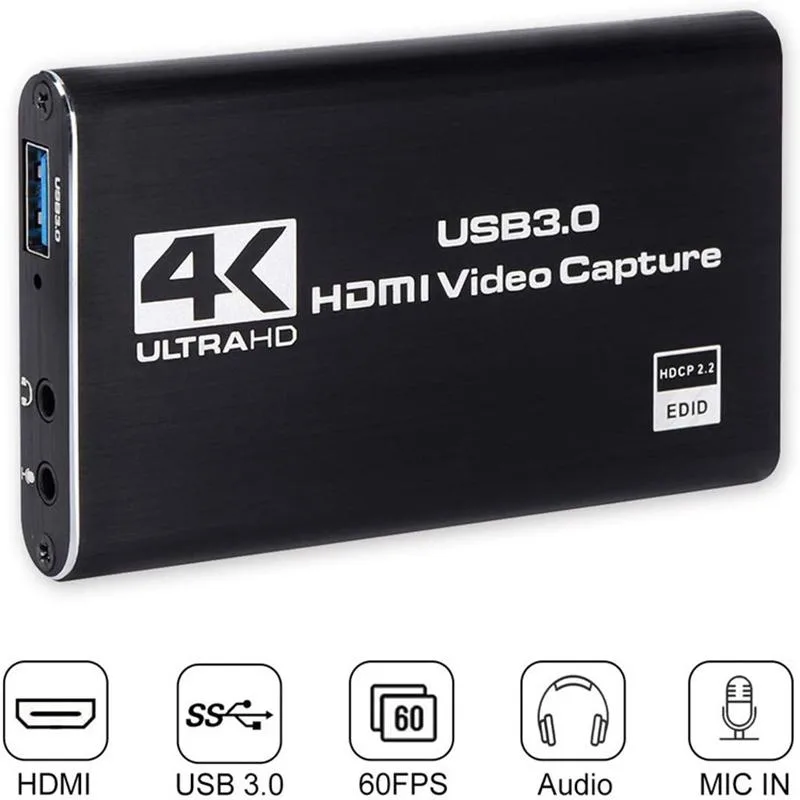

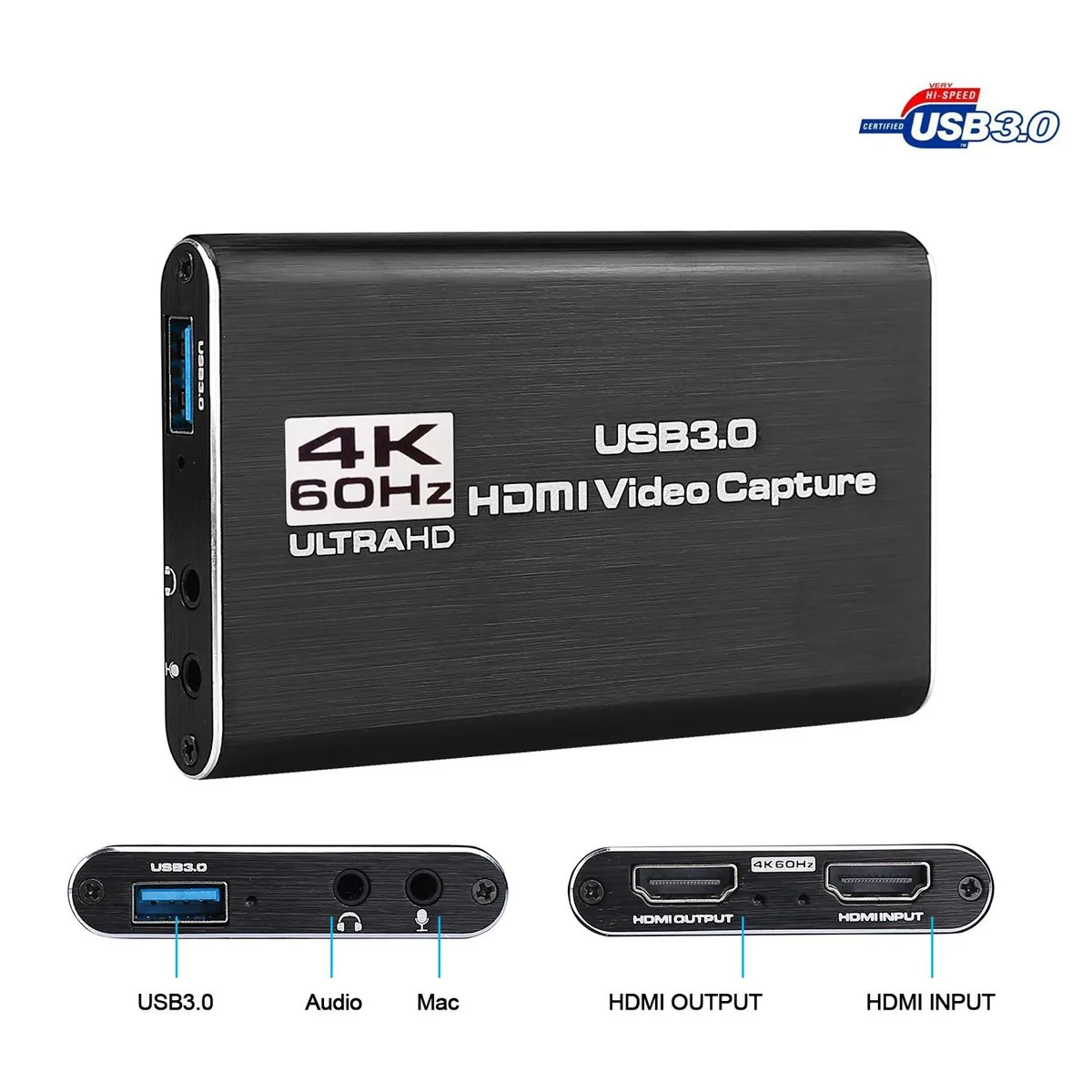

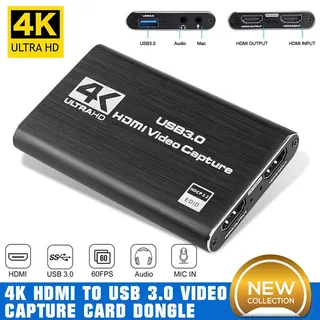

Black rectangular capture card with HDMI in and out, USB 3.0 port, 3.5 mm audio jacks and LED indicator

LUOM

LUOM YCY-2353 USB 3.0 1080P 60FPS 4K HDMI Video Capturing Device

SKU CH-FRXB-GYNHC

Captures 1080p 60fps video from HDMI sources with 4K pass-through and USB 3.0 connectivity

  • InterfaceUSB 3.0
  • 3D SupportYes
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 4K Video
  • Video Sampling4:2:2 and 4:4:4
  • Capture 1080p 60fps video for smooth recordings
  • USB 3.0 interface enables high-speed data transfer
  • HDMI loop-out lets you monitor gameplay live
  • 48 KHz PCM audio capture ensures clear sound
  • Works with Windows, MacOS, Android and Linux

What this capture device does

The LUOM YCY-2353 captures one HDMI video channel at up to 1080p 60Hz while passing a 4K 30Hz signal through its loop-out port. It connects via USB 3.0 and is recognised immediately as a webcam on Windows, macOS, Linux and Android without drivers.

Streamers, teachers, console gamers

Creators who need simultaneous local monitoring and low-latency streaming to OBS, VLC or PotPlayer will benefit from the HDMI loop-out and 48 KHz PCM audio. Users requiring 4K 60Hz capture, internal PCIe installation or multi-channel SDI switching should consider a different class of device.

The deciding specification

The single channel captures at 1080p 60fps while the HDMI input accepts 4K 30Hz, so the highest recordable frame rate at full HD is 60. If your workflow demands 4K 60fps recording this unit cannot deliver it.

Highlights

  • Capture 1080p 60fps video for smooth recordings
  • USB 3.0 interface enables high-speed data transfer
  • HDMI loop-out lets you monitor gameplay live
  • 48 KHz PCM audio capture ensures clear sound
  • Works with Windows, MacOS, Android and Linux

Specifications

BrandLUOM
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
3D SupportYes
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 4K Video
Video Sampling4:2:2 and 4:4:4
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
SDI2 Out
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

What cables and accessories come with the LUOM YCY-2353 capture device?

The device provides one HDMI input, one HDMI output, one USB 3.0 port, one S-Video input and output, a 3.5 mm stereo audio output for headphone monitoring, and a 3.5 mm microphone input for single or dual channel recording.

Should I choose the 4K input or the 1080p60 capture mode for my stream?

The HDMI input accepts 4K at 30 Hz, but the capture engine records at 1080p 60 Hz, so for smooth 60 fps streaming select the 1080p60 mode; use 4K input only when the source is locked to 30 Hz.

What does the 1080p 60 Hz capture specification mean when I connect a game console?

The console can output up to 4K 30 Hz into the HDMI input, yet the device captures and streams at 1080p 60 Hz with 48 KHz PCM audio, delivering fluid 60 fps footage to OBS, VLC or other supported software.
