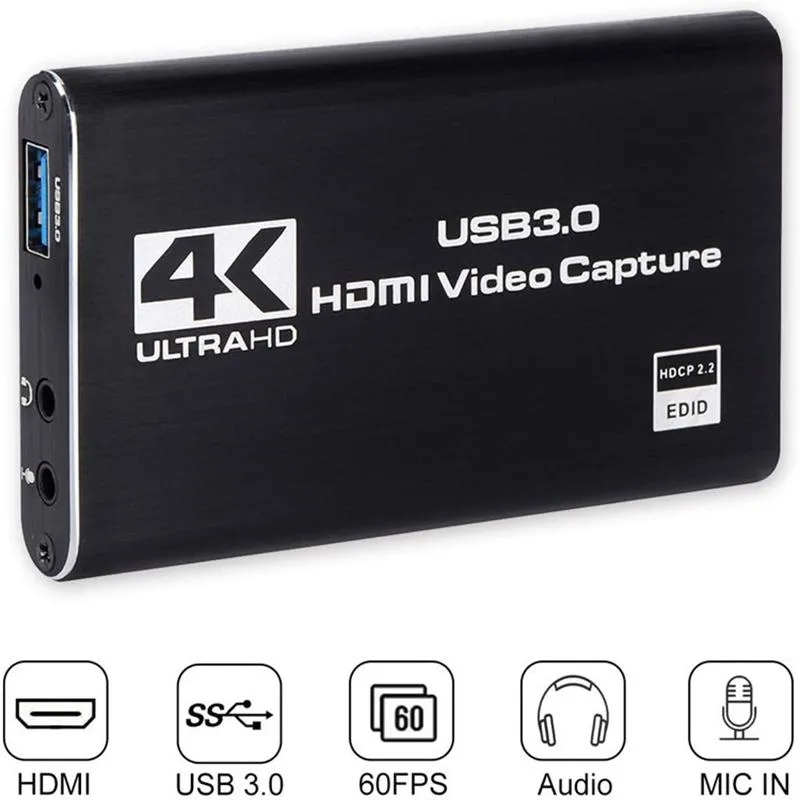

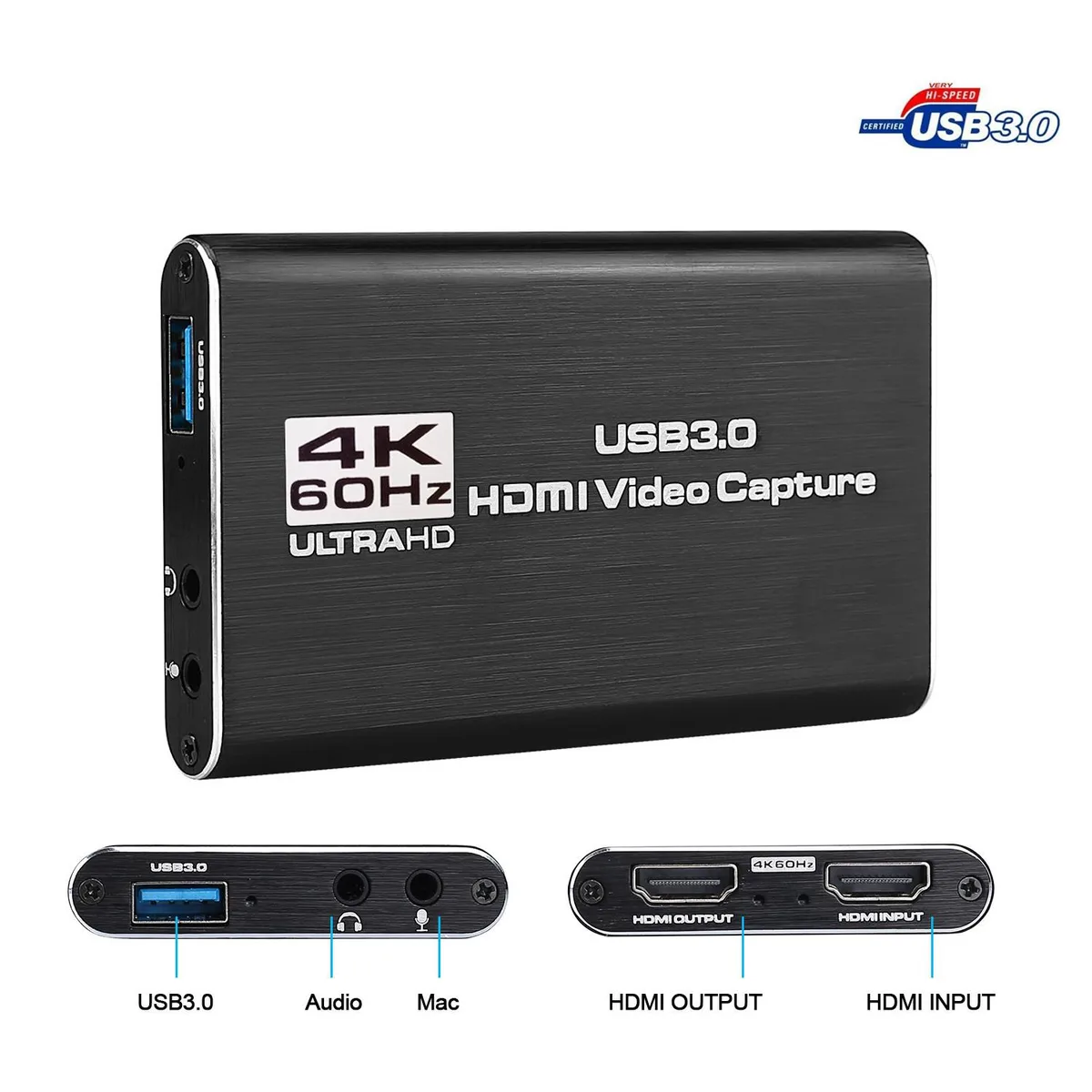

Small black rectangular capture device with HDMI ports and USB 3.0 cable

LUOM

LUOM YCY-2353 USB 3.0 1080P 60FPS 4K@30Hz Video Capturing Device

SKU CH-63AY-JNDQB

Captures 1080p 60 fps video from HDMI sources with 4K 30 Hz passthrough and 48 kHz audio over USB 3.0

  • InterfaceUSB 3.0
  • 3D SupportYes
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 4K Video
  • Video Sampling4:2:2 and 4:4:4
  • Capture 1080p at 60fps for smooth gameplay recording
  • Pass through 4K at 30Hz to a monitor while capturing
  • USB 3.0 plug-and-play with no driver installation required
  • Record 48 KHz PCM audio and monitor via 3.5 mm jack
  • Works with Windows, macOS, Linux and Android for streaming

Purpose and audience

The LUOM YCY-2353 is a USB 3.0 video capture device that records 1080p at 60fps while accepting 4K input at 30Hz. It connects HDMI sources such as game consoles, DSLR cameras or set-top boxes to a computer for streaming, recording or conferencing. No driver installation is required on Windows, macOS, Linux or Android.

Who it suits and who it does not

Streamers and educators who need a simple plug-and-play link between an HDMI source and OBS, VLC or similar software will find it straightforward. Buyers who require 4K capture at 60fps or multiple simultaneous input channels should look at a different class of device. It also lacks an internal scaler for resolutions beyond the listed maximum.

Deciding specification

The critical figure is the 1080p 60fps capture ceiling paired with 4K 30Hz passthrough. If your workflow demands recording at the source’s native 4K 60fps, this unit will not meet that need; if 1080p 60fps recording with a 4K preview feed is sufficient, the specification matches the requirement.

Highlights

  • Capture 1080p at 60fps for smooth gameplay recording
  • Pass through 4K at 30Hz to a monitor while capturing
  • USB 3.0 plug-and-play with no driver installation required
  • Record 48 KHz PCM audio and monitor via 3.5 mm jack
  • Works with Windows, macOS, Linux and Android for streaming

Specifications

BrandLUOM
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
3D SupportYes
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 4K Video
Video Sampling4:2:2 and 4:4:4
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
SDI2 Out
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

What does the USB 3.0 interface cap the capture at in practice?

The USB 3.0 connection captures a single HDMI channel at up to 1080p 60Hz, while the HDMI input itself accepts 4K 30Hz signals.

What physical ports must match for this capture card to fit my setup?

You need one HDMI input from the source, one HDMI output for a display passthrough, two SDI outputs, one USB 3.0 port on the host, plus 3.5 mm stereo audio output and microphone input jacks.

How is the device installed, and what step do people often miss?

Plug the card into a USB 3.0 port — no driver or external power is required — then select it as a webcam in OBS, VLC or your streaming software; the missed step is choosing the correct audio input so the 48 KHz PCM stream is recorded.
