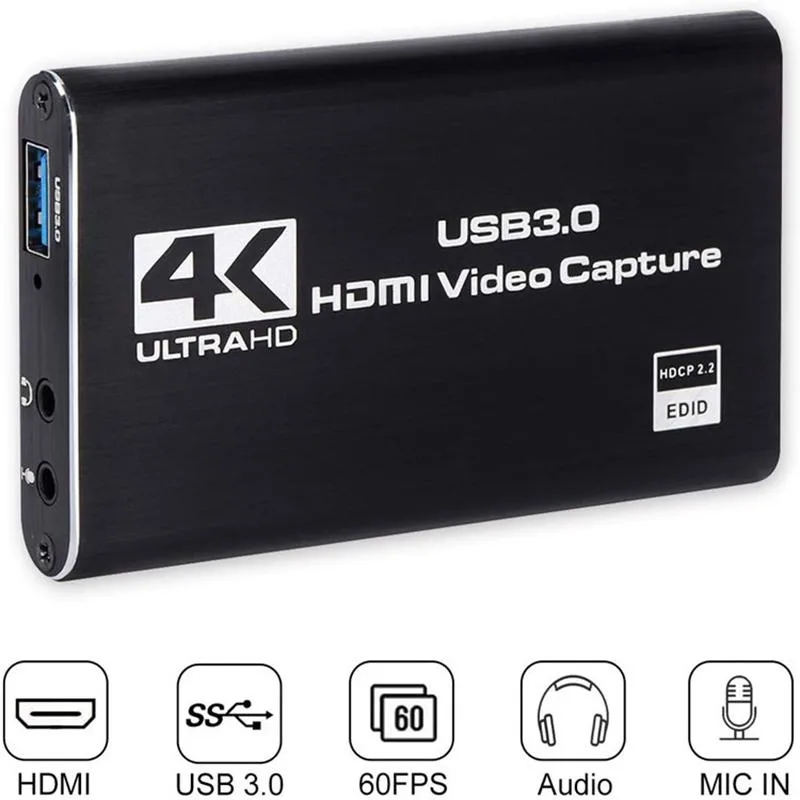

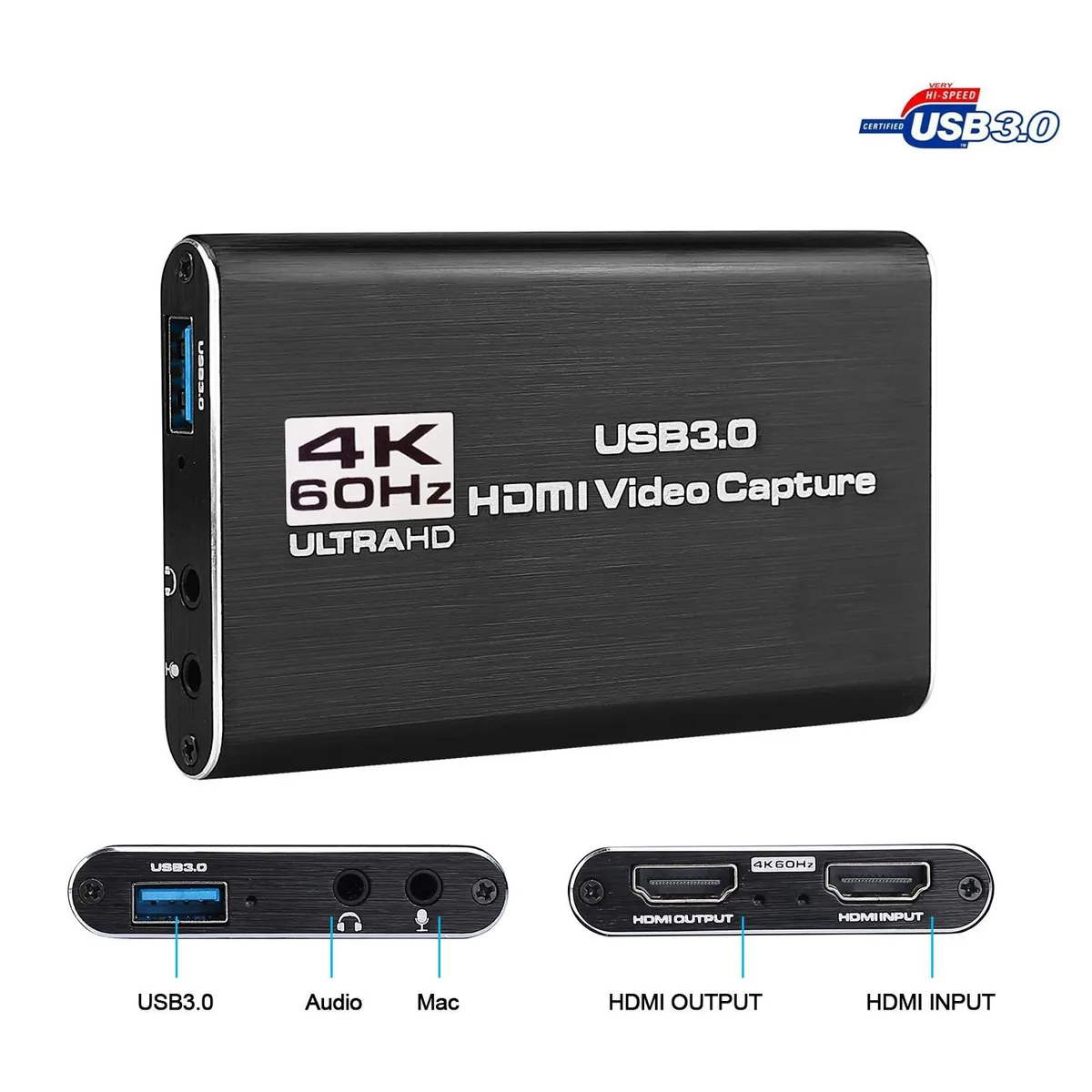

Small black rectangular capture dongle with HDMI ports, USB 3.0 plug, 3.5 mm audio jacks and LED indicator

LUOM

LUOM YCY-2353 4K HDMI USB 3.0 Video Capture Card

SKU CH-C84D-DQW5V

Captures 1080p 60fps from 4K HDMI sources via USB 3.0 with 3.5 mm mic and headphone ports

  • InterfaceUSB 3.0
  • 3D SupportYes
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 4K Video
  • Video Sampling4:2:2 and 4:4:4
  • Capture 1080p at 60fps for smooth gameplay recording
  • Pass-through 4K at 30Hz input to monitor while streaming
  • USB 3.0 plug-and-play with no driver installation needed
  • Built-in 3.5mm microphone input for live commentary
  • 5mm stereo output lets you monitor audio in real time

LUOM YCY-2353 4K HDMI USB 3.0 Capture Card

The LUOM YCY-2353 is a portable USB 3.0 video capture dongle that accepts HDMI input up to 4K at 30 Hz and records or streams at 1080p 60 fps. It targets streamers, educators and gamers who need a driver-free way to bring console or camera footage into OBS, VLC or similar software on Windows, macOS, Linux or Android.

Thermals noise and power draw

The device draws power directly from the USB 3.0 port with no external adapter required, keeping cable count low and heat output minimal. Silent operation is assured because there are no moving parts, and the low-latency design avoids taxing the host CPU during extended capture sessions.

HDMI loop-through with 3.5 mm audio I/O

A built-in HDMI output passes the source signal to a monitor or TV for simultaneous local viewing while the USB feed goes to the computer. Front-panel 3.5 mm stereo output and microphone input let you monitor programme audio and add live commentary without extra mixers. Buyers who need 4K 60 fps capture or internal PCIe installation should consider other form factors.

Highlights

  • Capture 1080p at 60fps for smooth gameplay recording
  • Pass-through 4K at 30Hz input to monitor while streaming
  • USB 3.0 plug-and-play with no driver installation needed
  • Built-in 3.5mm microphone input for live commentary
  • 5mm stereo output lets you monitor audio in real time

Specifications

BrandLUOM
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
3D SupportYes
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 4K Video
Video Sampling4:2:2 and 4:4:4
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
SDI2 Out
USB Port1
S-Video1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the i
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces

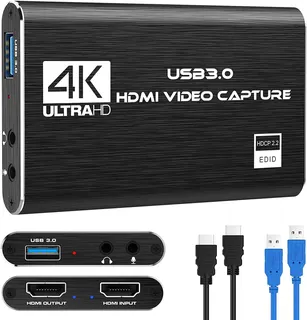

Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;
OptionAdvanced

Questions about this item

How do I install the LUOM YCY-2353 capture card, and what step do people often miss?

Connect the source to the HDMI input, the display to the HDMI output, and the card to a USB 3.0 port. The step often missed is selecting the 48 KHz PCM audio device in OBS or your streaming software.

What maintenance or replacement will the LUOM YCY-2353 need later?

No internal maintenance is required. If the 3.5 mm stereo jack or microphone port wears out from frequent headset changes, the card itself would need replacement.

What limit appears first during a long stream with the LUOM YCY-2353?

The HDMI input accepts 4K at 30 Hz, but capture is capped at 1080p 60 fps, so extended 4K sources are downscaled continuously.
