Small black rectangular box with two USB-C cables attached and a select button on top

LUOM

LUOM TJ-A0126 2-Port USB-C 8K KVM Switch DP 1.4

SKU CH-APW9-EXYDH

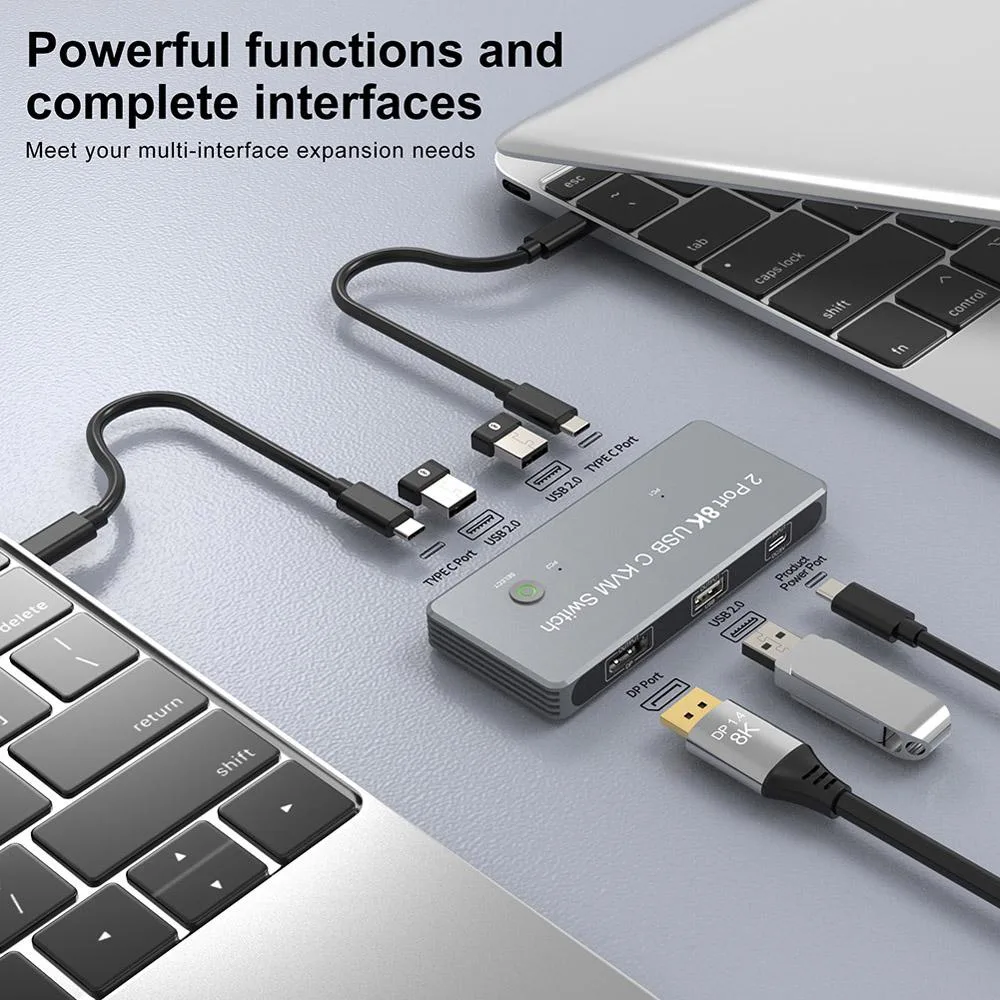

Two USB-C computers share one DisplayPort 1.4 monitor at up to 8K 60 Hz or 4K 144 Hz, with three USB 2.0 ports for keyboard, mouse and peripherals switched by a front button

  • TypeDisplayPort, USB
  • PC ConnectorsUSB-C cable
  • Computer Connections2 Ports
  • Monitor Connections1 Port
  • Video Resolution7680×4320
  • PC SelectionManual Switch
  • Share two USB-C computers on one DisplayPort monitor
  • Switch between PCs with a manual select button
  • Supports 8K at 60 Hz and 4K at 144 Hz resolution

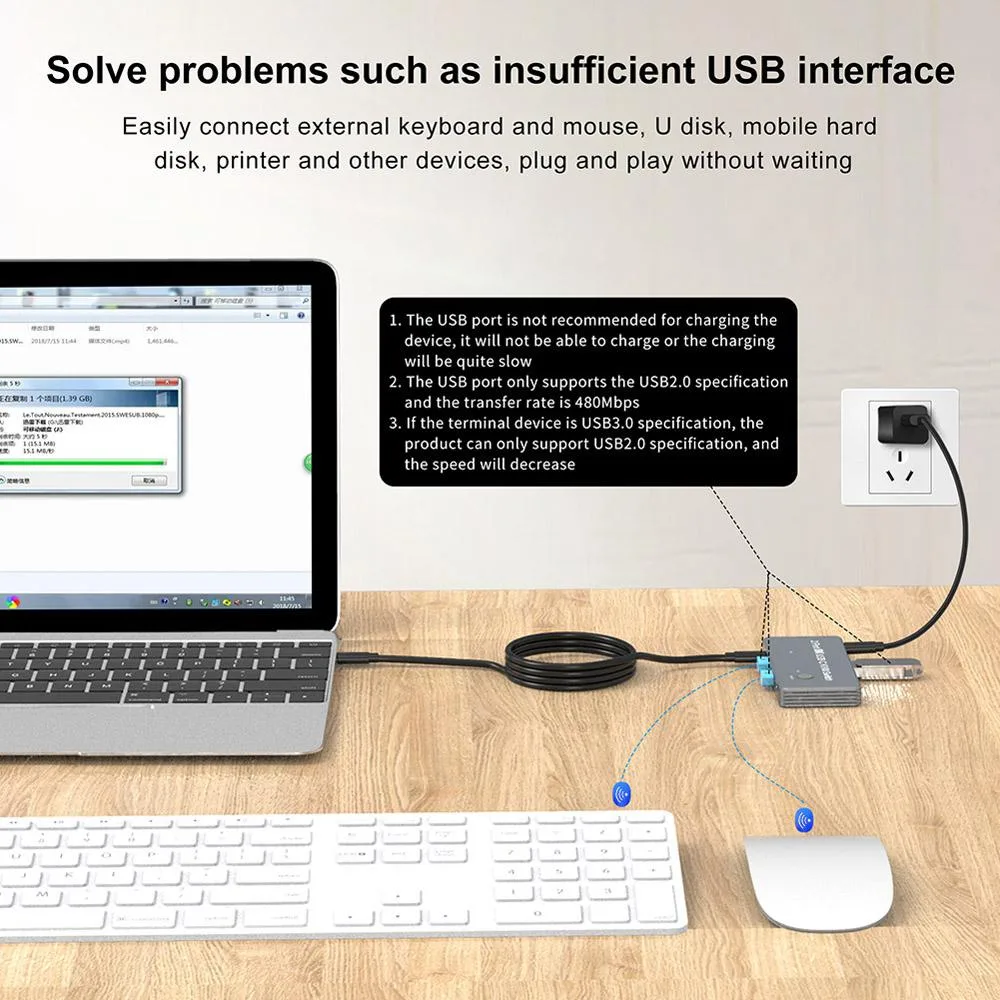

  • Three USB 2.0 ports share keyboard mouse and peripherals
  • Includes two USB-C Gen-2 cables and a USB-A to USB-C power cable

Two-computer USB-C KVM for DisplayPort monitors

The LUOM TJ-A0126 connects two USB-C laptops or PCs to a single DisplayPort 1.4 monitor. It supports 7680×4320 resolution at 60 Hz and 4K at 144 Hz. Three USB 2.0 ports share a keyboard, mouse and other peripherals between both computers. A front-panel button switches the active system instantly.

Manual switching with included cables

Two USB-C Gen-2 cables and a USB-A to USB-C power cable are supplied in the box. The switch draws power from the USB-A cable, so this must remain connected during use. LED indicators show the selected computer. No software or drivers are required for basic operation. The unit measures 5.43 x 5.35 x 1.46 inches.

Users with two USB-C video sources

Ideal for a desk that alternates between a work laptop and a personal machine. Peripheral sharing avoids re-plugging devices when switching. Not suited for setups that need HDMI or native Thunderbolt video inputs. Buyers who require more than two computer ports or USB 3.x peripheral speeds should look elsewhere.

Highlights

  • Share two USB-C computers on one DisplayPort monitor
  • Switch between PCs with a manual select button
  • Supports 8K at 60 Hz and 4K at 144 Hz resolution
  • Three USB 2.0 ports share keyboard mouse and peripherals
  • Includes two USB-C Gen-2 cables and a USB-A to USB-C power cable

Specifications

BrandLUOM
SeriesTJ-A0126
ModelTJ-A0126
TypeDisplayPort, USB
PC ConnectorsUSB-C cable
Computer Connections2 Ports
Monitor Connections1 Port
Video Resolution7680×4320
PC SelectionManual Switch
AutoScan Interval3 seconds
BandwidthDP 1.4: 32.4Gbps/USB 2.0: 480Mbps
LED IndicatorsYes
Application2PC Share 1 Monitor and One Keyboard Mouse,KVM Switch Displayport,Support 8K@60Hz 4K@144Hz 3D 1080P
Features2xUSB-C 8K KVM Switch with one DisplayPort 1.4 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 Port to your DisplayPort Monitors via your own displayport 8k Standard Cable,you can press the "select"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working
With 3xUSB2.0 Output Port,two Computers share one set,you can connect 3xUSB2.0 Output to your USB Mo
Dimensions5.43 x 5.35 x 1.46 inches
Weight9.52 Ounces
Package Contents1 x DP KVM Switch, 2 x USB-C Cable, 1 x USB-A to USB-C power cable

Questions about this item

How do I confirm the LUOM TJ-A0126 is switching correctly after I connect two USB-C laptops and a DisplayPort monitor?

Press the select button and watch the LED indicators change; the monitor should instantly show the other laptop at up to 7680×4320 at 60 Hz or 4K at 144 Hz.

What cables are included with the TJ-A0126 and what must I supply myself?

The box contains the KVM switch, two USB-C Gen-2 cables and a USB-A to USB-C power cable; you must provide your own DisplayPort 1.4 cable for the monitor.

Which version of the LUOM TJ-A0126 should I choose for 8K at 60 Hz and 4K at 144 Hz?

The single model TJ-A0126 delivers 32.4 Gbps over DisplayPort 1.4 and supports 7680×4320 at 60 Hz plus 4K at 144 Hz.
