LUOM SW242-2HD KVM Switch 4 Computers 2 Monitors 4K 60Hz
Connects four computers to two monitors at up to 4K 60 Hz with push-button, remote or auto-scan switching and a built-in USB 3.0 hub
- TypeHDMI, HDMI, USB
- PC ConnectorsHDMI+HDMI+USB
- Computer Connections2 Port HDMI+HDMI
- Monitor Connections2 Ports
- Video Resolution4K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Controls 4 computers with one keyboard and mouse
- Dual 4K 60Hz monitors with duplication or extension modes
- 4 USB 3.0 ports shared across all connected systems
- Push-button, remote or auto-scan switching every 3 seconds
- Plug-and-play with Windows, Mac, Linux and Unix
4-Computer 2-Monitor KVM Switch
The LUOM SW242-2HD connects four computers to two HDMI monitors and a shared USB keyboard and mouse. It is built for users who need simultaneous access to multiple systems without swapping cables. Each computer must provide two HDMI outputs to use both display ports. The switch includes a USB 3.0 hub for peripherals such as printers or storage devices.
Passive Operation and Push-Button Switching
The unit draws power from an included 12V 1A external adapter and has no internal fans, so it runs silently. Front-panel buttons, an IR remote and auto-scan at three-second intervals let you change the active computer instantly. LED indicators show the selected port at a glance. No software or drivers are required for any supported operating system.
Upgrades Single-Monitor or Two-Computer Setups
This switch replaces a basic two-port KVM or a manual cable-swapping workflow when you need four computers driving two screens. The jump is worth it when you regularly work across four systems and want duplicated or extended desktop modes without latency. It does not suit builds that only have one HDMI port per computer or that require more than two displays.
Highlights
- Controls 4 computers with one keyboard and mouse
- Dual 4K 60Hz monitors with duplication or extension modes
- 4 USB 3.0 ports shared across all connected systems
- Push-button, remote or auto-scan switching every 3 seconds
- Plug-and-play with Windows, Mac, Linux and Unix
Specifications
| Brand | LUOM |
|---|---|
| Series | SW242-2HD |
| Model | SW242-2HD |
| Type | HDMI, HDMI, USB |
| PC Connectors | HDMI+HDMI+USB |
| Computer Connections | 2 Port HDMI+HDMI |
| Monitor Connections | 2 Ports |
| Video Resolution | 4K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | [ 2 ports HDMI KVM USB switch dual monitor]: KVM Switch allows control 4 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 4 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. ? |
| Features | HDMI KVM Switch Dual Monitor 4 In 2 Out: This 2ports HDMI KVM Switch Dual Monitor helps you seamless connectivity and control 4 Computers and 2 monitors, all while sharing one set of USB keyboard and mouse. With just one simple key switch, you can easily toggle between 4*USB3.0 input devices without interruption to your workflow.Monitors ? Ultra HD 4K 60Hz KVM Switch: This HDMI+HDMI+USB KVM switch Dual Monitor supports resolutions up to 3840*2160@60Hz and downward compatible supports 3D,HDR,HDCP.Picture quality is transmitted without delay, resulting in a more realistic and high-defi |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | The package includes 1*4 in 2 out KVM switcher, 4*USB 3.0 A to A cables, 1*12V1A external power adapter, 1* IR cable, 1*remote control (batteries not included), and 1*user manual. |
Questions about this item
How do I connect four computers and two monitors to the LUOM SW242-2HD, and which step do people often miss?

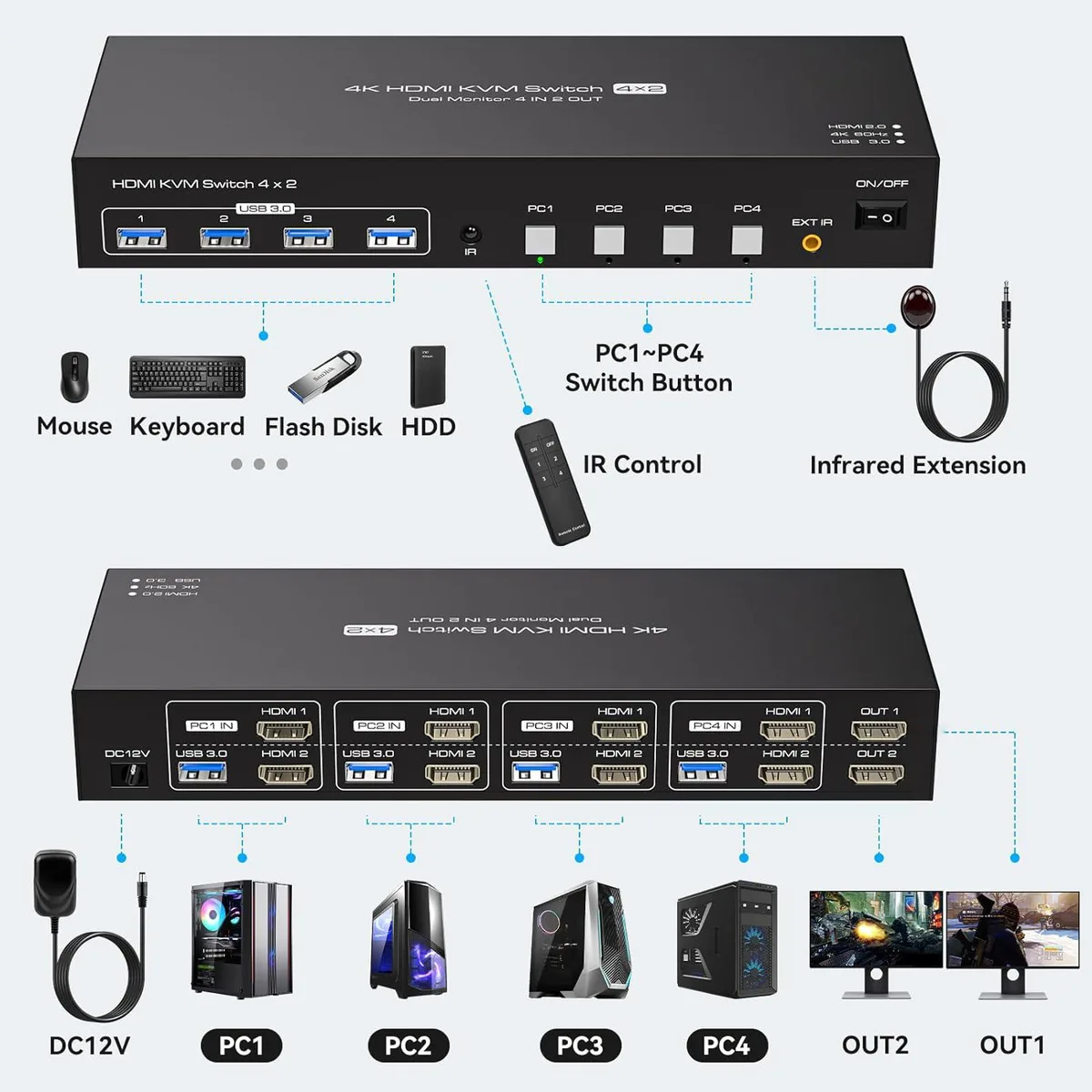

Connect two HDMI cables and one USB 3.0 A-to-A cable from each computer to the switch, then connect two monitors to the output HDMI ports. The step often missed is plugging in the included 12 V 1 A external power adapter before turning on the computers.
What ongoing maintenance or replacement will the LUOM SW242-2HD need?
The remote control requires a battery replacement when it stops responding; the user manual notes batteries are not included. The switch itself has no moving parts or user-serviceable components, so no scheduled maintenance is required.
What limit appears first when I run the LUOM SW242-2HD at 4K 60 Hz for long sessions?
The HDMI 2.0 bandwidth caps each output at 3840×2160 at 60 Hz. Pushing higher refresh rates or resolutions is not supported, so the resolution ceiling is the first limit you encounter under sustained use.
