LUOM SW240-HD 4-Port HDMI KVM Switch 4K@60Hz
Four computers share one 4K 60 Hz monitor, keyboard, mouse and four USB 3.0 peripherals via push-button or remote control
- TypeHDMI, USB
- PC ConnectorsHDMI, USB
- Computer Connections4 Port - USB 3.0 HDMI
- Monitor Connections1 Port
- Video Resolution4K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Control four computers with one keyboard and mouse
- 4K resolution at 60 Hz for sharp video
- Four USB 3.0 ports share peripherals at 5 Gbps
- Switch instantly by button or IR remote
- Compact design hides cables behind the unit
4-Port HDMI KVM Switch

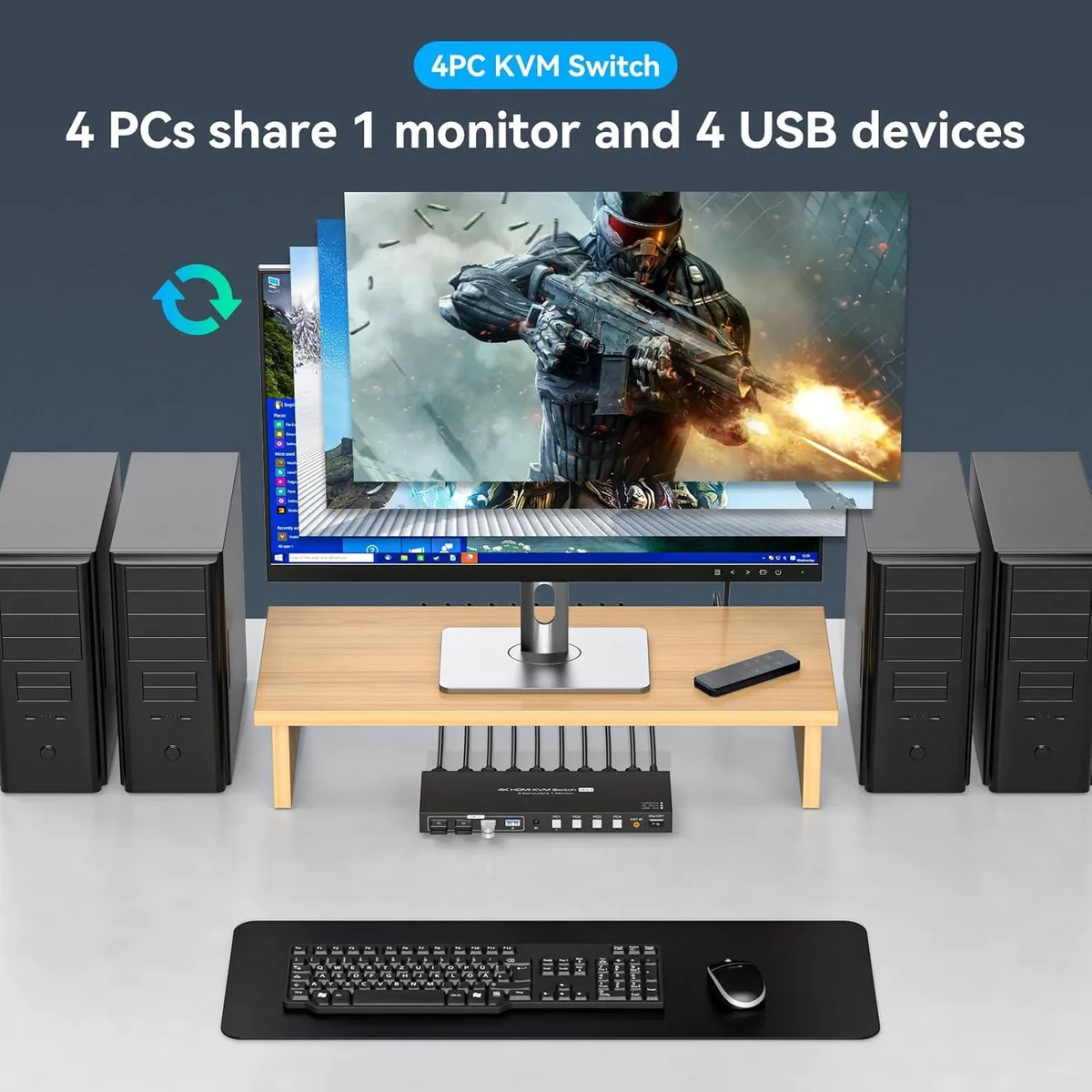

The LUOM SW240-HD lets four computers or laptops share a single monitor, keyboard, mouse and up to four USB 3.0 peripherals. Switching is handled by front push buttons or the included IR remote controller. It supports video output up to 4K at 60 Hz and 2K at 120 Hz for mirrored displays. No software installation is required for operation.
Passive cooling and external power
The unit runs without internal fans, so it adds no audible noise to the workspace. A 12 V 1 A external power adapter is included to maintain stable operation across all four connected systems. Power draw remains low during normal switching and peripheral use. The compact metal enclosure dissipates heat passively across its surface.
Replaces multi-cable swapping
This switch removes the need to physically unplug and reconnect HDMI and USB cables when moving between workstations. It is suited for users who operate multiple PCs, laptops or a console like a PS4 on one desk. The benefit is clearest when four sources are used daily; with fewer sources a simpler two-port switch may suffice.
Highlights
- Control four computers with one keyboard and mouse
- 4K resolution at 60 Hz for sharp video
- Four USB 3.0 ports share peripherals at 5 Gbps
- Switch instantly by button or IR remote
- Compact design hides cables behind the unit
Specifications
| Brand | LUOM |
|---|---|
| Series | SW240-HD |
| Model | SW240-HD |
| Type | HDMI, USB |
| PC Connectors | HDMI, USB |
| Computer Connections | 4 Port - USB 3.0 HDMI |
| Monitor Connections | 1 Port |
| Video Resolution | 4K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | The hdmi kvm switch 4 port allows 4 computers or laptops to share 1 monitor and 4 USB 3.0 devices. You can control all 4 computers directly with a single set of mouse and keyboard. Switching between the 4 computers is easy using the panel buttons or an external remote. It's plug-and-play, streamlining your workspace and boosting office efficiency. |
| Features | 4 in 1 out HDMI KVM Switch: 4X1 HDMI KVM Switch is a HDMI switch that help 4 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. ? 4 computers/laptops share one set of keyboard, mouse and 1 monitors, and more USB 3.0 peripherals; Support maximum resolution up to 4K 60Hz HDMI monitors output support up to 4K@60Hz/2K@120Hz for mirrored display; Compatible with Windows 11/10/8/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems; Advanced switching modes: push button and IR remote control;No complicated installation is require |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | You will receive a 1*4 in 1 out KVM switcher, 4*USB 3.0 A to A cables, 1*12V1A external power supply, 1*IR cable, 1*remote control (excluding battery), and 1*user manual. |
Questions about this item
How do I connect the four included USB 3.0 A-to-A cables and the HDMI leads so the switch sits cleanly behind my monitor?

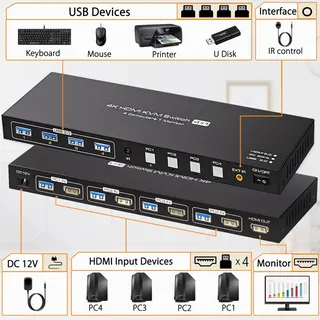

Plug each computer's HDMI and USB 3.0 cables into the rear-facing ports on the switch, connect the single monitor to the HDMI output, attach the 12 V 1 A power adapter, then use the front push buttons or IR remote to select a source; the rear-layout keeps cables hidden.
Will the USB 3.0 ports or the IR remote need any periodic replacement or battery changes?
The remote requires a user-supplied button cell; the four USB 3.0 ports and the switch itself have no user-serviceable parts and need no scheduled maintenance.
At what point does the 4K 60 Hz signal or the 5 Gbps USB 3.0 bandwidth become the limiting factor during long sessions?
The HDMI output is specified at 4K 60 Hz and USB 3.0 at 5 Gbps; sustained use is limited by whichever connected device reaches its thermal or bandwidth ceiling first.
