LUOM SW233-3DP 3×3 DisplayPort KVM Switch 8K 60 Hz 4 USB 3.0
Lets two computers share three DisplayPort monitors at 8K 60 Hz and four USB 3.0 peripherals, switched by front button or wired remote
- TypeDisplayPort, USB
- PC ConnectorsDisplayport and USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Share one keyboard and mouse across two computers
- Drive three DisplayPort monitors at 8K 60 Hz resolution
- Switch instantly with front button or wired remote desktop controller
- Connect four USB 3.0 peripherals at 5 Gbps each
- Keep cables hidden behind the unit for a tidy desk
3-Monitor KVM Switch for Dual-PC Setups
This DisplayPort KVM switch connects two computers or laptops to three shared monitors and four USB 3.0 peripherals. A single keyboard and mouse control both systems through extended or mirrored desktop modes. Each host must provide three video outputs and support multi-display operation. The unit includes all required cables and a wired remote for desk-side switching.
Passive Thermal Design with External Power
The metal enclosure dissipates heat without fans, so the switch adds no audible noise to the workspace. A supplied 12 V DC adapter powers the internal logic and the four 5 Gbps USB 3.0 ports, keeping connected devices charged during switching. LED indicators show the active computer and monitor status at a glance. No software drivers are required on any supported operating system.
Stable 8K 60 Hz Signal Under Continuous Use
DisplayPort 1.4 bandwidth maintains 8K at 60 Hz, 4K at 144 Hz, 3440 × 1440 at 144 Hz, 1440p at 165 Hz and 1080p at 240 Hz across all three outputs during extended sessions. Hot-key, push-button and wired-remote switching each complete in roughly three seconds without signal dropout. The fixed 3-second auto-scan interval is intended for brief monitoring, not unattended operation. Buyers needing more than two connected computers or additional video ports should consider a larger matrix switch.
Highlights
- Share one keyboard and mouse across two computers
- Drive three DisplayPort monitors at 8K 60 Hz resolution
- Switch instantly with front button or wired remote desktop controller
- Connect four USB 3.0 peripherals at 5 Gbps each
- Keep cables hidden behind the unit for a tidy desk
Specifications
| Brand | LUOM |
|---|---|
| Series | SW233-3DP |
| Model | SW233-3DP |
| Type | DisplayPort, USB |
| PC Connectors | Displayport and USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | DP KVM Switch 3 Monitors 2 Computers: This DisplayPort KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays. 8K DisplayPort KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices. It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three monitors can suppo |
| Features | 2 computers/laptops share one set of keyboard, mouse, and 3 Displayport monitors Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V standards. 2 Switching modes: Button switch and wired remote. With extra 4 x 5Gbps USB 3.0 ports . Cross-support most major OS including Windows, Linux, Mac, and more. The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x USB 3.0 3x3 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
How do I install the LUOM SW233-3DP KVM switch and which step is commonly missed?

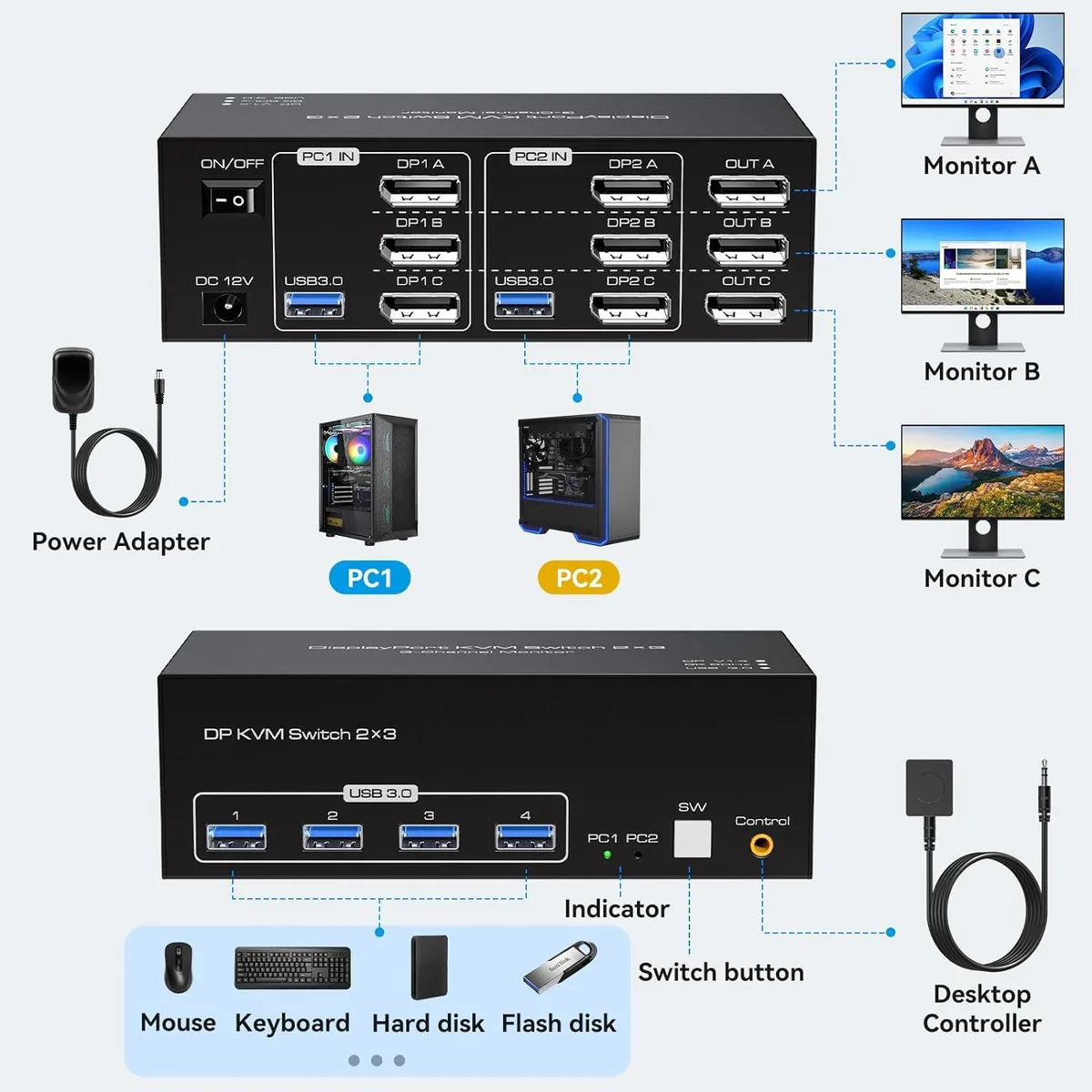

Connect each computer's three DisplayPort outputs and one USB 3.0 cable to the rear input groups, attach three monitors to the output ports, plug in the 12 V DC adapter, then link the wired remote; the step often missed is verifying every PC supports three simultaneous extended displays before cabling.
What maintenance or replacement will the LUOM SW233-3DP need over time?
No user-serviceable parts exist; keep vents clear and the 12 V power adapter seated; if the adapter fails, replace it with an equivalent 12 V unit, and swap any worn DisplayPort or USB 3.0 cables to maintain 8K 60 Hz signal integrity.
What limit appears first during sustained 8K 60 Hz use on the LUOM SW233-3DP?
The DisplayPort 1.4 bandwidth ceiling caps each monitor at 8K 60 Hz; pushing higher refresh rates such as 4K 144 Hz or 1440p 165 Hz works within that limit, but 8K beyond 60 Hz cannot be sustained.
