LUOM SW233-3DP 2×3 DisplayPort KVM Switch 8K 60Hz USB 3.0
A DisplayPort KVM switch that lets two computers share three monitors at up to 8K 60 Hz and four USB 3.0 ports, switched by button or wired remote
- TypeDisplayPort, USB
- PC ConnectorsDisplayport and USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Control 2 computers with one keyboard and mouse using the wired button switch
- Share 3 DisplayPort monitors at up to 8K 60Hz resolution across both systems
- Four USB 3.0 ports let you connect printers, drives and other peripherals
- 12 V 1 A power adapter keeps operation stable with high-power USB devices
- Plug-and-play compatibility with Windows, Mac OS, Linux and Unix systems
Triple-monitor KVM for two computers

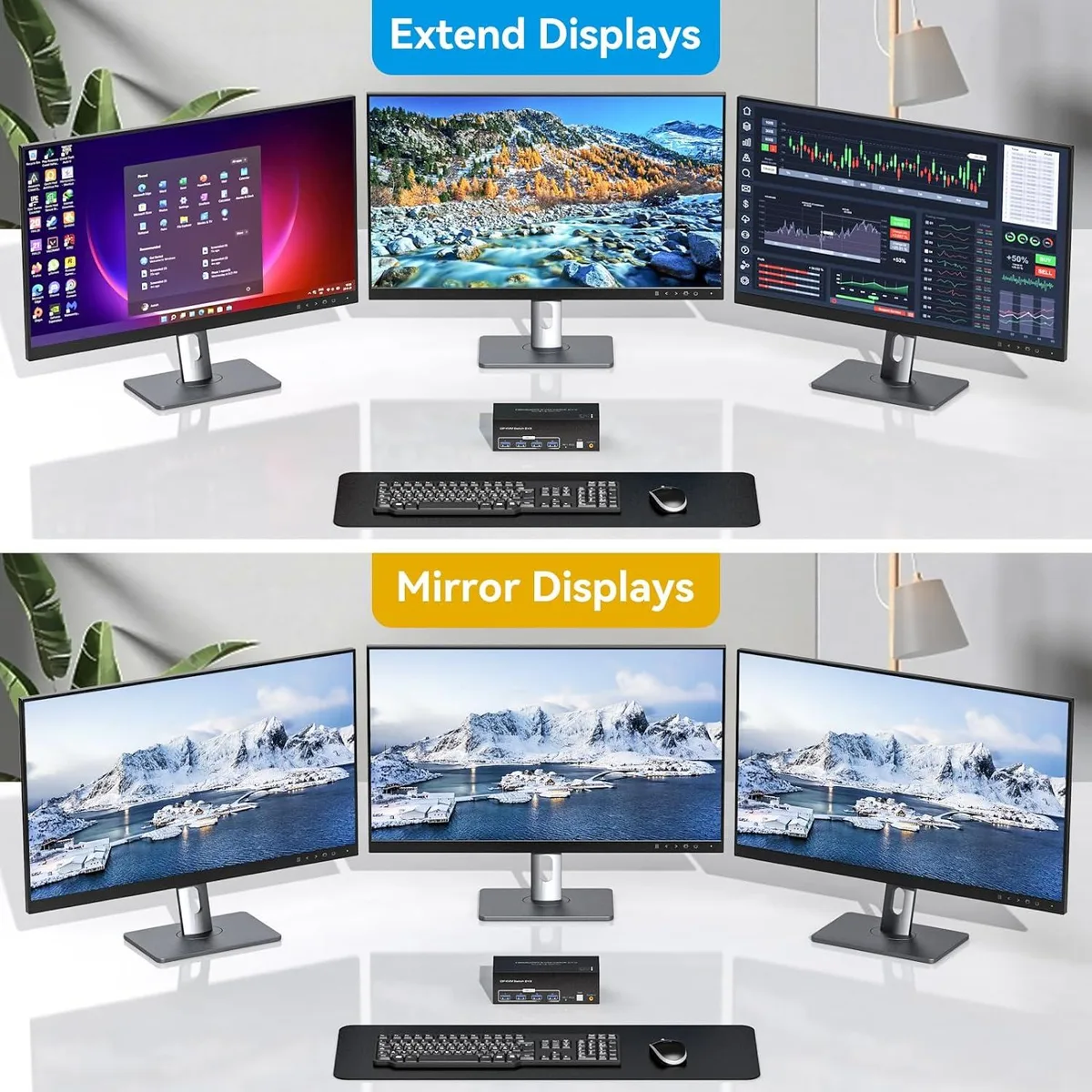

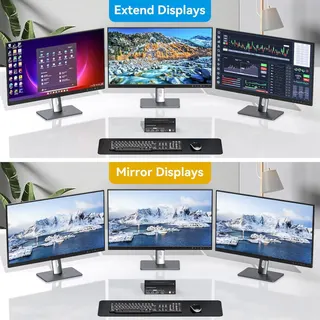

The LUOM SW233-3DP lets two desktops or laptops share three DisplayPort monitors and four USB 3.0 ports with a single keyboard and mouse. It supports extended and duplicate display modes for multitasking across office or home setups. Each connected computer must provide three DisplayPort outputs and support multi-display operation.
DisplayPort 1.4 bandwidth limits resolution
The switch passes video up to 8K at 60 Hz and is backward compatible with 4K at 144 Hz, 3440×1440 at 144 Hz, 1440p at 165 Hz and 1080p at 240 Hz. Higher resolutions or refresh rates than those listed cannot be transmitted through the DisplayPort 1.4 link. Cable quality and host GPU capabilities also affect the maximum achievable signal.
Requires three DisplayPort outputs per computer
This unit only works when every connected computer has three native DisplayPort video outputs and supports extended desktop across all three screens. Systems with fewer video ports, HDMI-only outputs or no multi-display support cannot drive the three-monitor configuration.
Highlights
- Control 2 computers with one keyboard and mouse using the wired button switch
- Share 3 DisplayPort monitors at up to 8K 60Hz resolution across both systems
- Four USB 3.0 ports let you connect printers, drives and other peripherals
- 12 V 1 A power adapter keeps operation stable with high-power USB devices
- Plug-and-play compatibility with Windows, Mac OS, Linux and Unix systems
Specifications
| Brand | LUOM |
|---|---|
| Series | SW233-3DP |
| Model | SW233-3DP |
| Type | DisplayPort, USB |
| PC Connectors | Displayport and USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | DP KVM Switch 3 Monitors 2 Computers: This DisplayPort KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays. 8K DisplayPort KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices. It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three monitors can suppo |
| Features | 2 computers/laptops share one set of keyboard, mouse, and 3 Displayport monitors Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V standards. 2 Switching modes: Button switch and wired remote. With extra 4 x 5Gbps USB 3.0 ports . Cross-support most major OS including Windows, Linux, Mac, and more. The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x USB 3.0 3x3 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
Should I choose the 2-computer or 3-computer version of this KVM?
This unit is a single model that connects 2 computers to 3 monitors; there is no 3-computer variant in the SW233-3DP line.
What does the 8K 60 Hz rating mean when I actually hook up my monitors?
Each of the three DisplayPort outputs can drive up to 8K at 60 Hz, and the switch also handles 4K 144 Hz, 3440×1440 144 Hz, 1440p 165 Hz and 1080p 240 Hz.
Which DisplayPort standard does the switch use and what bandwidth limit does that impose?
It uses DP 1.4, which caps the link at the bandwidth required for 8K 60 Hz and the listed high-refresh lower resolutions.
