LUOM SW232-2DP1HD KVM Switch 2DP+HDMI 8K60 4K120 USB3.0
Connects two computers to three monitors at up to 8K 60 Hz with USB 3.0 peripheral sharing
- TypeDisplayport,HDMI and USB
- PC Connectors2Displayport, HDMI and USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Control two computers with one keyboard and mouse set using four USB 3.0 ports
- Drive three monitors at up to 8K 60 Hz or 4K 120 Hz via two DisplayPort and one HDMI
- Switch instantly with front push buttons or the included wired remote controller
- Choose copy mode for identical screens or extended mode for three independent displays
- Compact 5.43 x 5.35 x 1.46 inch unit weighs only 9.52 ounces
Two-computer, three-monitor KVM

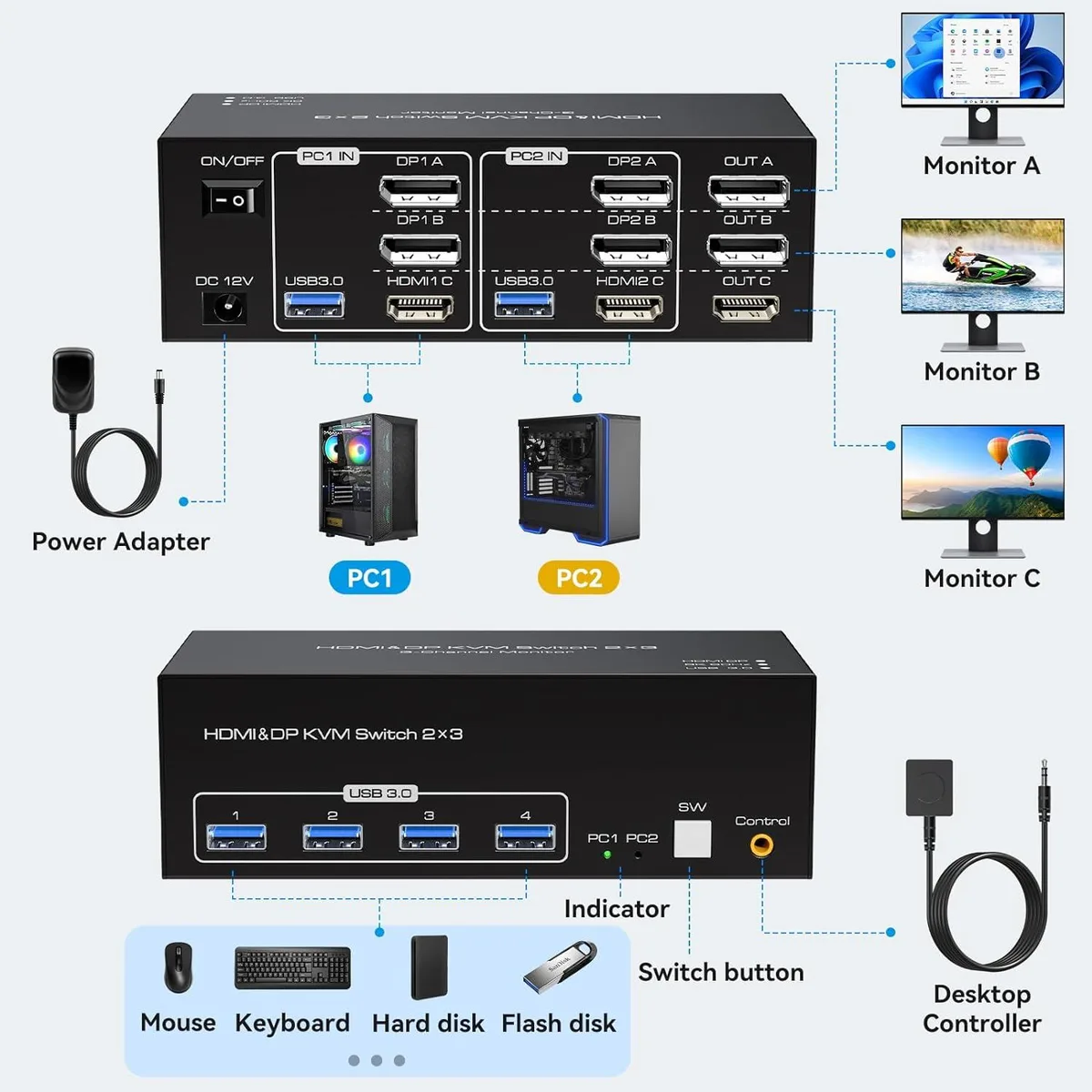

This LUOM SW232-2DP1HD KVM switch connects two desktops or laptops to a single keyboard, mouse and three displays. It accepts two DisplayPort and one HDMI input from each computer and mirrors or extends the desktop across all three monitors. The unit requires each host to support at least three simultaneous display outputs with extended mode capability.
Included cables and remote control
The package supplies two USB 3.0 cables, a 12 V power adapter and a wired push-button remote so you can switch hosts without reaching the main unit. Four USB 3.0 ports on the switch let you share peripherals such as drives or webcams, removing the need to unplug devices when changing computers.
Resolution and refresh limits
HDMI and DisplayPort outputs both reach 8K at 60 Hz and 4K at 120 Hz, with backward compatibility down to 720p. DisplayPort additionally supports 1440p at 165 Hz and 3440×1440 at 144 Hz, while HDMI handles 1080p at 240 Hz. The switch operates under DP 1.4 and HDMI 2.1 standards, and auto-scan cycles every three seconds if enabled.
Highlights
- Control two computers with one keyboard and mouse set using four USB 3.0 ports
- Drive three monitors at up to 8K 60 Hz or 4K 120 Hz via two DisplayPort and one HDMI
- Switch instantly with front push buttons or the included wired remote controller
- Choose copy mode for identical screens or extended mode for three independent displays
- Compact 5.43 x 5.35 x 1.46 inch unit weighs only 9.52 ounces
Specifications
| Brand | LUOM |
|---|---|
| Series | SW232-2DP1HD |
| Model | SW232-2DP1HD |
| Type | Displayport,HDMI and USB |
| PC Connectors | 2Displayport, HDMI and USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2DP+HDMI KVM Switch 3 Monitors 2 Computers: This DisplayPort HDMI KVM Switch 2 port connects 2 desktops or laptops to share 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all the monitors, and it supports expanding and copying displays. To expand and copy the display, each laptop/PC must support 3 or more screens and must support extended displays. 8K DisplayPort HDMI KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 devices. It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three mo |
| Features | 2 computers/laptops share one set of keyboard, mouse, and 2 Displayport +HDMI monitors Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V / HDMI2.1 standards. 2 Switching modes: Button switch and wired remote. With extra 4 x 5Gbps USB 3.0 ports . Cross-support most major OS including Windows, Linux, Mac, and more. The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x USB 3.0 HDMI + 2 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
Will the 12 V power adapter need replacing after long-term use?
The switch ships with a 12 V power adapter; like any external supply it may eventually wear out and can be swapped for another 12 V unit with the same barrel plug.
Which resolution ceiling appears first during extended gaming sessions?
HDMI caps at 4K 120 Hz while DisplayPort reaches 4K 144 Hz, so the HDMI monitor hits its limit before the DP screens.
How much heat or fan noise does the unit produce when running all day?
The aluminium chassis runs passively with no fan, so it stays silent and only warms slightly under continuous 8K 60 Hz operation.
