LUOM
LUOM SW222-1DP1HD 2×2 8K 60 Hz KVM switch
Share two computers across dual monitors at 8K 60 Hz with four USB 3.0 ports and push-button or desktop switching
- TypeHDMI DP USB
- PC ConnectorsHDMI DP USB
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Share two computers on dual monitors with 8K 60 Hz clarity
- Switch instantly via desktop controller or front push buttons
- Connect four USB 3.0 peripherals through the built-in hub
- Works with Windows, macOS, Linux and Unix with no drivers
- Compact 5.43 × 5.35 × 1.46 in design fits any desk

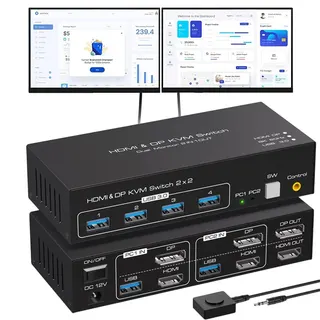

LUOM SW222-1DP1HD KVM Switch

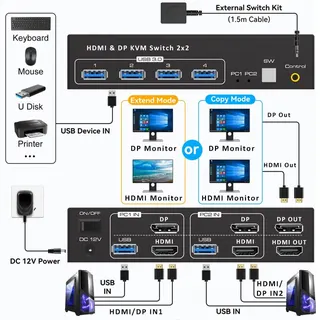

The LUOM SW222-1DP1HD is a dual-monitor KVM switch that lets one keyboard, one mouse and two displays control two computers. It supports HDMI and DisplayPort video inputs, plus four USB 3.0 hub ports for peripherals such as printers or storage drives. The unit is aimed at professionals and home users who need to manage two systems from a single desk setup.
8K 60 Hz dual video bandwidth

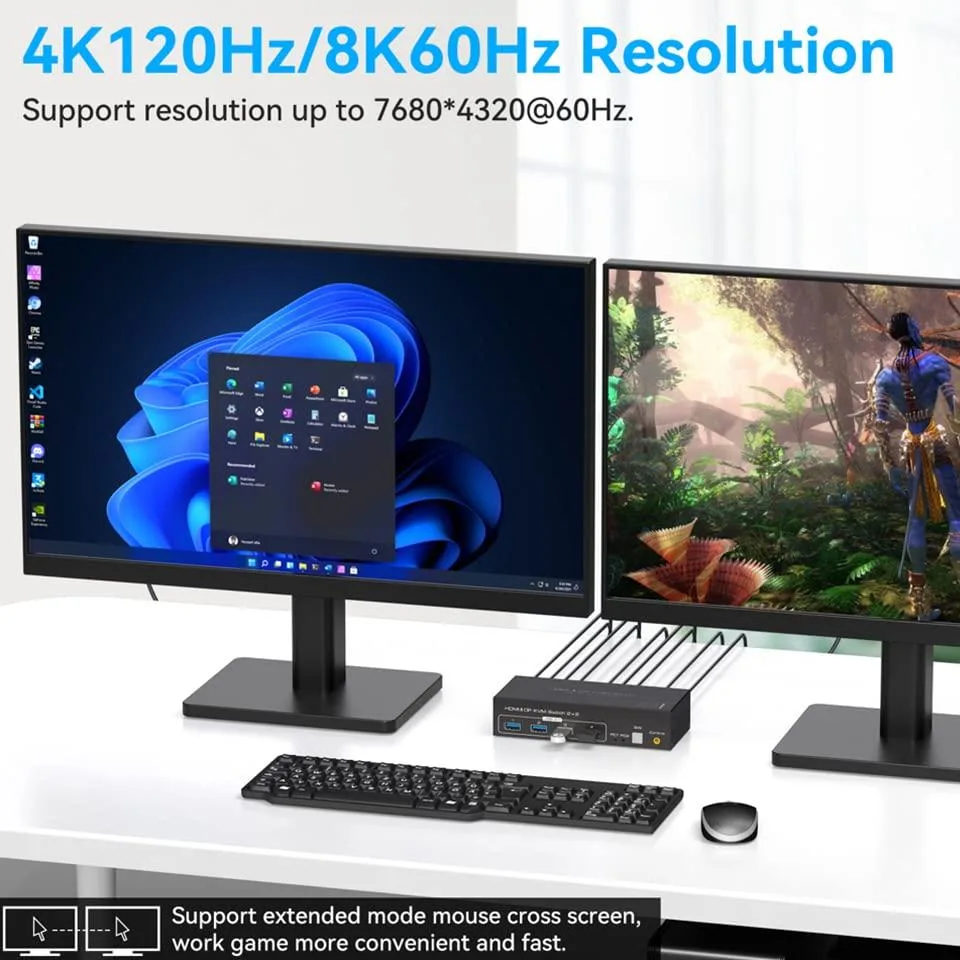

The switch passes 8K resolution at 60 Hz over HDMI 2.1 and DisplayPort 1.4, with HDCP 2.3 compliance. It also handles 4K at 120 Hz for high-refresh-rate workflows. This video bandwidth is the deciding factor for buyers who need to drive two high-resolution monitors simultaneously without signal degradation.
Sustained 5 Gbps USB 3.0 throughput
Under continuous use the four USB 3.0 ports maintain up to 5 Gbps transfer rates for connected devices. The metal enclosure and included 12 V DC adapter keep power delivery stable during long sessions. Front-panel buttons and the wired desktop controller provide instant switching without software overhead.
Highlights
- Share two computers on dual monitors with 8K 60 Hz clarity
- Switch instantly via desktop controller or front push buttons
- Connect four USB 3.0 peripherals through the built-in hub
- Works with Windows, macOS, Linux and Unix with no drivers
- Compact 5.43 × 5.35 × 1.46 in design fits any desk
Specifications
| Brand | LUOM |
|---|---|
| Series | SW222-1DP1HD |
| Model | SW222-1DP1HD |
| Type | HDMI DP USB |
| PC Connectors | HDMI DP USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Features | 2 In 2 Out 4K 120Hz USB 3.0 HDMI DP KVM Switch Box dual monitor for 2 PC Sharing Keyboard Mouse Printer Plug Play Video 2 Display USB Switch Splitter - Product Type: 8K HDMI DP USB 3.0 KVM Switch (2 in 2 out) - Input Port: HDMI 2.1, DP 1.4 ,USB 3.0 data x2, USB 3.0 x 4 - Output Port: HDMI 2.1, DP 1.4 - Dimensions: 150x65x35mm - Material: Aluminum Alloy shellanti-rust, anti-corrosion, anti-interference, fast transmission, surtace oxidation Features - Support HDMI 2.1 HDCP 2.3 / Displayport 1.4 - Resolution: Support 1080P/1080@144/165/240Hz, 2K@120/144Hz, 4K@60/120Hz,8K@60Hz resolution |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI DP KVM USB Switch, 2 x USB 3.0 data cable, 1x DC power adapter,1 x User Manual. |
Questions about this item
What does the 8K 60 Hz rating mean when I connect my two monitors to this KVM?
Each monitor can run at up to 8K resolution at 60 Hz through the HDMI 2.1 and DisplayPort 1.4 inputs, provided your computers and cables also support those standards.
Which video interfaces are used and what do they cap in practice?
One HDMI 2.1 port and one DisplayPort 1.4 port handle the dual-monitor output, limiting each display to the 8K 60 Hz ceiling defined by those standards.
What physical space and mounting does this 5.43 x 5.35 x 1.46 inch unit need on my desk?
The switch sits flat on the desktop and requires only the area of its 5.43 by 5.35 inch footprint plus clearance for the attached cables and the desktop controller.
