LUOM
LUOM SW204N-HD KVM Switch 2-Port 8K 60Hz 4 USB 3.0 Wired Remote
Lets two computers share one 8K 60 Hz display and four USB 3.0 peripherals with push-button or wired remote switching
- TypeHDMI, USB
- PC ConnectorsHDMI, USB
- Computer Connections2 Port HDMI
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Share one monitor and four USB 3.0 peripherals between two computers
- Switch instantly via push buttons or the wired desktop controller
- 8K 60 Hz video with HDCP 2.3 and HDR 10 for sharp, lag-free images
- 5 Gbps USB 3.0 ports with backward compatibility to USB 2.0 and 1.1
- Compact 5.43 x 5.35 x 1.46 inch design weighing 9.52 ounces
2-Port 8K HDMI KVM Switch
The LUOM SW204N-HD lets two computers share one monitor and four USB 3.0 peripherals. It supports video resolutions up to 7680 x 4320 at 60 Hz and is backward compatible with 3840 x 2160 at 120 Hz and 1920 x 1080 at 240 Hz. Switching is done via front push buttons or the included wired remote controller.
For dual-PC desk setups needing USB sharing
This unit suits users who operate a desktop and a laptop, or two towers, from a single display and keyboard tray. It provides four USB 3.0 ports at 5 Gbps for mouse, keyboard, printer or storage. Buyers who need to connect more than two computers, or who require DisplayPort or USB-C video inputs, should look at a different switch.

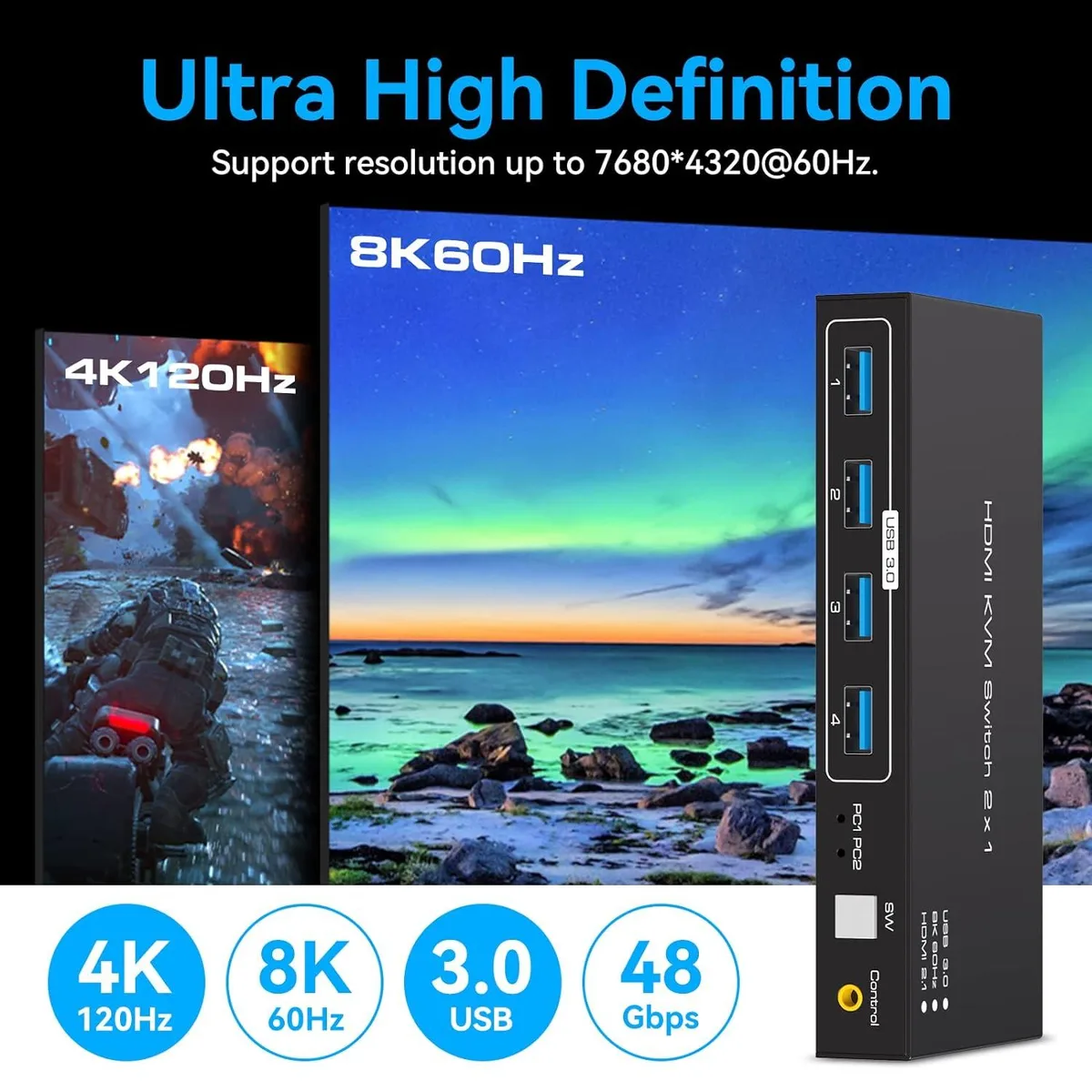

8K 60 Hz over HDMI 2.1 with 48 Gbps bandwidth
The decisive specification is the HDMI 2.1 interface rated for 48 Gbps, enabling 8K 60 Hz and 4K 120 Hz pass-through with HDCP 2.3 and HDR 10 support. A standard Super Speed HDMI 2.1 cable and the supplied 12 V power adapter are required to achieve the top resolution.
Highlights
- Share one monitor and four USB 3.0 peripherals between two computers
- Switch instantly via push buttons or the wired desktop controller
- 8K 60 Hz video with HDCP 2.3 and HDR 10 for sharp, lag-free images
- 5 Gbps USB 3.0 ports with backward compatibility to USB 2.0 and 1.1
- Compact 5.43 x 5.35 x 1.46 inch design weighing 9.52 ounces
Specifications
| Brand | LUOM |
|---|---|
| Series | SW204N-HD |
| Model | SW204N-HD |
| Type | HDMI, USB |
| PC Connectors | HDMI, USB |
| Computer Connections | 2 Port HDMI |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2 in 1 out HDMI KVM Switch: HDMI KVM Switch is a HDMI switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. |
| Features | 2 in 1 out HDMI KVM Switch: HDMI KVM Switch is a HDMI switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. Using only 1 set of keyboard, mouse and monitor to control 2 computers devices. Available to use keyboard and mouse without any delay after switch input sources. With 4xUSB 3.0 ports, the KVM Switch is possible to connect Printer, scanner, USB hard drive or other USB devices. Support 8K@60Hz 4K@120Hz, resolution up to 7680*4320@ 60Hz. Support front panel buttons and External switch button to control KVM to switc |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x HDMI KVM Switch, 1 x External Controller Kits, 2 x USB 3.0 Cable, 1 x Power Adapter, 1 x User Manual. |
Questions about this item
What are the dimensions and weight of the LUOM SW204N-HD unit itself?
The switch measures 5.43 x 5.35 x 1.46 inches and weighs 9.52 ounces, so check that your desk or rack shelf has at least that footprint and load capacity.
How do I connect the two computers and the monitor, and what is the step users often miss?
Plug each computer into the switch using one HDMI cable and one USB 3.0 cable per system, connect the monitor to the output HDMI port, then attach the 12 V power adapter before switching — the unit will not pass 8K 60 Hz video without external power.
Which cables and power supply will need replacement if I upgrade to longer runs or lose the originals?
The box includes two USB 3.0 cables and a 12 V DC power adapter; HDMI cables are not supplied, so you will need to source HDMI 2.1 Ultra High Speed cables for 8K 60 Hz or HDMI 2.0 cables for 4K 120 Hz operation.
