LUOM
LUOM SW204N-DP 8K 60 Hz 2-Port DisplayPort KVM Switch
Lets two computers share one DisplayPort monitor and four USB 3.0 peripherals at up to 8K 60 Hz resolution
- TypeDisplayPort, USB
- PC ConnectorsDisplayport, USB
- Computer Connections2 Port DisplayPort
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller
- Share one monitor and four USB 3.0 peripherals between two computers
- Switch instantly with push buttons or the wired desktop controller
- 8K at 60 Hz resolution for sharp, lag-free visuals
- USB 3.0 hub delivers up to 5 Gbps transfer speeds
- Auto-scan cycles every 3 seconds for hands-free monitoring
2-Port DisplayPort KVM for 8K 60 Hz

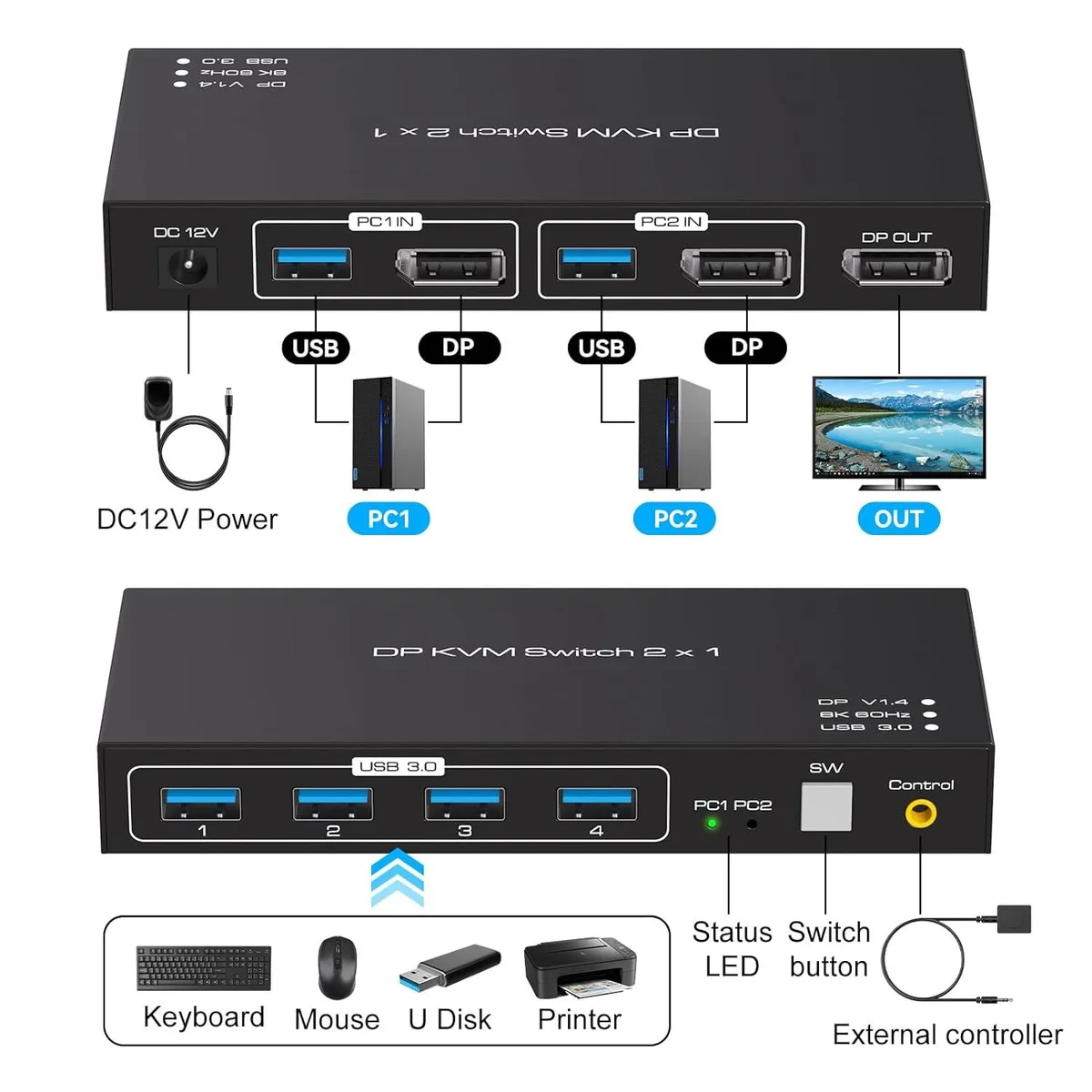

The LUOM SW204N-DP lets two computers share one DisplayPort monitor and four USB 3.0 peripherals. It supports resolutions up to 8K at 60 Hz and 165 Hz at lower resolutions. Switching is handled by front push buttons or the wired desktop controller. The unit includes a 12 V power adapter and two USB 3.0 cables.

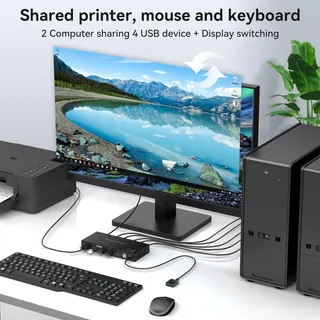

Suited for dual-PC desks needing one screen
This switch fits users who run two systems — such as a work laptop and a gaming tower — on a single high-refresh monitor. It also serves setups that require shared USB 3.0 devices like a keyboard, mouse, printer or webcam. Buyers who need more than two computer ports or who rely on HDMI, USB-C or legacy VGA outputs should look at other models.
Wired controller and cables included
The external controller provides instant switching without reaching for the main unit. Two USB 3.0 cables connect the host computers for peripheral sharing up to 5 Gbps, backward compatible with USB 2.0, 1.1 and 1.0. A 12 V power adapter ensures stable 8K 60 Hz operation; note that a DisplayPort 1.4 cable rated for 8K is not included and must be sourced separately.
Highlights
- Share one monitor and four USB 3.0 peripherals between two computers
- Switch instantly with push buttons or the wired desktop controller
- 8K at 60 Hz resolution for sharp, lag-free visuals
- USB 3.0 hub delivers up to 5 Gbps transfer speeds
- Auto-scan cycles every 3 seconds for hands-free monitoring
Specifications
| Brand | LUOM |
|---|---|
| Series | SW204N-DP |
| Model | SW204N-DP |
| Type | DisplayPort, USB |
| PC Connectors | Displayport, USB |
| Computer Connections | 2 Port DisplayPort |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2 in 1 out DisplayPort KVM Switch: DP KVM Switch is a displayport switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. |
| Features | 2 in 1 out DisplayPort KVM Switch: DP KVM Switch is a displayport switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. Using only 1 set of keyboard, mouse and monitor to control 2 computers devices. Available to use keyboard and mouse without any delay after switch input sources. With 4xUSB 3.0 ports, the KVM Switch is possible to connect Printer, scanner, USB hard drive or other USB devices. Support 8K@60Hz 4K@120Hz, resolution up to 7680*4320@ 60Hz. Support front panel buttons and External switch button to control |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x Displayport KVM Switch, 1 x External Controller Kits, 2 x USB 3.0 Cable, 1 x Power Adapter, 1 x User Manual. |
Questions about this item
Which cables must I already have to connect both computers to the LUOM SW204N-DP?
You need two DisplayPort cables for video and two USB 3.0 cables for data; the box includes the USB cables but not the DisplayPort cables.
Will my older USB 2.0 keyboard and mouse work through the four USB 3.0 ports on this switch?
Yes, the four USB 3.0 ports are backward compatible with USB 2.0, 1.1 and 1.0 devices.
How can I confirm the switch is passing an 8K 60 Hz signal after I connect everything?
Check that the monitor’s on-screen display reports 8K at 60 Hz and that the front-panel LED for the active port is lit.
