LUOM SW204N-DP 2-port DP 1.4 KVM switch 8K60 4×USB 3.0
Shares one DisplayPort monitor and four USB 3.0 peripherals between two computers at up to 8K60 resolution
- TypeDisplayPort, USB
- PC ConnectorsDisplayport, USB
- Computer Connections2 Port DisplayPort
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller

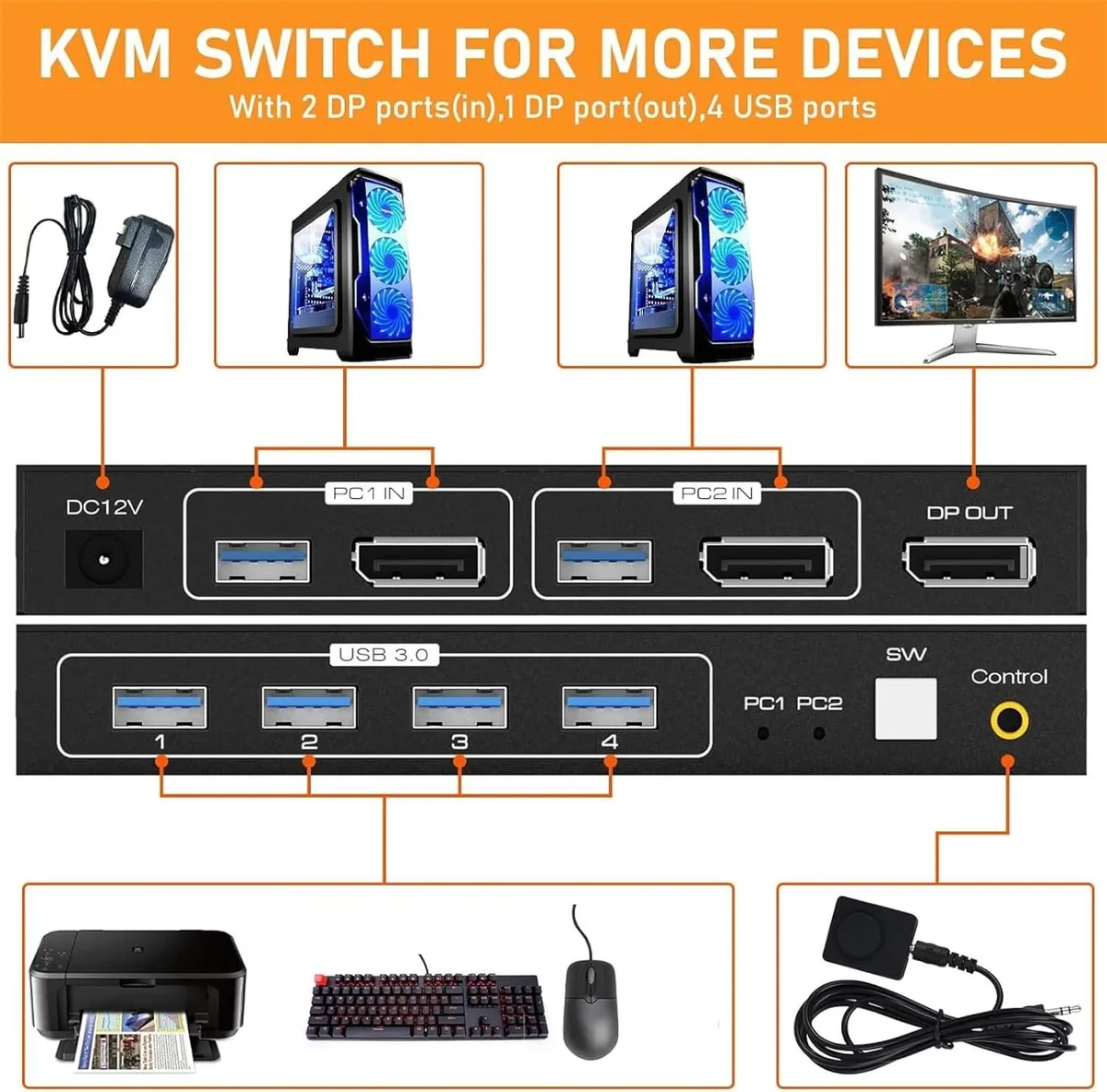

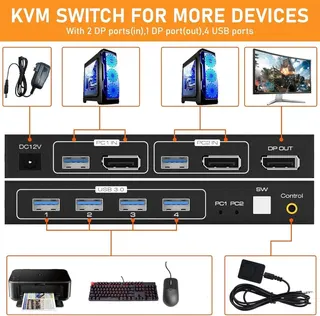

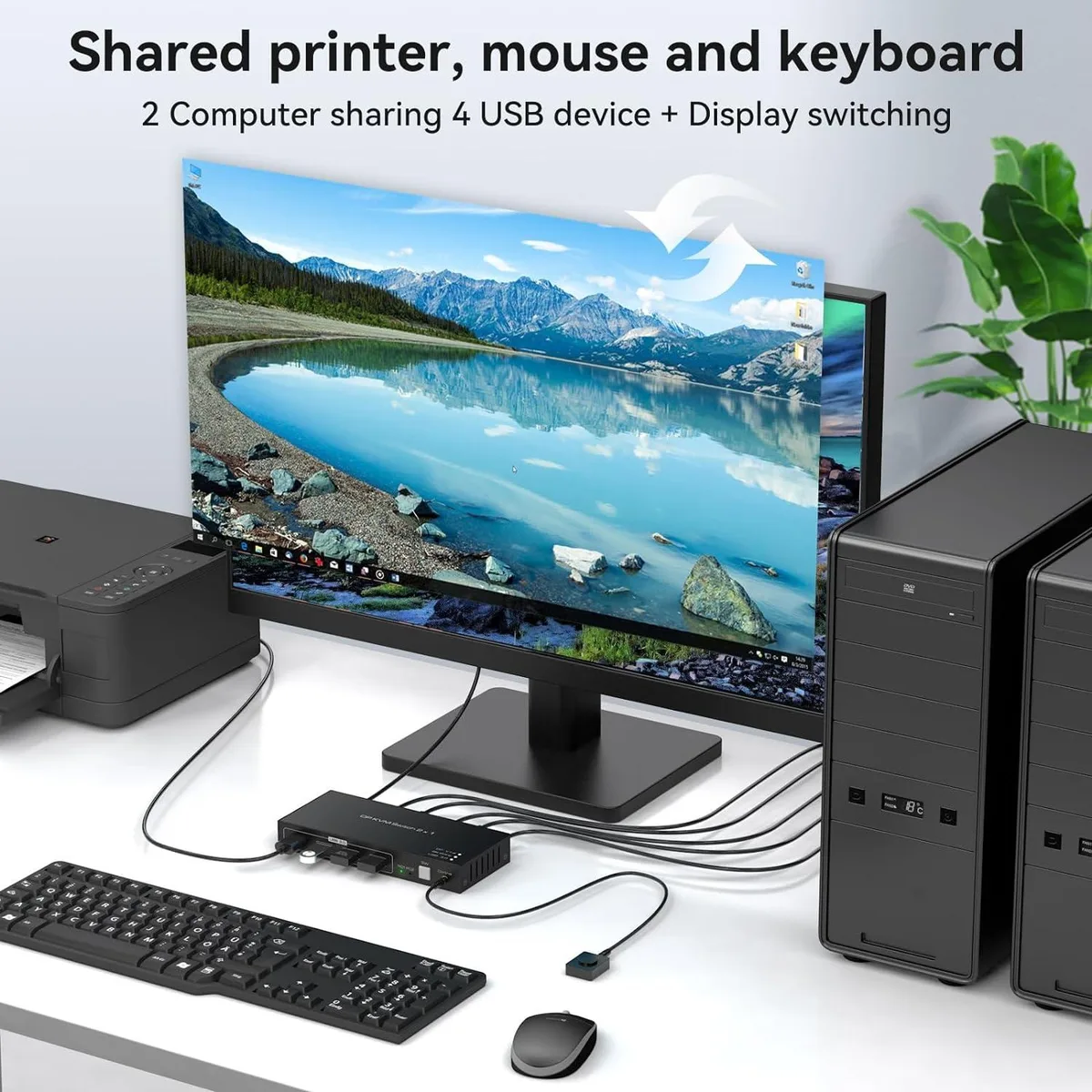

- Share one monitor and four USB 3.0 devices between two computers
- Switch instantly via front buttons or wired desktop controller with zero input lag
- Drive 8K at 60 Hz or 4K at 120 Hz for ultra-sharp visuals
- Works with Windows, macOS, Linux and Unix — no drivers required
- Compact 5.43 × 5.35 × 1.46 in unit includes power adapter and cables
Two-computer DP KVM
The LUOM SW204N-DP is a DisplayPort 1.4 KVM switch that lets two computers share one monitor and four USB 3.0 peripherals. It supports resolutions up to 7680x4320 at 60 Hz and 4K at 120 Hz. The unit includes a wired desktop controller for convenient switching.
Push-button and wired control
Switching is done via front-panel buttons or the supplied external controller with no noticeable delay for keyboard and mouse. The package provides two USB 3.0 cables and a power adapter for a straightforward plug-and-play setup on Windows, macOS or Linux. Auto-scan cycles every three seconds if enabled.
DisplayPort 1.4 bandwidth ceiling
The single-monitor output is limited to the DisplayPort 1.4 link rate, so 8K at 60 Hz is the maximum supported resolution. Higher refresh rates at 8K or multi-monitor configurations are not possible with this switch. USB 3.0 peripheral throughput is shared across the four ports.
Highlights
- Share one monitor and four USB 3.0 devices between two computers
- Switch instantly via front buttons or wired desktop controller with zero input lag
- Drive 8K at 60 Hz or 4K at 120 Hz for ultra-sharp visuals
- Works with Windows, macOS, Linux and Unix — no drivers required
- Compact 5.43 × 5.35 × 1.46 in unit includes power adapter and cables
Specifications
| Brand | LUOM |
|---|---|
| Series | SW204N-DP |
| Model | SW204N-DP |
| Type | DisplayPort, USB |
| PC Connectors | Displayport, USB |
| Computer Connections | 2 Port DisplayPort |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2 in 1 out DisplayPort KVM Switch: DP KVM Switch is a displayport switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. |
| Features | 2 in 1 out DisplayPort KVM Switch: DP KVM Switch is a displayport switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. Using only 1 set of keyboard, mouse and monitor to control 2 computers devices. Available to use keyboard and mouse without any delay after switch input sources. With 4xUSB 3.0 ports, the KVM Switch is possible to connect Printer, scanner, USB hard drive or other USB devices. Support 8K@60Hz 4K@120Hz, resolution up to 7680*4320@ 60Hz. Support front panel buttons and External switch button to control |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x Displayport KVM Switch, 1 x External Controller Kits, 2 x USB 3.0 Cable, 1 x Power Adapter, 1 x User Manual. |
Questions about this item
How can I confirm the LUOM SW204N-DP is switching correctly at 8K 60Hz?
The front panel LED indicators show which of the two computers is active, and the wired desktop controller lets you change sources instantly; if the monitor displays a stable 7680×4320 image at 60 Hz after each press, the switch is working as intended.
What cables and accessories are included with the LUOM SW204N-DP and what must I provide?
The box contains the KVM unit, an external controller, two USB 3.0 cables, a power adapter and a user manual; you will need to supply two DisplayPort cables (one per computer) and one DisplayPort cable to the monitor.
The specs mention 8K 60Hz and 4K 244Hz — which resolution and refresh rate should I choose for my setup?
Pick the mode your monitor and both graphics cards support; 8K at 60 Hz gives maximum detail for productivity, while 4K at 244 Hz suits high-refresh gaming — the switch handles either without extra configuration.
