LUOM SW204N-DP 2-Port DisplayPort KVM Switch 8K@60Hz
Shares one 8K@60Hz DisplayPort monitor and four USB 3.0 peripherals between two computers with a wired desktop controller
- TypeDisplayPort, USB
- PC ConnectorsDisplayport, USB
- Computer Connections2 Port DisplayPort
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Desktop Controller

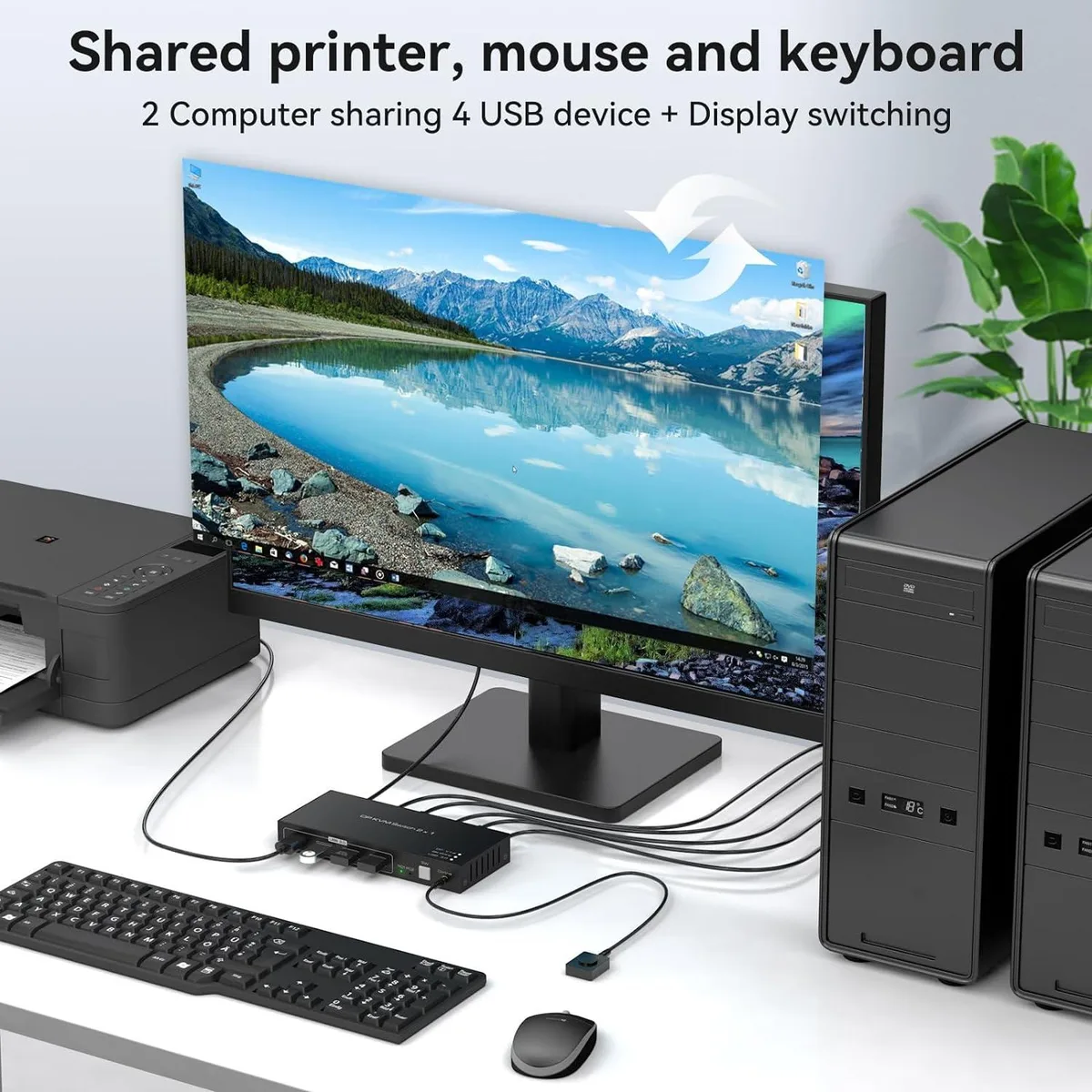

- Share one monitor and four USB 3.0 peripherals between two computers
- Switch instantly via push buttons or the wired desktop controller
- Supports 8K resolution at 60 Hz with backward compatibility
- USB 3.0 ports deliver up to 5 Gbps data transfer speed
- Auto-scan cycles through connected PCs every 3 seconds
2-Port DisplayPort KVM Switch 8K@60Hz

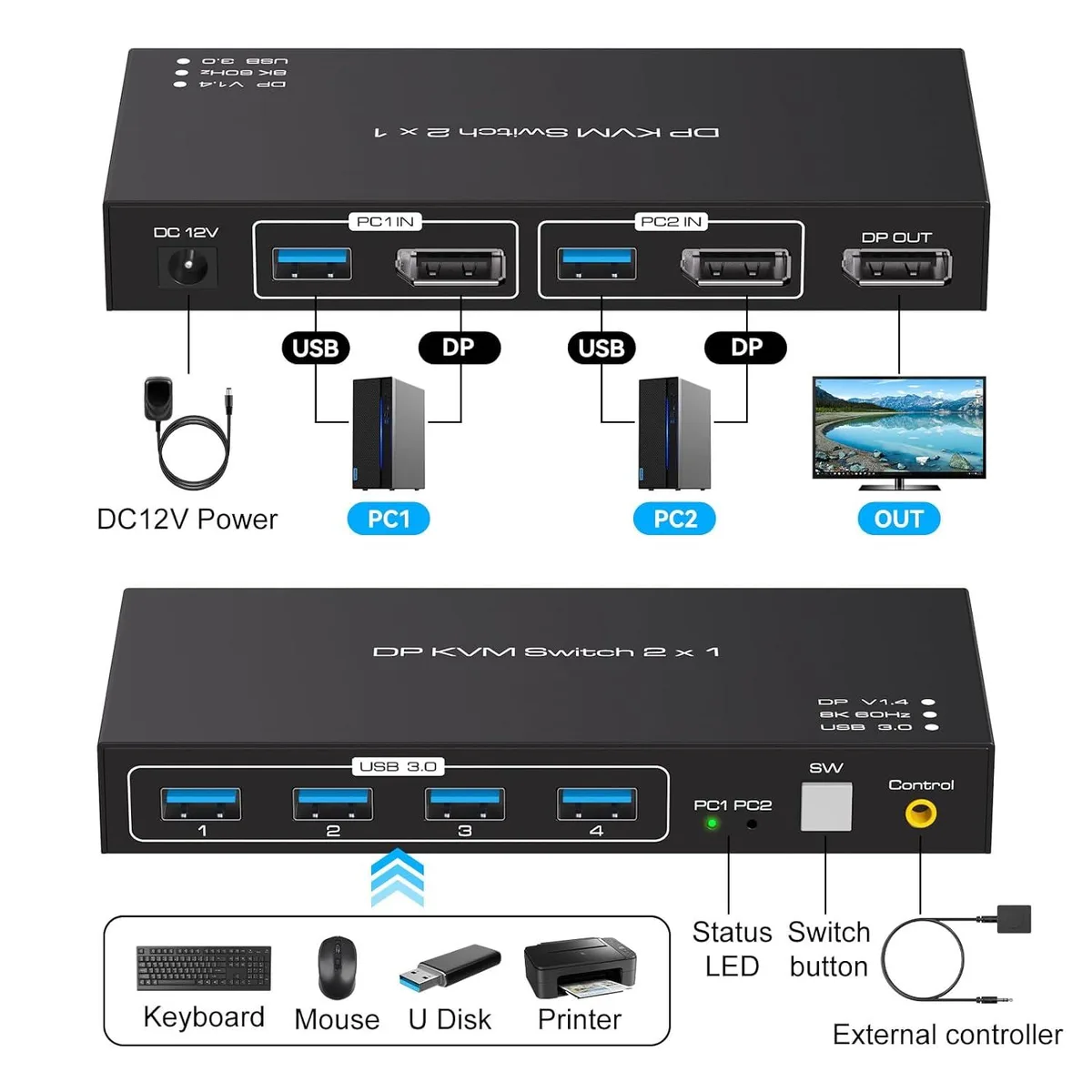

The LUOM SW204N-DP lets two computers share one DisplayPort monitor and up to four USB 3.0 peripherals such as a keyboard, mouse, printer or scanner. Switching is handled by front push-buttons or the included wired desktop controller. The unit ships with two USB 3.0 cables, a power adapter and a manual.
DisplayPort 1.4 bandwidth and USB 3.0 limits
Achieving 8K at 60 Hz requires a DisplayPort 1.4 cable; the final resolution also depends on the graphics cards, monitor and cabling working together. The switch is backward compatible with lower resolutions and can also run 4K at 120 Hz. USB 3.0 ports provide up to 5 Gbps data transfer, while USB 2.0 devices fall back to 480 Mbps.
Two-computer, single-monitor constraint
This KVM supports exactly two source computers and one display output. Builders who need to connect more than two systems or drive multiple monitors simultaneously will need a different switching solution.
Highlights
- Share one monitor and four USB 3.0 peripherals between two computers
- Switch instantly via push buttons or the wired desktop controller
- Supports 8K resolution at 60 Hz with backward compatibility
- USB 3.0 ports deliver up to 5 Gbps data transfer speed
- Auto-scan cycles through connected PCs every 3 seconds
Specifications
| Brand | LUOM |
|---|---|
| Series | SW204N-DP |
| Model | SW204N-DP |
| Type | DisplayPort, USB |
| PC Connectors | Displayport, USB |
| Computer Connections | 2 Port DisplayPort |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Desktop Controller |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | 2 in 1 out DisplayPort KVM Switch: DP KVM Switch is a displayport switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. |
| Features | 2 in 1 out DisplayPort KVM Switch: DP KVM Switch is a displayport switch that help 2 computers/laptops to share 1 monitor and 4 USB 3.0 devices such as scanner, printer, mouse, keyboard. Using only 1 set of keyboard, mouse and monitor to control 2 computers devices. Available to use keyboard and mouse without any delay after switch input sources. With 4xUSB 3.0 ports, the KVM Switch is possible to connect Printer, scanner, USB hard drive or other USB devices. Support 8K@60Hz 4K@120Hz, resolution up to 7680*4320@ 60Hz. Support front panel buttons and External switch button to control |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1x Displayport KVM Switch, 1 x External Controller Kits, 2 x USB 3.0 Cable, 1 x Power Adapter, 1 x User Manual. |
Questions about this item
This model comes in a single 2-port version — what does that mean for my two-computer setup?
The SW204N-DP connects two computers to one DisplayPort monitor and four USB 3.0 peripherals, so a single switch handles both systems without extra hubs.
The box says 8K at 60 Hz — will I actually see that on my display?
8K at 60 Hz is supported when both computers, the monitor and the cables are DisplayPort 1.4 capable; otherwise the switch falls back to the highest common resolution such as 4K at 120 Hz.
What DisplayPort version does this KVM use and what bandwidth limit does that impose?
It requires DisplayPort 1.4 cables for 8K at 60 Hz, which provides the necessary bandwidth; with older cables the link speed drops to the cable's rated maximum.
