LUOM
LUOM SDI2HDMI HD 3G Mini Converter SDI to HDMI Adapter Auto Format Video Capturing Device
Converts SD, HD and 3G-SDI to HDMI with auto format detection and SDI loop-through up to 1080p 60 Hz
- InterfaceSDI to HDMI
- 3D SupportYes
- FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
- Resolution Support1080P
- Camera ResolutionUp to 1080p Video
- Video Sampling4:2:2 and 4:4:4
- Auto-detects SD, HD and 3G-SDI signals for plug-and-play setup
- Converts SDI to HDMI while looping SDI out for monitoring chains
- Supports 1080p at 60 Hz with 4:2:2 and 4:4:4 colour sampling
- Powers from USB 5 V so no external adapter is required
- Works with Windows, macOS, Linux and Android without extra drivers

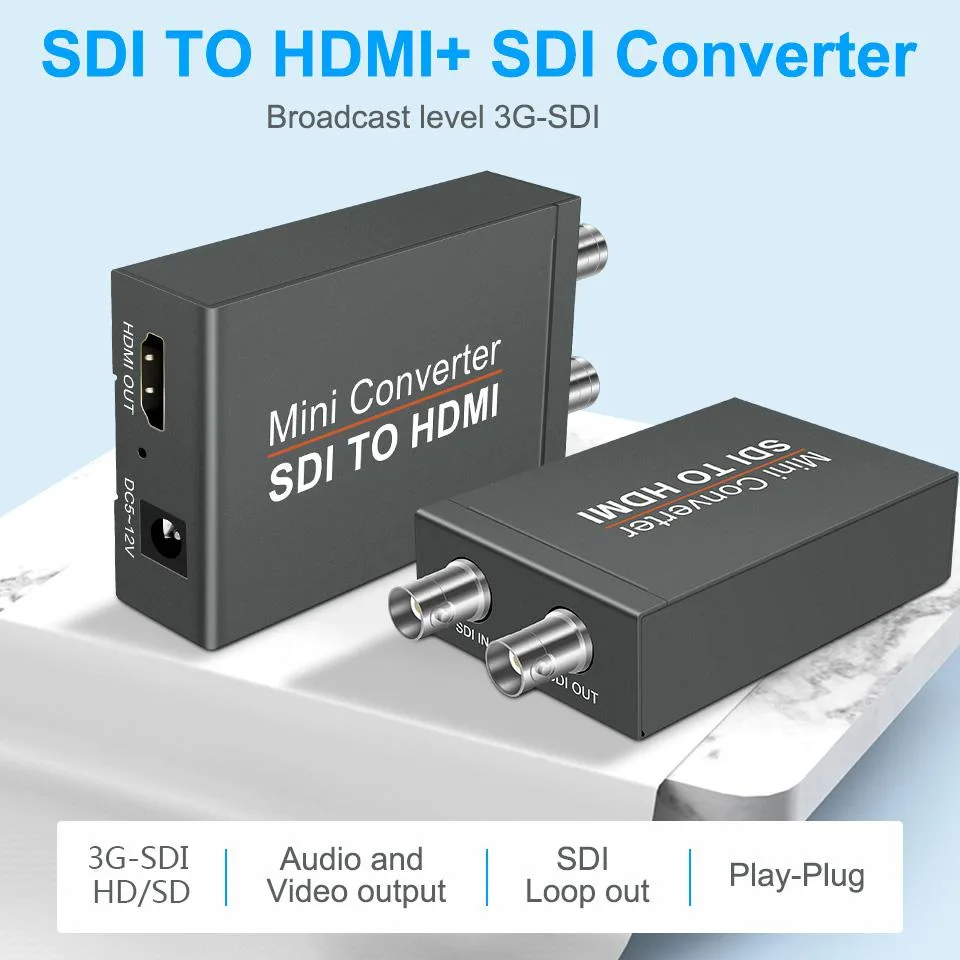

SDI-to-HDMI converter for cameras and streaming
The LUOM SDI2HDMI is a compact video capturing device that converts SD, HD and 3G-SDI signals to HDMI. It is designed for camera operators, live-streaming setups and broadcast monitoring where a BNC source must feed an HDMI display or recorder.
Auto detection of SDI standards up to 3G
The unit accepts SDI data rates of 270 Mb/s, 1.485 Gbps and 2.97 Gbps with input resolutions from 480i and 567i through 720p at 50 or 60 Hz to 1080i and 1080p at 24, 25, 30, 50 and 60 Hz. It outputs HDMI at matching frame rates up to 1080p60 and preserves 8 channels of 48 kHz digital audio.
USB-powered loop-through for monitoring chains
Power comes from a USB DC 5 V connection so no separate mains adapter is required. One BNC input feeds both an HDMI output and a reclocked SDI loop output, letting the signal continue to a second SDI device while simultaneously driving a monitor, projector or capture card. It does not convert HDMI back to SDI.
Highlights
- Auto-detects SD, HD and 3G-SDI signals for plug-and-play setup
- Converts SDI to HDMI while looping SDI out for monitoring chains
- Supports 1080p at 60 Hz with 4:2:2 and 4:4:4 colour sampling
- Powers from USB 5 V so no external adapter is required
- Works with Windows, macOS, Linux and Android without extra drivers
Specifications
| Brand | LUOM |
|---|---|
| Series | SDI2HDMI |
| Model | SDI2HDMI |
| Interface | SDI to HDMI |
| 3D Support | Yes |
| Format | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz，720P/@60Hz，1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| Resolution Support | 1080P |
| Camera Resolution | Up to 1080p Video |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color | Black |
| Video | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz，720P/@60Hz，1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| HDMI | 1 In |
| SDI | 2 Out |
| USB Port | 1 |
| LED Indicator | Yes |
| Display | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz，720P/@60Hz，1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| System Requirements | Windows / Android / MacOS/ Linux ect. |
| Power Supply | NO need external power supply |
| Specification | - Product Type: SDI to HDMI Converter - Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI) - Output Port: 1 x HDMI Port, 1 x SDI Output (BNC) - Power Supply: USB DC 5V/1A |
| Feature | - SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps - SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz - HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz - Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C - One way SDI output, with the Re-clock function, can support multiple cascaded |
| Dimensions | 5.83 x 4.49 x 2.44 inches |
| Weight | 7.8 ounces |
| Package Content | 1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual. |
| Option | HDMI - 1080p |
Questions about this item
What does 1080p at 60 Hz mean for my live-stream setup?
The converter accepts 3G-SDI up to 1080p 60 Hz and reproduces the same frame rate on HDMI, so motion stays smooth for streaming software.
How does the 2.97 Gbps SDI data rate limit what I can send?
2.97 Gbps is the 3G-SDI ceiling, so the unit handles 1080p 60 Hz but cannot pass 4K or higher bit-depth formats.
What mounting space does the mini converter need on a camera rig?
The compact black enclosure fits in a hand and draws power from a USB 5 V 1 A source, so it can sit on a cold-shoe mount or Velcro strap without an external brick.
