LUOM
LUOM SDI2HDMI 3G-SDI to HDMI Video Capturing Device
Converts 3G-SDI, HD-SDI and SD-SDI signals to HDMI up to 1080p60 with an SDI loop output and USB power
- InterfaceSDI to HDMI
- 3D SupportYes
- FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
- Resolution Support1080P
- Camera ResolutionUp to 1080p Video
- Video Sampling4:2:2 and 4:4:4
- Auto-detects SD, HD and 3G-SDI signals for instant setup
- Powers directly from USB 5 V so no extra adapter is needed
- Loops SDI output while sending HDMI up to 1080p60 for monitoring
- Handles 8-channel 48 kHz audio alongside video for complete capture
- Works with Windows, macOS, Linux and Android without drivers
What this converter does

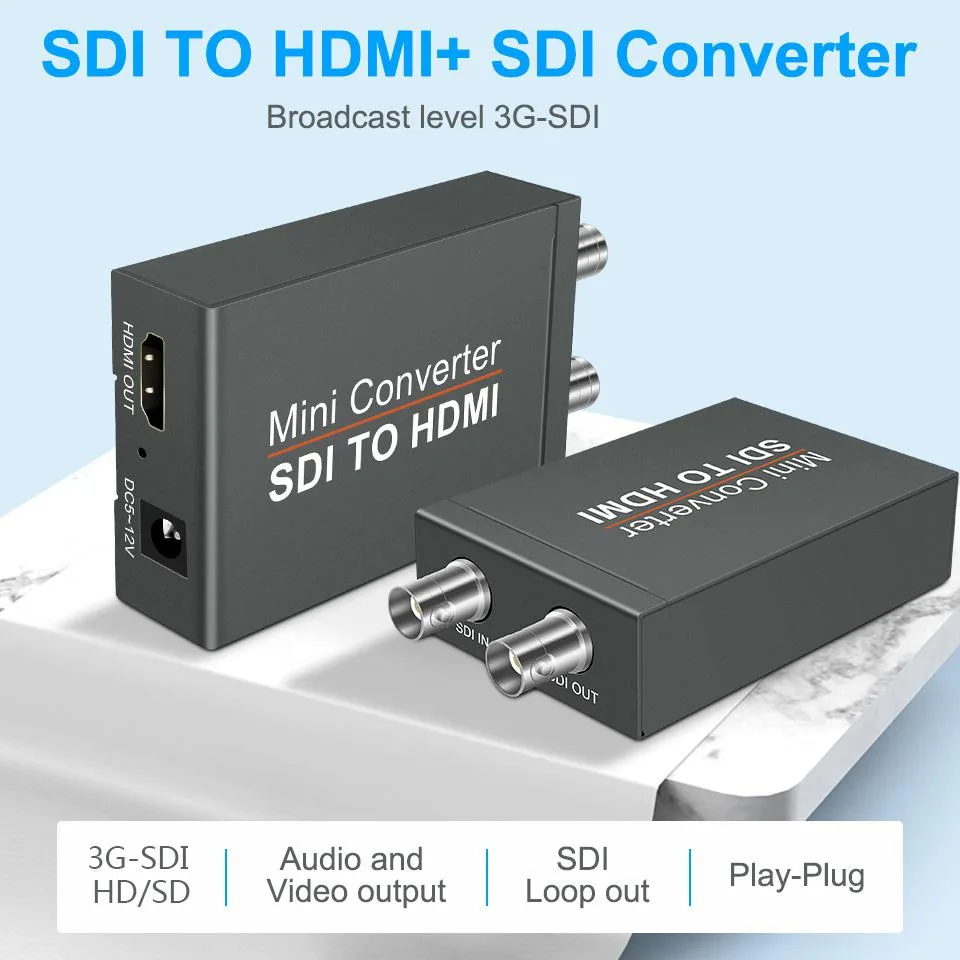

The LUOM SDI2HDMI turns 3G-SDI, HD-SDI or SD-SDI sources into an HDMI 1.3 signal while passing the original SDI stream through a loop output. It accepts 480i, 567i, 720p and 1080i/p at 24, 25, 30, 50 or 60 Hz and auto-detects the incoming format. Eight channels of 48 kHz digital audio travel with the video. Power comes from a USB 5 V 1 A connection, so no separate mains adapter is required.
Who it suits and who it does not
Editors, broadcasters and streamers who need to monitor or record professional SDI cameras on HDMI displays or capture cards will find the auto-detection and loop-through handy. It is not for anyone needing 4K or UHD conversion, nor for HDMI-to-SDI direction, and it cannot handle RF, CVBS, AHD, TVI or CVI signals on the BNC port.
Build integration
The box connects with one BNC input, one HDMI output and one BNC loop output, drawing up to 5 W from any USB port that supplies 5 V 1 A. It runs on Windows, macOS, Linux or Android without drivers. Operating range is 0 to 50 °C at 10 to 85 % humidity, so it fits in a rack, a mobile cart or a quiet studio desk.
Highlights
- Auto-detects SD, HD and 3G-SDI signals for instant setup
- Powers directly from USB 5 V so no extra adapter is needed
- Loops SDI output while sending HDMI up to 1080p60 for monitoring
- Handles 8-channel 48 kHz audio alongside video for complete capture
- Works with Windows, macOS, Linux and Android without drivers
Specifications
| Brand | LUOM |
|---|---|
| Series | SDI2HDMI |
| Model | SDI2HDMI |
| Interface | SDI to HDMI |
| 3D Support | Yes |
| Format | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz，720P/@60Hz，1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| Resolution Support | 1080P |
| Camera Resolution | Up to 1080p Video |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color | Black |
| Video | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz，720P/@60Hz，1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| HDMI | 1 In |
| SDI | 2 Out |
| USB Port | 1 |
| LED Indicator | Yes |
| Display | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz，720P/@60Hz，1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| System Requirements | Windows / Android / MacOS/ Linux ect. |
| Power Supply | NO need external power supply |
| Specification | - Product Type: SDI to HDMI Converter - Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI) - Output Port: 1 x HDMI Port, 1 x SDI Output (BNC) - Power Supply: USB DC 5V/1A |
| Feature | - SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps - SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz - HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz - Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C - One way SDI output, with the Re-clock function, can support multiple cascaded |
| Dimensions | 5.83 x 4.49 x 2.44 inches |
| Weight | 7.8 ounces |
| Package Content | 1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual. |
| Option | HDMI - 1080p |
Questions about this item
What SDI source resolutions can I feed into the LUOM SDI2HDMI converter?
The converter accepts 480i/567i, 720p at 30/50/60 Hz, 1080i at 50/60 Hz, and 1080p at 24/25/30/50/60 Hz via its BNC input.
Will my existing 1080p monitor work with the HDMI output and can I still loop the SDI signal onward?
Yes — the HDMI output supports 1080p up to 60 Hz and the unit provides a simultaneous SDI loop-out on the second BNC port.
How do I confirm the LUOM SDI2HDMI is converting correctly after I connect it?
The built-in LED indicator lights when a valid SDI signal is detected and the HDMI output is active.
