LUOM

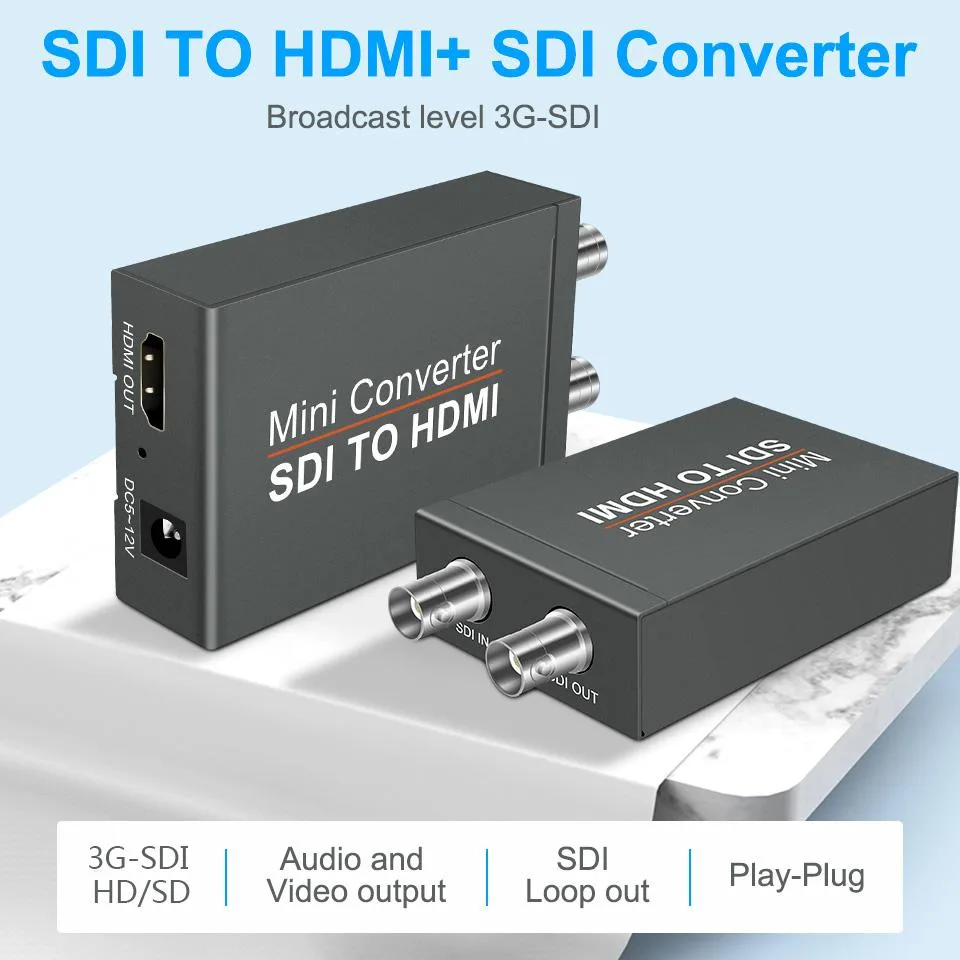

LUOM SDI2HDMI 3G-SDI to HDMI Converter with Loopout 1080P
Converts SD, HD and 3G-SDI signals to HDMI up to 1080p with a loop-through SDI output and auto format detection
- InterfaceSDI to HDMI
- 3D SupportYes
- FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
- Resolution Support1080P
- Camera ResolutionUp to 1080p Video
- Video Sampling4:2:2 and 4:4:4
- Auto-detects SD, HD and 3G-SDI signals for instant setup
- Loop-out SDI passes the source to a second display without loss
- HDMI output reaches 1080p at 60 Hz for full-HD monitoring
- USB-powered at 5 V so no external brick is required
- Runs on Windows, macOS, Linux and Android without extra drivers
SDI-to-HDMI Converter with Loopout
The LUOM SDI2HDMI converts SD-SDI, HD-SDI and 3G-SDI signals to HDMI while providing an SDI loop output. It accepts 480i, 567i, 720p and 1080i/p formats up to 1080p60. Video sampling at 4:2:2 and 4:4:4 is supported along with eight channels of 48 kHz digital audio. The unit is intended for camera operators, broadcast engineers and streamers who need to view or record SDI sources on HDMI monitors.
Verify SDI Source and Power
Confirm the source outputs a recognised SD-SDI, HD-SDI or 3G-SDI signal at one of the listed resolutions and frame rates. The converter does not accept RF, CVBS, AHD, TVI or CVI signals carried on BNC connectors. It requires a USB DC 5 V/1 A supply; ensure a suitable port or adapter is available. Operating temperature must stay between 0 °C and 50 °C with humidity below 85 % RH non-condensing.
Integration Into a Video Chain
Connect the BNC input to the camera or switcher, the HDMI output to a monitor, recorder or streaming encoder, and the SDI loop output to a second display or downstream device. The converter passes embedded audio through HDMI without separate cabling. It draws up to 5 W from the USB supply, leaving other power outlets free. The compact metal enclosure fits on a desk or in a rack shelf without blocking adjacent ports.
Highlights
- Auto-detects SD, HD and 3G-SDI signals for instant setup
- Loop-out SDI passes the source to a second display without loss
- HDMI output reaches 1080p at 60 Hz for full-HD monitoring
- USB-powered at 5 V so no external brick is required
- Runs on Windows, macOS, Linux and Android without extra drivers
Specifications
| Brand | LUOM |
|---|---|
| Series | SDI2HDMI |
| Model | SDI2HDMI |
| Interface | SDI to HDMI |
| 3D Support | Yes |
| Format | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz，720P/@60Hz，1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| Resolution Support | 1080P |
| Camera Resolution | Up to 1080p Video |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color | Black |
| Video | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz，720P/@60Hz，1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| HDMI | 1 In |
| SDI | 2 Out |
| USB Port | 1 |
| LED Indicator | Yes |
| Display | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz，720P/@60Hz，1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| System Requirements | Windows / Android / MacOS/ Linux ect. |
| Power Supply | NO need external power supply |
| Specification | - Product Type: SDI to HDMI Converter - Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI) - Output Port: 1 x HDMI Port, 1 x SDI Output (BNC) - Power Supply: USB DC 5V/1A |
| Feature | - SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps - SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz - HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz - Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C - One way SDI output, with the Re-clock function, can support multiple cascaded |
| Dimensions | 5.83 x 4.49 x 2.44 inches |
| Weight | 7.8 ounces |
| Package Content | 1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual. |
| Option | HDMI - 1080p |
Questions about this item
What comes in the box and do I need to buy any cables or power adapters separately?
The package includes the converter, a DC power adapter and a user manual. No extra power supply or cables are required beyond your own SDI and HDMI leads.
The specs list several SDI input formats — which one should I match to my camera or source?
Choose the format your camera outputs: 480i/567i, 720p at 50 or 60 Hz, 1080i at 50 or 60 Hz, or 1080p at 24, 25, 30, 50 or 60 Hz. The converter auto-detects the incoming signal.
The headline says 1080P — what resolution and frame rate will I actually see on my monitor?
HDMI output supports up to 1080p at 60 Hz, with additional 720p at 50 or 60 Hz and 1080i at 50 or 60 Hz depending on the detected SDI input.
