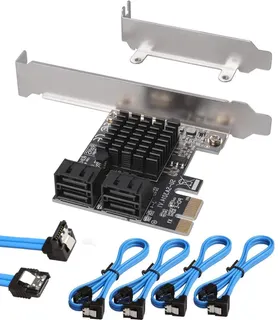

Silver PCIe x1 card with four SATA ports, heatsink, low-profile bracket and cables

LUOM

LUOM PCIE24SATA 4-Port SATA 6Gbps PCIe 3.0 Card

SKU CH-71J5-YE0N9

Adds four SATA 6Gbps ports via a PCIe 3.0 x1 slot using a Marvell 88SE9215 controller, includes four cables and a low-profile bracket

  • ColorSilver
  • TypeSATA
  • Transfer RateUp to 6 Gbps
  • Operating System SupportedWindows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS.
  • Dimensions6.14 x 5.08 x 1.02 inches
  • Weight4.2 ounces

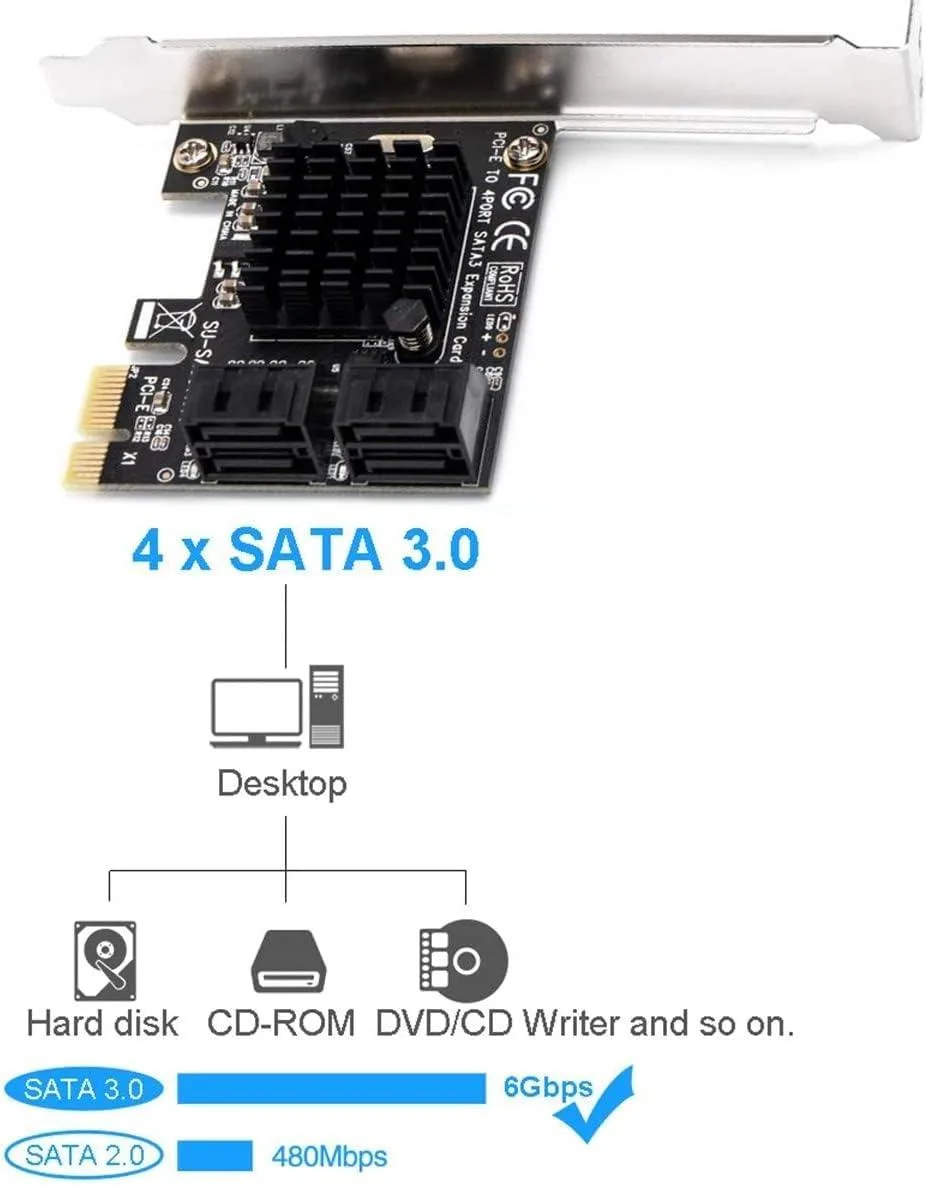

  • Add four SATA 6 Gbps drives with a single PCIe 3.0 slot
  • Marvell 88SE9215 controller delivers stable AHCI operation across Windows, Mac and Linux
  • On-board heatsink keeps the chipset cool during sustained transfers
  • Four 350 mm cables and a low-profile bracket included for compact builds
  • Boot from port one while the other three handle data storage

Four-Port SATA 6Gbps Expansion

This PCIe 3.0 x1 card adds four SATA III ports to a desktop system. It targets builders who need extra internal drive connections without using M.2 slots or external enclosures. The Marvell 88SE9215 controller provides AHCI operation across all ports. A low-profile bracket and four cables are included for immediate installation.

Single-Lane PCIe 3.0 Bandwidth

The x1 link limits total throughput to 1 GB/s shared among the four ports. Simultaneous heavy traffic on multiple drives will saturate the bus before individual SATA 6Gbps limits are reached. Port 1 alone supports OS boot; the remaining three ports cannot boot an operating system. Windows 7 requires a separate driver while later Windows, macOS and Linux work natively.

Four Drives With Shared 1 GB/s Headroom

Four SATA hard drives or SSDs connect directly with the supplied 350 mm cables. Sequential transfers on one drive approach the SATA III ceiling, but concurrent workloads divide the 1 GB/s pool. The onboard heatsink keeps the controller within the 0 °C to 70 °C operating range. Builders needing hardware RAID or more than four ports must choose a different controller.

Highlights

  • Add four SATA 6 Gbps drives with a single PCIe 3.0 slot
  • Marvell 88SE9215 controller delivers stable AHCI operation across Windows, Mac and Linux
  • On-board heatsink keeps the chipset cool during sustained transfers
  • Four 350 mm cables and a low-profile bracket included for compact builds
  • Boot from port one while the other three handle data storage

Specifications

BrandLUOM
SeriesPCIE24SATA
ModelPCIE24SATA
ColorSilver
TypeSATA
Transfer RateUp to 6 Gbps
Operating System SupportedWindows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS.
Dimensions6.14 x 5.08 x 1.02 inches
Weight4.2 ounces
Temperature0° C~ 70° C
Humidity5%-95%, non-condensing
Features4 PORTS SATA CARD - This PCIE SATA card allows you to add 4 SATA 3.0 6Gbps devices to your computer. You could make the system to boot from this SATA controller but non RAID. If your motherboard has RAID function, you could make a RAID with this SATA card.
POWERFUL CHIPSET - SATA controller with using Marvell 88SE9215 chip,more stable and compatible.Port Multiplier FIS-based and Command-based switching supported. enhances heat dissipation, long-lasting high temperature resistance and more stable operation.
WORKS WITH ALL COMPUTERS - 4 Ports SATA Card with a low profile Bracket and 4
Package ContentsKit includes: 1 X 4-port SATA expansion card, 4 X SATA cable(40cm/15.8in), 1 X low-profile bracket, 1 X screwdriver, 2 X screw kit, 1 X anti-static bag.

Questions about this item

What does the 6 Gbps SATA 3.0 rating mean for actual drive throughput in my PC?

The card connects through a PCIe 3.0 x1 lane, so total bandwidth caps at 1 GB/s; each drive can reach 6 Gbps but four drives share that 1 GB/s pipe.

Which PCIe slot versions and sizes will this card work with?

It fits any PCIe x1, x4, x8 or x16 slot from PCIe 3.0 down to earlier generations, running at x1 electrical width.

What physical space and mounting hardware do I need to install it?

The board measures 6.14 x 5.08 x 1.02 inches and ships with a low-profile bracket, screwdriver and screws for standard or slim cases.
