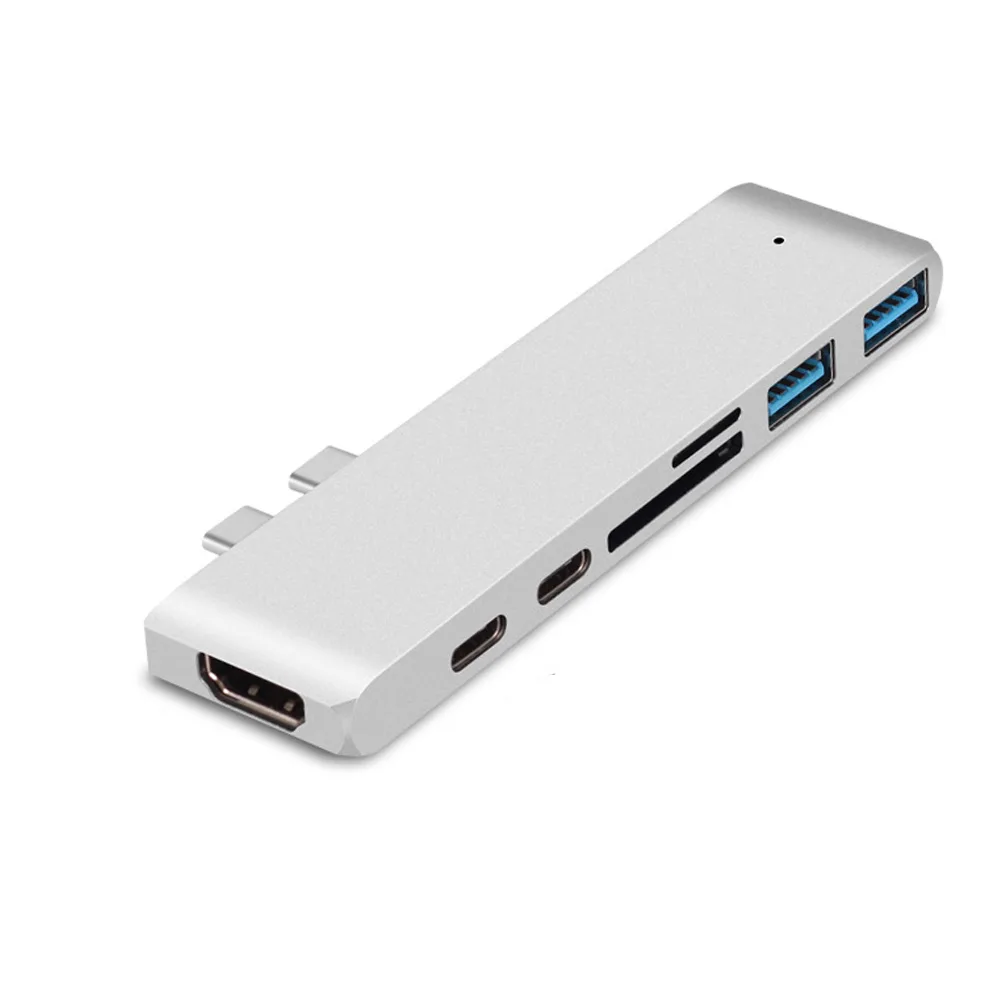

Silver aluminium dual USB-C hub with HDMI, Thunderbolt and card slots

LUOM

LUOM PB-8945 Silver USB hub 7-in-2 Thunderbolt 3 40Gbps 4K HDMI 100W PD

SKU CH-CFAP-F4C7J

A 7-port aluminium hub adds 4K HDMI, Thunderbolt 3, USB-C data, two USB 3.0 ports and SD card readers to 2016-2020 MacBook Pro and Air models with up to 100W pass-through charging

  • ColorSilver
  • TypeDocking Station
  • StandardsUSB 3.1
  • Ports7 Ports
  • Transfer RateUp to 5 Gbps
  • LEDsPower/Activity
  • 4K HDMI output at 30 Hz for external displays
  • Thunderbolt 3 port delivers 40 Gbps data and 100 W pass-through charge
  • Two USB 3.0 ports at 5 Gbps for fast peripheral transfers
  • USB-C data port at 5 Gbps expands connectivity without video
  • SD and Micro SD readers up to 104 MB/s for quick media access

MacBook Pro and Air expansion hub

The LUOM PB-8945 Silver hub adds seven ports through two USB-C connectors on 2016 to 2020 MacBook Pro and Air models. It provides HDMI video, Thunderbolt connectivity, USB-C data, two USB 3.0 ports and SD card readers in a compact aluminium housing.

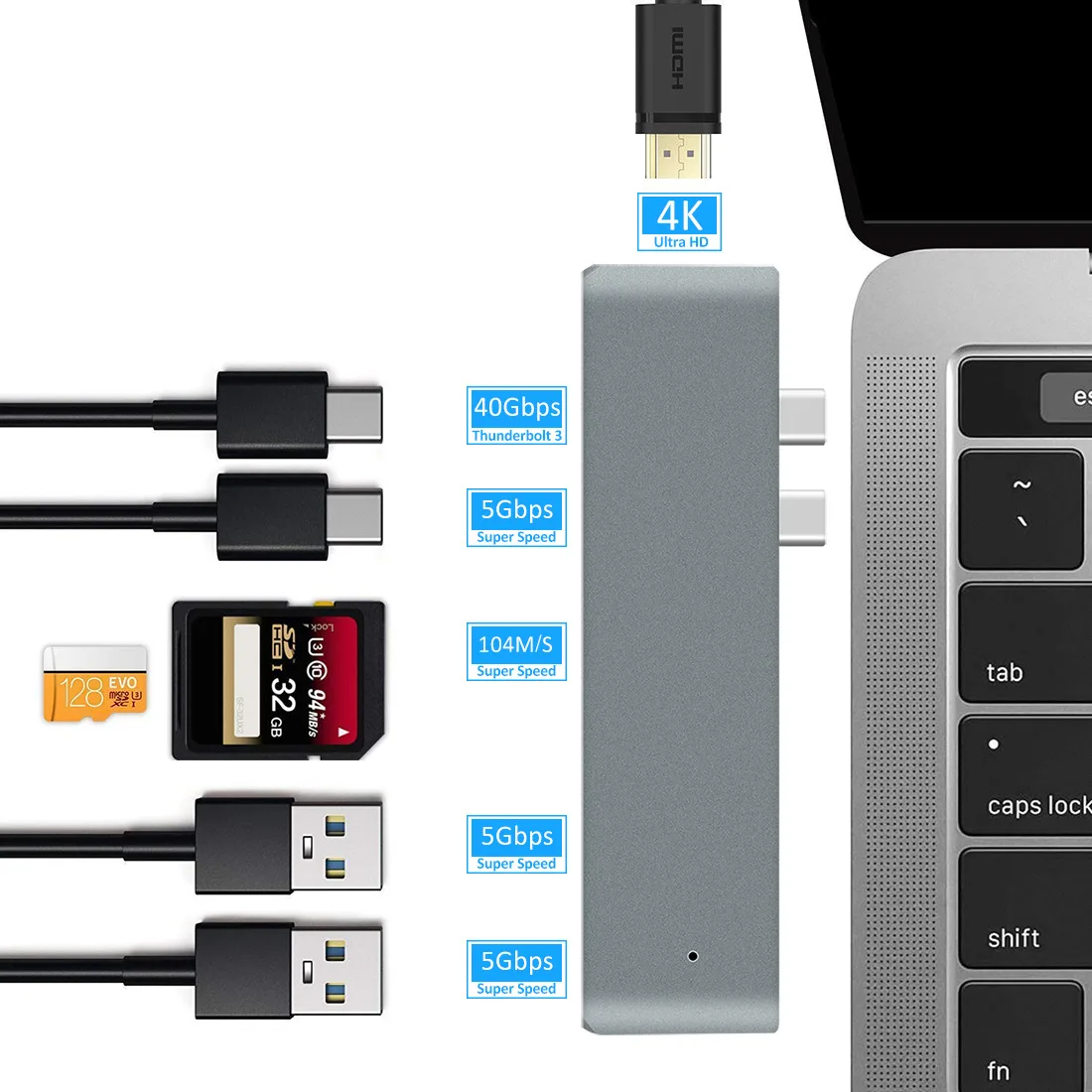

4K HDMI at 30 Hz and Thunderbolt at 40 Gbps

HDMI output reaches 1080p at 60 Hz or 4K at 30 Hz with HDCP 1.4 and 2.2 support. The Thunderbolt port delivers up to 40 Gbps data, 5K at 60 Hz video and 100 W power delivery for 87 W laptop charging. USB-C and USB 3.0 ports run at 5 Gbps for data only.

Card readers up to 2 TB and 104 MB/s

Integrated SD and microSD slots accept cards up to 2 TB capacity with transfer speeds up to 104 MB/s. The hub draws 5 V DC input and operates from 0 °C to 70 °C. The second USB-C port handles data only and does not support charging or video output.

Highlights

  • 4K HDMI output at 30 Hz for external displays
  • Thunderbolt 3 port delivers 40 Gbps data and 100 W pass-through charge
  • Two USB 3.0 ports at 5 Gbps for fast peripheral transfers
  • USB-C data port at 5 Gbps expands connectivity without video
  • SD and Micro SD readers up to 104 MB/s for quick media access

Specifications

BrandLUOM
SeriesPB-8945
ModelPB-8945
ColorSilver
TypeDocking Station
StandardsUSB 3.1
Ports7 Ports
Transfer RateUp to 5 Gbps
LEDsPower/Activity
Power Input5V DC
Temperature0° C~ 70° C
Humidity0-80% RH, (Non Condensing)
Windows VistaWorks with Windows Vista

Questions about this item

Will the 4K HDMI port on this PB-8945 hub drive my older 1080p monitor at 60 Hz?

Yes, the HDMI output supports 1080p at 60 Hz and scales down from its maximum 4K 30 Hz capability automatically.

How can I verify the Thunderbolt 3 port is delivering 40 Gb/s data speed after I connect it?

Open System Report on macOS, select Thunderbolt, and confirm the link speed reads 40 Gb/s for the connected device.

Does the package include a Thunderbolt 3 cable for the host connection, or do I need to buy one separately?

The hub has two fixed Type-C male plugs that connect directly to the MacBook; no separate cable is required or supplied.
