LUOM
LUOM OZK8 USB-C 8K KVM Switch 2-Port 100W PD
Shares one 8K monitor, keyboard, mouse, seven USB 2.0 devices, audio and Ethernet between two USB-C computers with 100 W charging
- TypeUSB C
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share two computers on one 8K monitor at 60 Hz
- Charge a laptop with 100 W Power Delivery while working
- Connect seven USB 2.0 devices and switch them instantly

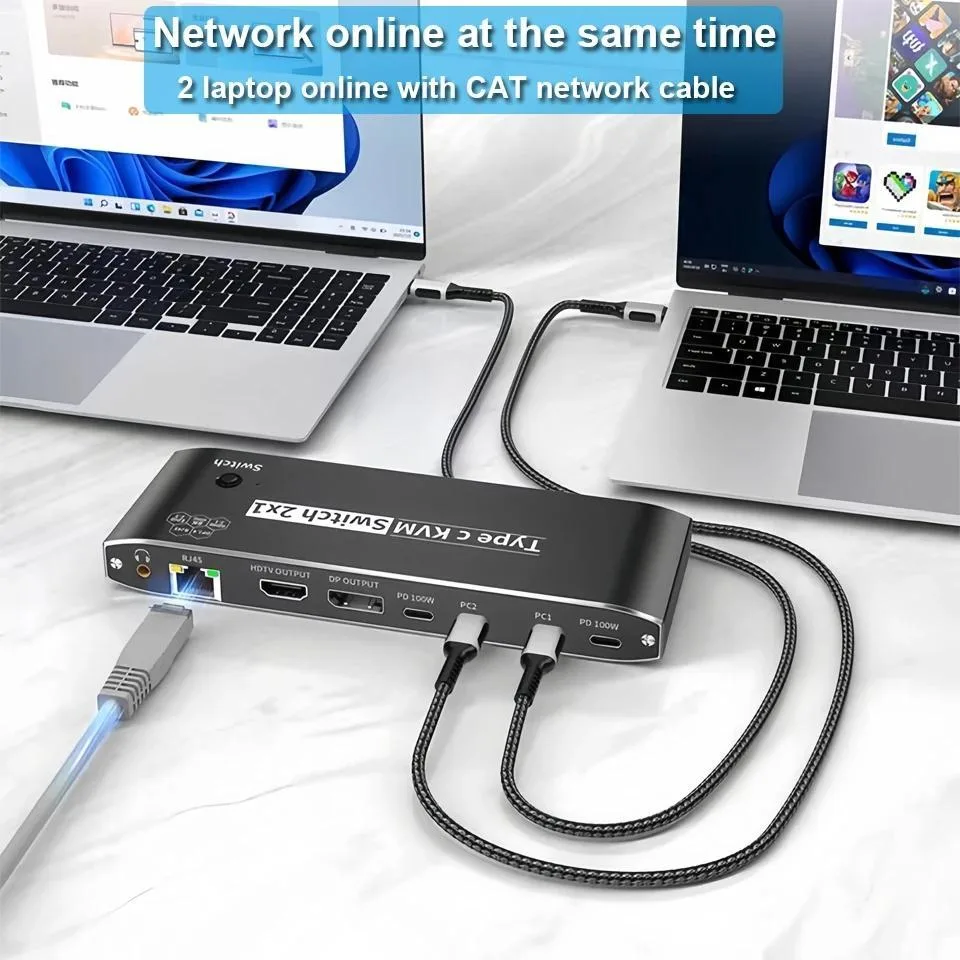

- Add wired 100 Mbps networking and 3.5 mm audio to the setup
- Press the top button or wait three seconds for automatic switching
Two-Port 8K KVM Switch for USB-C Systems

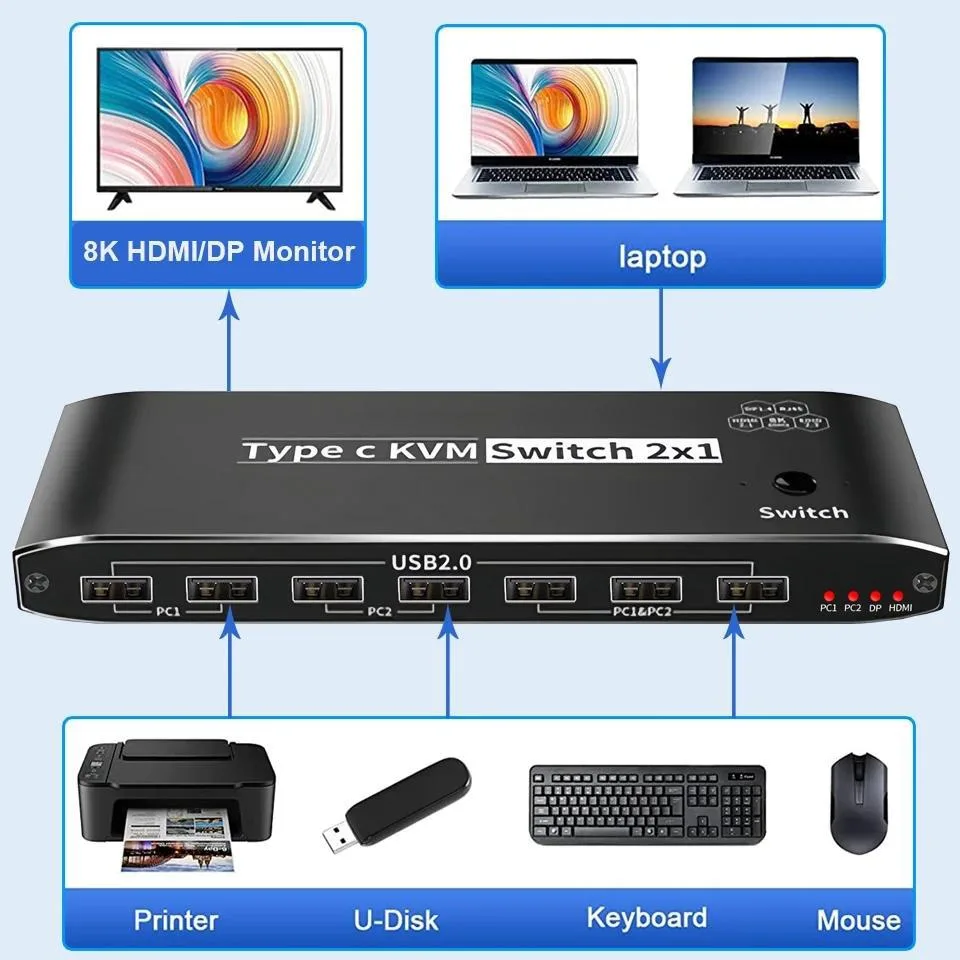

This LUOM OZK8 KVM switch lets you control two USB-C computers from one DisplayPort or HDMI monitor, one keyboard, one mouse, seven USB 2.0 peripherals, a 3.5 mm audio device and a 100 Mbps RJ45 link. It supports video up to 7680×4320 at 60 Hz with DSC and delivers up to 100 W of Power Delivery to the active host.
Check Your Hosts and Cables Before Ordering
Each computer must provide a USB-C port that carries DisplayPort Alt Mode and accepts 100 W PD charging. You will need two USB-C Gen 2 cables for the host links and a separate DisplayPort 1.4 or HDMI 2.1 cable to the monitor; the included 1.2 m cables cover the host connections only. The switch draws its own power from the host link, so both laptops must remain connected while in use.
Fits a Dual-Laptop Desk with One Display
The aluminium unit sits on the desk and frees you from unplugging peripherals when you change machines — press the top button or let the 3-second autoscan rotate inputs. Seven USB 2.0 ports at 480 Mbps keep printers, drives and dongles shared, while the single video output handles 8K 60 Hz or 4K 144 Hz workflows. Compatible with Windows 7 through 11 and macOS 9.0 and later.
Highlights
- Share two computers on one 8K monitor at 60 Hz
- Charge a laptop with 100 W Power Delivery while working
- Connect seven USB 2.0 devices and switch them instantly
- Add wired 100 Mbps networking and 3.5 mm audio to the setup
- Press the top button or wait three seconds for automatic switching
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK8 |
| Model | OZK8 |
| Type | USB C |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs. 2in 1out USB C KVM 8K Switcher: 2 x USB-C PC Input Ports, 2 x 100W PD Charge 1 x RJ45,two computers online at the same time 1 x 3.5mm jack,audio extractor 7x USB Ports |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x USB C Thunderbolt 4 KVM Switch 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) 1 x User Manual |
Questions about this item
Does the box include the cables I need to connect two USB-C computers and a monitor, or do I buy them separately?
The package provides the switch, two 1.2 metre USB-C Gen 2 cables and a manual. You must supply your own DisplayPort 1.4 or HDMI 2.1 cable for the monitor.
The specs list both DisplayPort 1.4 and HDMI 2.1 outputs — which one should I use for 8K at 60 Hz?
Either port can deliver 8K at 60 Hz with DSC; choose DisplayPort 1.4 if your monitor has DP, otherwise use HDMI 2.1.
In daily use, what does the 100 W power-delivery rating actually do for my laptop?
It supplies up to 100 W to the connected laptop while the switch is powered, so the laptop charges during operation.
