LUOM OZK8 8K 60Hz USB-C KVM Switch 2-Port 100W PD
Two-computer USB-C KVM switch shares one 8K 60 Hz monitor, 7 USB 2.0 ports, 3.5 mm audio and 100 Mbps Ethernet with 100 W power delivery
- TypeUSB C
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share two computers on one 8K monitor at 60 Hz
- Charge laptops with 100 W Power Delivery while working
- Connect seven USB 2.0 peripherals without re-plugging

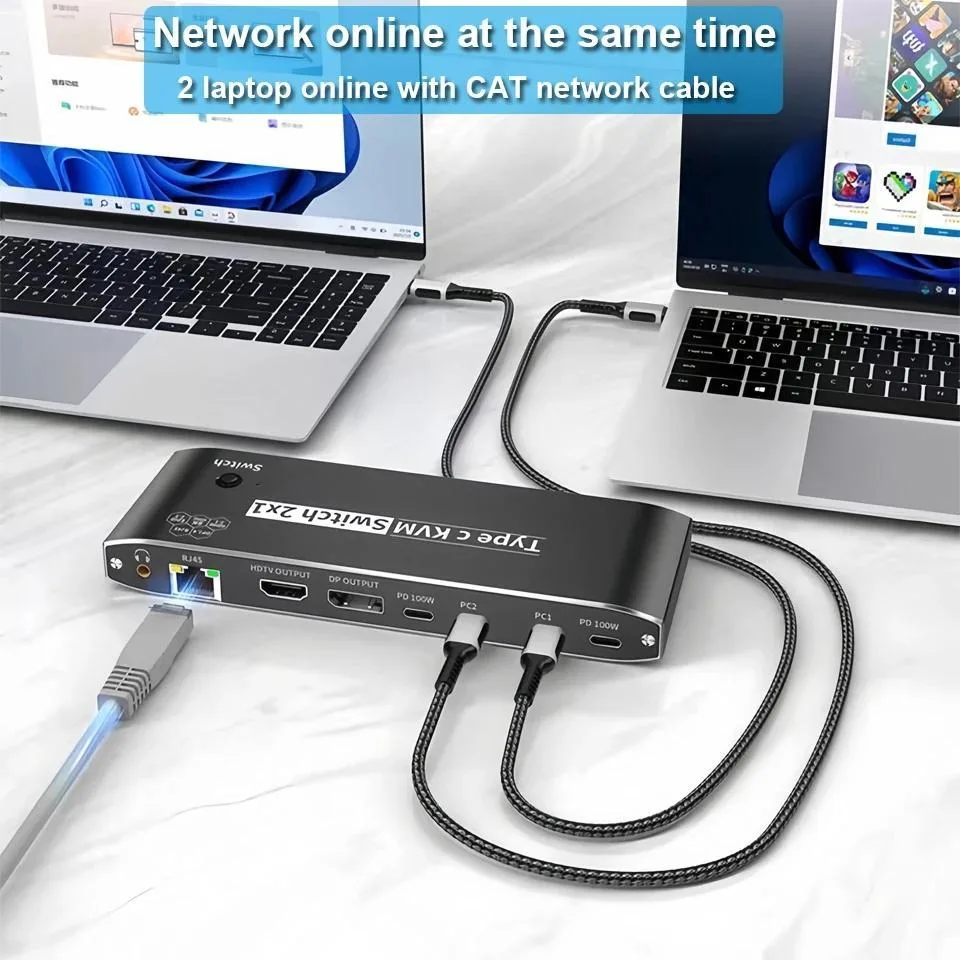

- Add wired 100 Mbps network via RJ45 port
- Switch instantly with front push-button controls
2-Port USB-C KVM with 8K 60 Hz Video

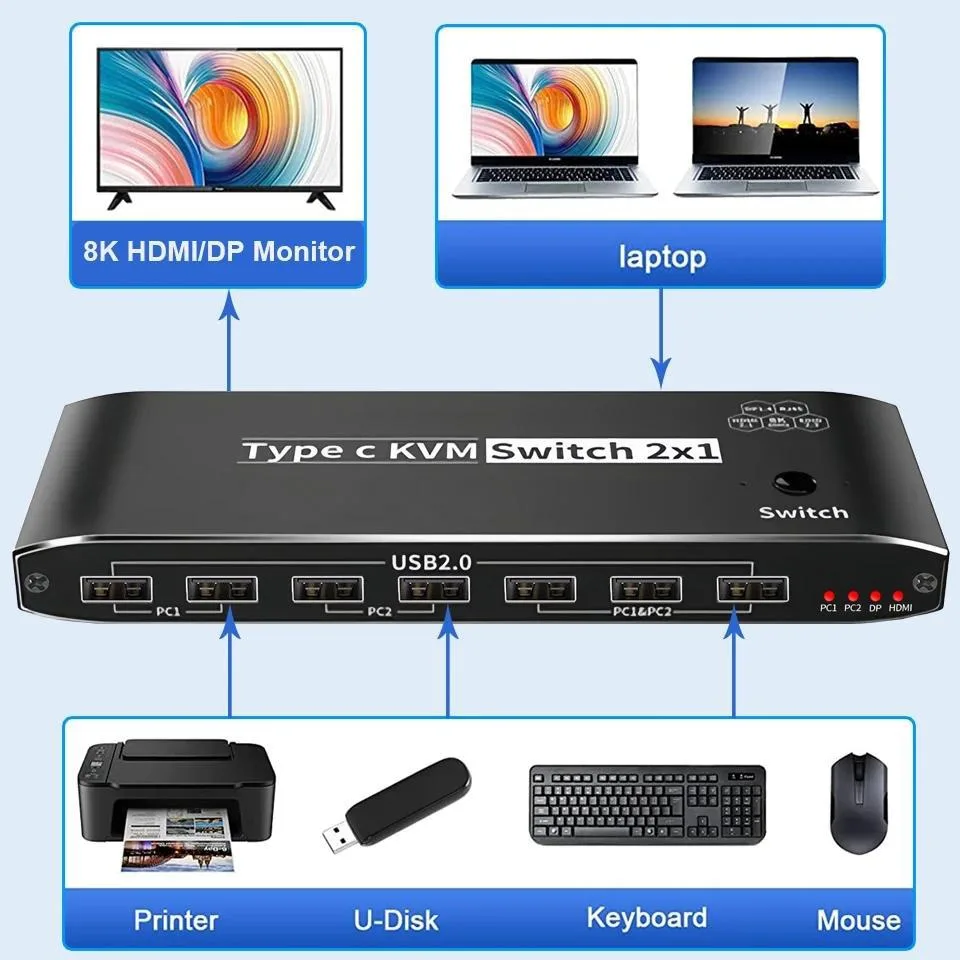

The LUOM OZK8 connects two USB-C computers to one DisplayPort 1.4 or HDMI 2.1 monitor at up to 7680×4320 resolution and 60 Hz refresh rate with DSC. It provides 100 W Power Delivery to each host, a 100 Mbps RJ45 network port, seven USB 2.0 Type-A ports for peripherals, and a 3.5 mm audio jack. Switching is handled by front push buttons with a 3-second auto-scan option and LED indicators.
For dual-laptop users sharing one high-resolution
Suits professionals who dock two USB-C laptops or a laptop and a desktop to a single 8K monitor, keyboard, mouse, wired network and USB accessories. Not suited for setups that require Thunderbolt 3 or 4 video tunnelling, USB 3.x or USB4 peripheral speeds, or more than two computer inputs. Buyers needing 8K at 60 Hz without DSC compression should look elsewhere.
8K 60 Hz over DisplayPort 1.4 or HDMI 2.1 with DSC
The decisive specification is the 8K 60 Hz output which relies on Display Stream Compression over DP 1.4 (32.4 Gbps) or HDMI 2.1 (48 Gbps). If your monitor and source devices support 8K 60 Hz with DSC, this switch delivers that mode; if they only support 8K 30 Hz or lack DSC, the maximum usable resolution drops to 8K 30 Hz or 4K high-refresh rates.
Highlights
- Share two computers on one 8K monitor at 60 Hz
- Charge laptops with 100 W Power Delivery while working
- Connect seven USB 2.0 peripherals without re-plugging
- Add wired 100 Mbps network via RJ45 port
- Switch instantly with front push-button controls
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK8 |
| Model | OZK8 |
| Type | USB C |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs. 2in 1out USB C KVM 8K Switcher: 2 x USB-C PC Input Ports, 2 x 100W PD Charge 1 x RJ45,two computers online at the same time 1 x 3.5mm jack,audio extractor 7x USB Ports |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x USB C Thunderbolt 4 KVM Switch 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) 1 x User Manual |
Questions about this item
Will the OZK8 KVM switch work with my older 1080p monitor at 60Hz?
Yes, the switch supports 1080p at 60Hz, 120Hz and 165Hz over both HDMI 2.1 and DisplayPort 1.4 outputs.
How can I confirm the 8K 60Hz signal is active after connecting my laptop?
The front-panel LED indicators show the selected port, and your monitor's on-screen menu will report 7680×4320 at 60Hz when DSC is enabled.
Do the included 1.2 meter USB-C cables carry both video and 100W charging?
The two supplied 1.2 meter USB Gen 2 cables handle video, data and 100W Power Delivery; you only need to add your own DisplayPort or HDMI cable for the monitor.
