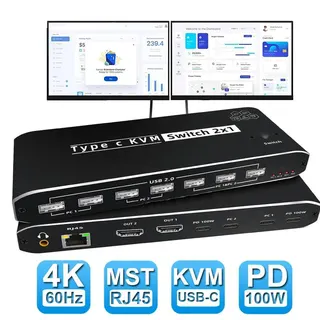

LUOM OZK8 2-Port USB-C KVM Switch 8K 60Hz 100W PD
A two-port USB-C KVM switch lets two computers share one 8K 60 Hz display, seven USB 2.0 peripherals, audio and a 100 Mbps network connection.
- TypeUSB C
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one monitor and seven USB devices between two computers
- Push-button switching with three-second auto-scan option
- 8K 60 Hz or 4K 144 Hz video over HDMI 2.1 or DP 1.4
- 100 W Power Delivery keeps each laptop charged
- Aluminium chassis with LED status indicators
Two-computer USB-C KVM for shared peripherals

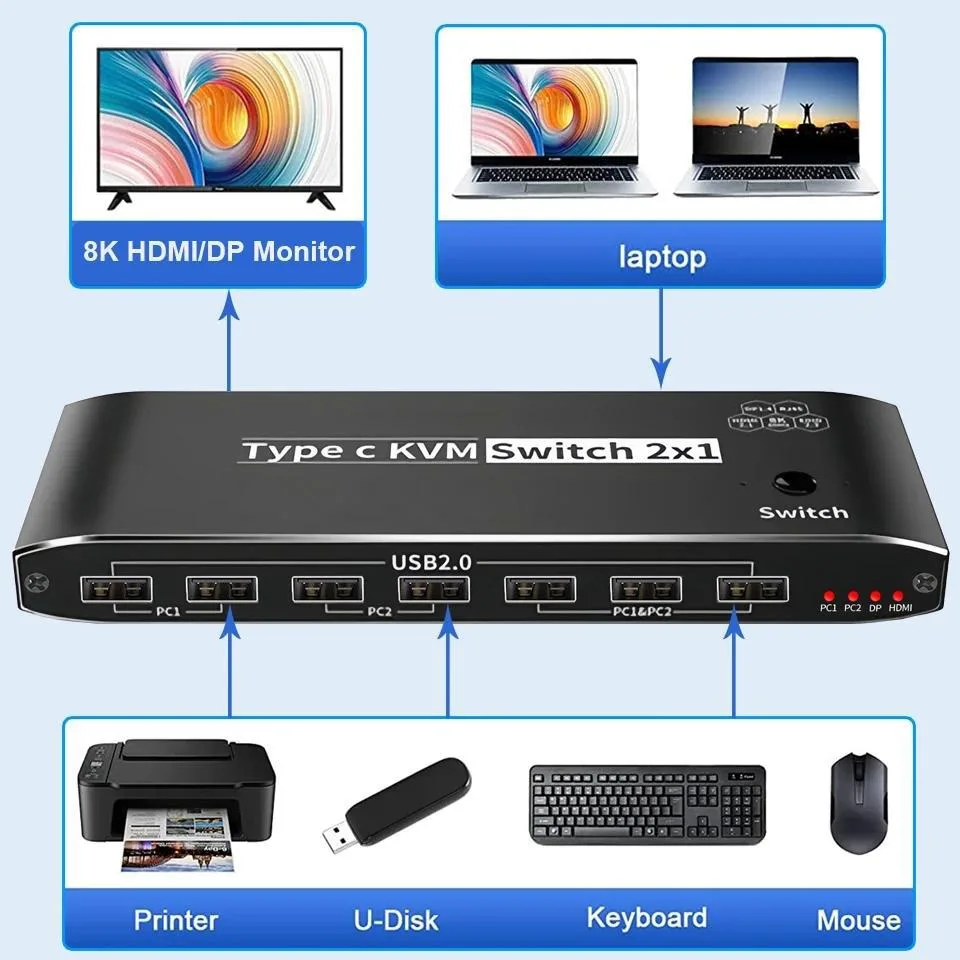

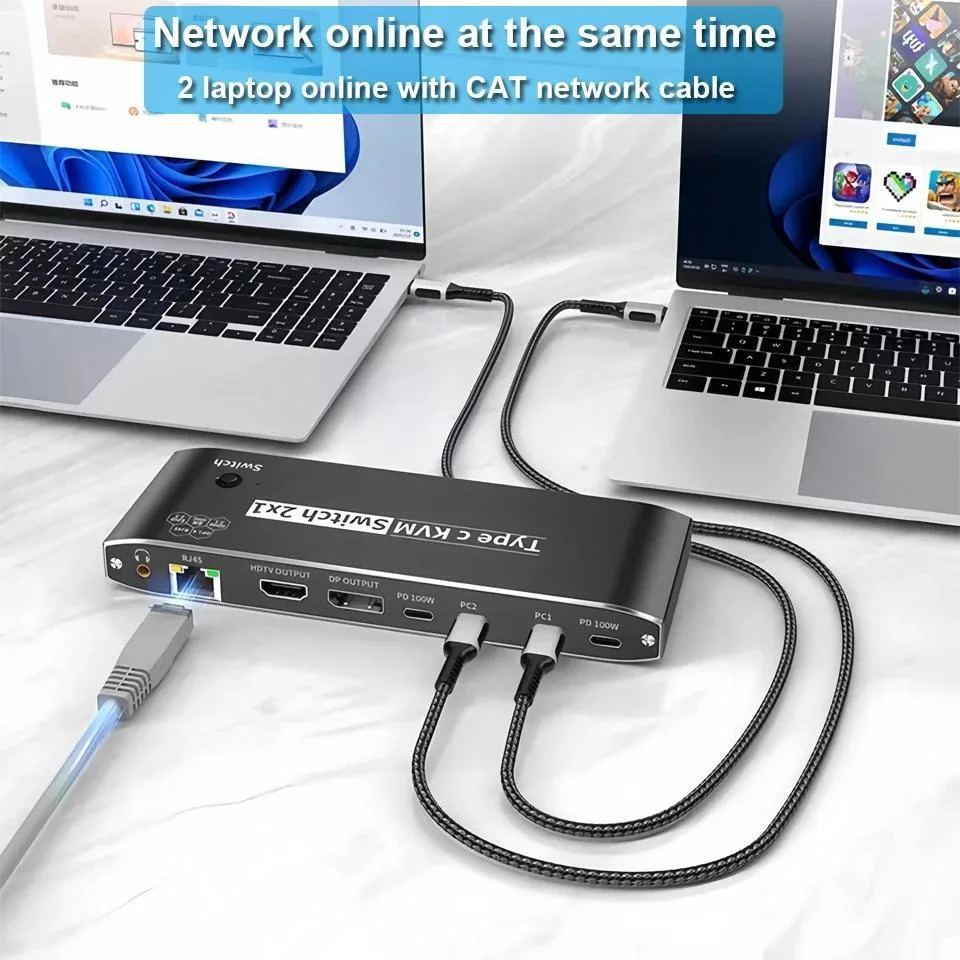

This LUOM OZK8 switch lets two USB-C laptops or desktops share one DisplayPort or HDMI monitor, seven USB 2.0 devices and a single RJ45 network connection. Front-panel push buttons change the active computer in seconds. The aluminium-alloy housing measures 5.43 x 5.35 x 1.46 inches and weighs 9.52 ounces. Two 1.2-metre USB-C cables are included in the box.
Passive cooling with 100 W Power Delivery
The unit draws power from the attached computers and uses its metal shell to dissipate heat without fans, so operation stays silent. Each USB-C input supports Power Delivery 3.0 up to 100 W, feeding the corresponding laptop while the switch is active. Video bandwidth reaches 48 Gbps over HDMI 2.1 and 32.4 Gbps over DisplayPort 1.4, handling 8K at 60 Hz with DSC or 4K at 144 Hz without exceeding thermal limits.
USB-C laptops with Thunderbolt 3 or 4 ports
Both computers must provide USB-C video-out and PD charging on the same port; the switch does not accept separate power bricks or legacy video cables. Seven USB 2.0 Type-A ports free up laptop hubs for keyboards, mice, printers and storage drives. The single monitor output means only one screen can be active at a time, so users needing simultaneous dual-display setups should look elsewhere.
Highlights
- Share one monitor and seven USB devices between two computers
- Push-button switching with three-second auto-scan option
- 8K 60 Hz or 4K 144 Hz video over HDMI 2.1 or DP 1.4
- 100 W Power Delivery keeps each laptop charged
- Aluminium chassis with LED status indicators
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK8 |
| Model | OZK8 |
| Type | USB C |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs. 2in 1out USB C KVM 8K Switcher: 2 x USB-C PC Input Ports, 2 x 100W PD Charge 1 x RJ45,two computers online at the same time 1 x 3.5mm jack,audio extractor 7x USB Ports |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x USB C Thunderbolt 4 KVM Switch 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) 1 x User Manual |
Questions about this item
How do I install the LUOM OZK8 2-Port USB-C KVM Switch and what step do people often miss?
Connect each computer to a USB-C input port using the included 1.2 meter USB Gen 2 cables, then attach one monitor to the HDMI or DP output; the step users miss is plugging the KVM's own power supply into the PD port so the switch can deliver up to 100 W to each laptop.
What maintenance or replacement will the LUOM OZK8 KVM need later?
No scheduled maintenance is required; if a USB-C cable wears out, replace it with another USB Gen 2 Type-C to Type-C cable of 1.2 meters or shorter to keep 48 Gbps bandwidth and 100 W PD.
What limit appears first during sustained 8K 60 Hz use on the LUOM OZK8?
The HDMI 2.1 output reaches its 48 Gbps bandwidth ceiling at 8K 60 Hz with DSC, so that resolution is the practical ceiling before compression or frame-rate drops occur.
