LUOM OZK8 2-Port 8K USB-C KVM Switch 100W PD 7 USB 2.0 RJ45 Audio
Share one monitor, keyboard, mouse and network between two USB-C computers with 8K 60 Hz video and 100 W charging
- TypeUSB C
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Switch two USB-C computers with one DisplayPort 1.4 or HDMI 2.1 monitor
- Charge both laptops at 100W while sharing keyboard, mouse and seven USB 2.0 devices
- Keep both PCs online simultaneously through the single RJ45 network port
- Extract audio to 3.5 mm speakers or headphones when switching sources
- Toggle between systems instantly using the front push button
Two-computer USB-C KVM for 8K workstations

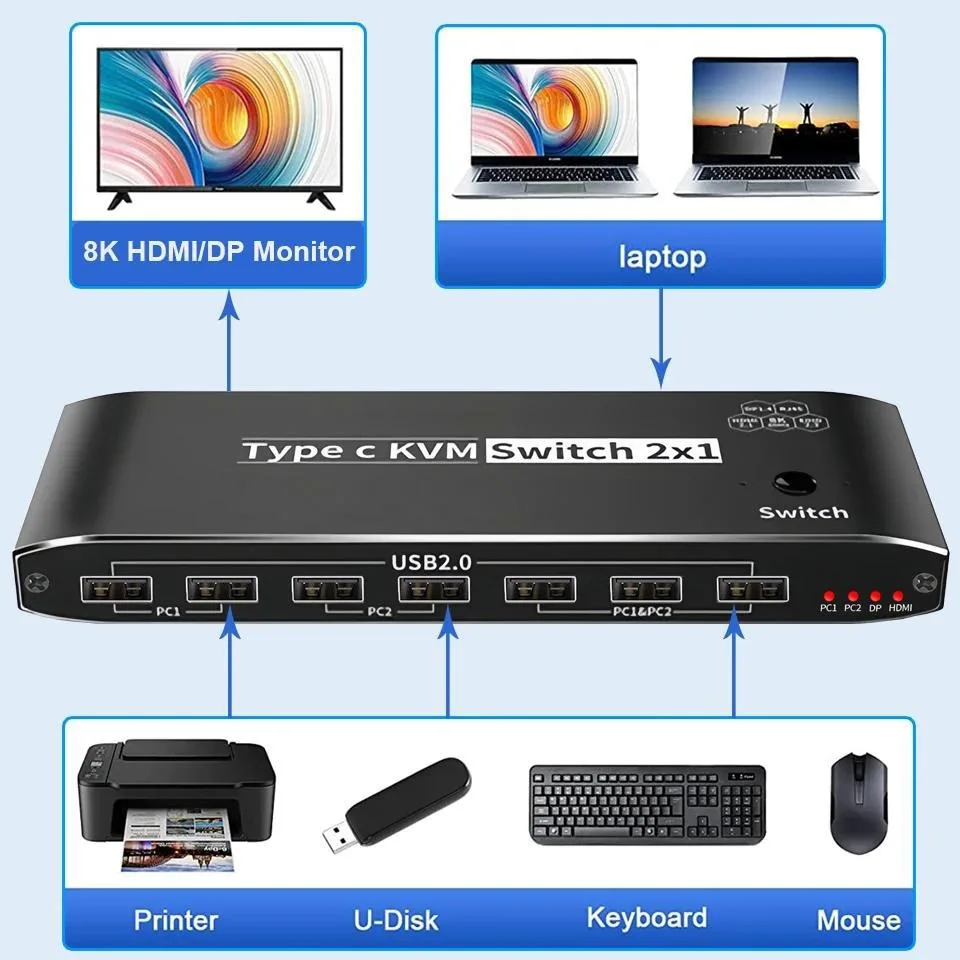

This LUOM OZK8 switch lets two USB-C laptops or desktops share one DisplayPort 1.4 or HDMI 2.1 monitor, seven USB 2.0 peripherals, a 3.5 mm audio jack and a single RJ45 network link. Each upstream port delivers up to 100 W of Power Delivery so both machines can charge while connected. Front-panel push buttons and a three-second auto-scan interval give quick manual or automatic switching.
Sustained 8K60 operation with DSC compression
The HDMI 2.1 output runs at 48 Gbps and the DisplayPort 1.4 output at 32.4 Gbps, supporting 7680×4320 at 60 Hz using Display Stream Compression. USB 2.0 peripherals stay attached to the active system at 480 Mbps during hand-off, and the 100 Mbps RJ45 connection remains live on both computers simultaneously so network sessions do not drop when you switch video focus.
Check your cables and host ports before ordering
You will need two USB-C Gen 2 cables (two 1.2 m cables are included) and either an 8K-rated DisplayPort cable or an 8K-rated HDMI cable no longer than 2.0 m. Each computer must provide a USB-C port that carries DisplayPort Alt Mode and 100 W Power Delivery; hosts limited to lower wattage or without video-alt mode will not drive the 8K output or charge at full speed.
Highlights
- Switch two USB-C computers with one DisplayPort 1.4 or HDMI 2.1 monitor
- Charge both laptops at 100W while sharing keyboard, mouse and seven USB 2.0 devices
- Keep both PCs online simultaneously through the single RJ45 network port
- Extract audio to 3.5 mm speakers or headphones when switching sources
- Toggle between systems instantly using the front push button
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK8 |
| Model | OZK8 |
| Type | USB C |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs. 2in 1out USB C KVM 8K Switcher: 2 x USB-C PC Input Ports, 2 x 100W PD Charge 1 x RJ45,two computers online at the same time 1 x 3.5mm jack,audio extractor 7x USB Ports |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x USB C Thunderbolt 4 KVM Switch 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) 1 x User Manual |
Questions about this item
How much heat or fan noise does the LUOM OZK8 produce when running both connected PCs all day?
The aluminium alloy shell passively dissipates heat; the unit has no fan, so it adds no audible noise during continuous operation.
Which cables or adapters must I already own to connect two USB-C laptops to the OZK8 and get 8K@60 Hz on a monitor?
Two USB-C Gen 2 cables (1.2 m included) for the laptops, plus your own DisplayPort 1.4 or HDMI 2.1 cable rated for 8K@60 Hz to the monitor.
Will the OZK8’s 7 USB 2.0 ports and 100 Mbps RJ45 work reliably with a ten-year-old keyboard, mouse and wired network?
Yes — USB 2.0 at 480 Mbps and 100 Mbps Ethernet are backward-compatible, so legacy peripherals and network gear function normally when switched between the two PCs.
