LUOM
LUOM OZK7 8K USB-C KVM Switch 2 Port 100W PD
Two-computer 8K KVM switch with one DisplayPort 1.4 or HDMI 2.1 output, 100 W power delivery and three USB 2.0 ports for shared peripherals
- TypeDisplayPort, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Switch two computers on one 8K monitor
- 100W Power Delivery keeps laptops charged while working
- Three USB 2.0 ports share keyboard mouse and peripherals
- 5mm audio jack extracts sound to speakers or headset
- Front push-button toggles PCs instantly without hotkeys
Two-computer USB-C KVM for one display

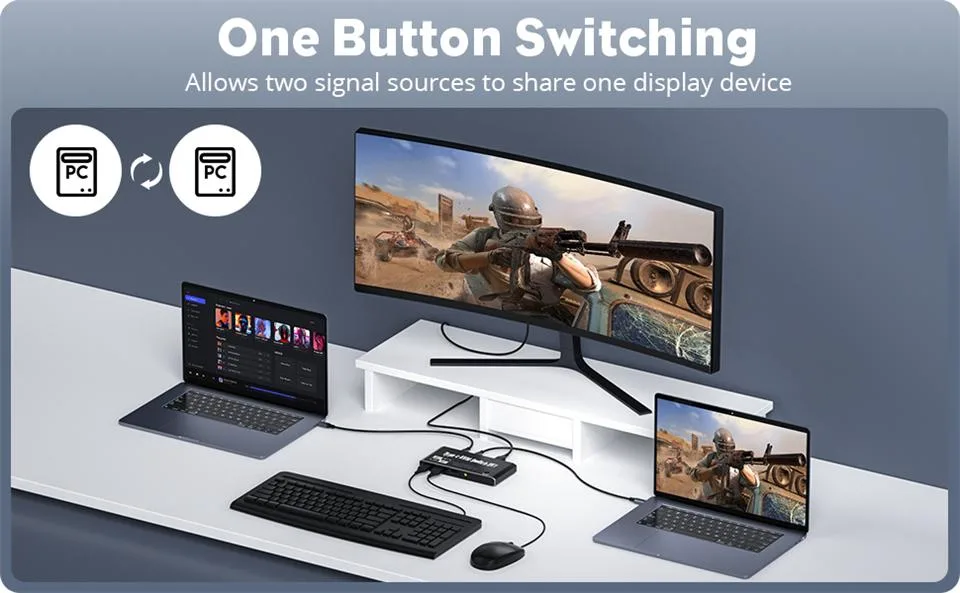

This LUOM OZK7 switch lets two USB-C laptops or desktops share a single monitor, keyboard, mouse and up to three USB 2.0 peripherals. Push-button switching and front-panel LEDs make the active system obvious. The unit draws operating power from the included USB-A-to-USB-C cable.
8K 60 Hz video over DisplayPort 1.4 or HDMI 2.1
The switch passes 7680×4320 at 60 Hz with DSC, plus 1080p up to 165 Hz and 4K up to 144 Hz. Deep-colour 8, 10 and 12-bit modes and 4:4:4 chroma are supported. Bandwidth reaches 32.4 Gbps on DisplayPort and 48 Gbps on HDMI.
Two USB-C upstream ports with 100 W PD each

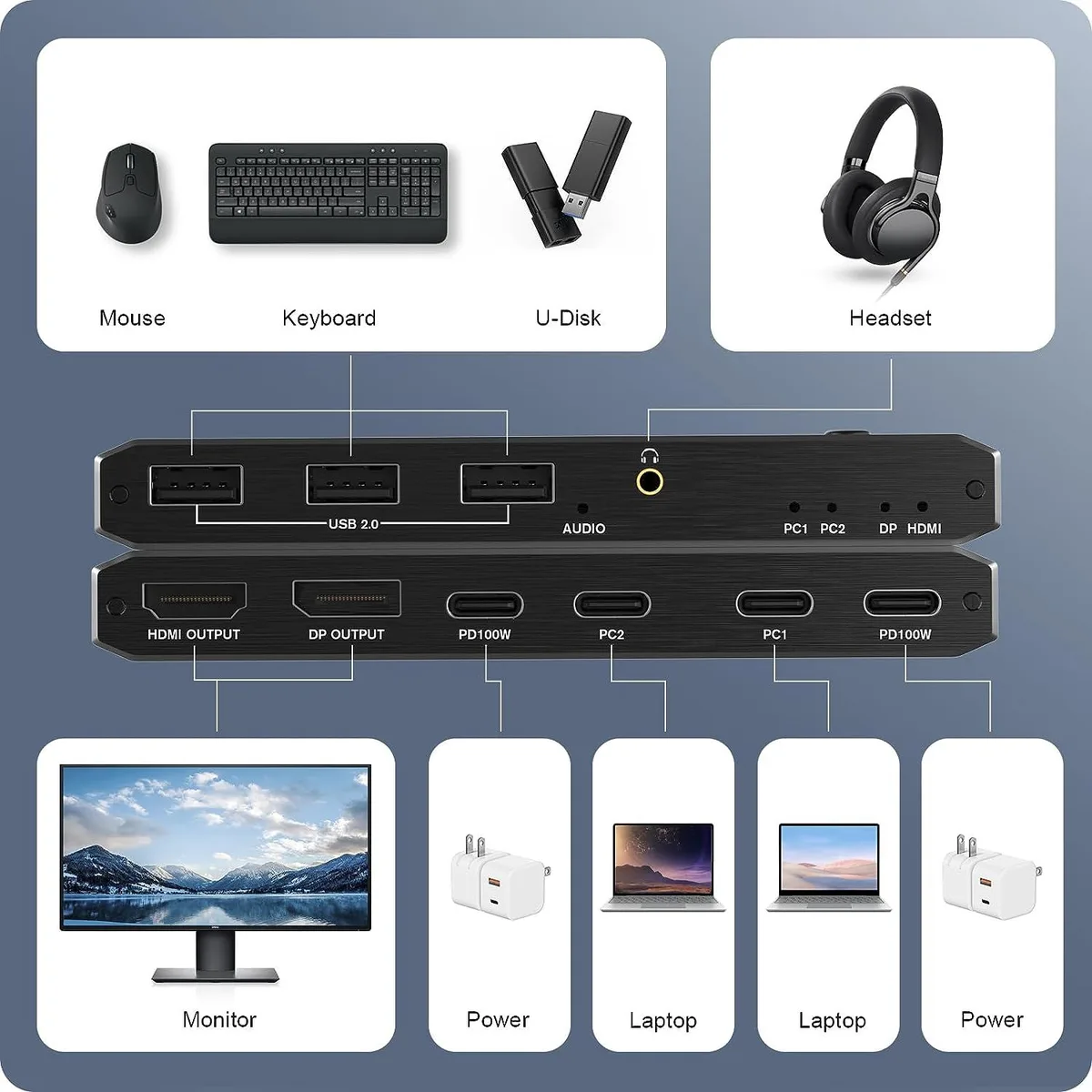

Each computer port delivers up to 100 W of power delivery so both hosts can charge while connected. One DisplayPort and one HDMI output are provided; only one monitor can be active at a time. Three USB 2.0 type-A ports and a 3.5 mm audio jack round out the shared peripheral set.
Highlights
- Switch two computers on one 8K monitor
- 100W Power Delivery keeps laptops charged while working
- Three USB 2.0 ports share keyboard mouse and peripherals
- 5mm audio jack extracts sound to speakers or headset
- Front push-button toggles PCs instantly without hotkeys
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK7 |
| Model | OZK7 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 3 x USB 2.0 Output Port,two Computers share one set,you can connect 3 x USB2.0 Outp |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
What does the 8K 60 Hz rating mean when the switch is connected to a real monitor?
The switch passes DisplayPort 1.4 at 32.4 Gbps or HDMI 2.1 at 48 Gbps, so an 8K 60 Hz image arrives at the display using DSC compression over either video port.
Which video standard limits the throughput, and what is the practical ceiling?
DisplayPort 1.4 caps at 32.4 Gbps and HDMI 2.1 at 48 Gbps; the lower of the two connected cables determines the maximum resolution and refresh rate you can achieve.
How much desk space and clearance does the unit need to sit and connect cables?
The chassis measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces, so it fits in a small footprint with room for the two 1.2 metre USB-C cables and a power cable.
